Wiring harness front f 1 e s 009 001 aam abs — Mk3 Golf Wiring Looms (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

Generation: Mk3 1994 - 1997 (RDW) Group: Wiring looms Parts: 62 Primary OEM: N 103 113 03, 357 972 841, 1E1 971 071 A

Wiring harness front f 1 e s 009 001 aam abs for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 971015 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 59 OEM part numbers across 62 catalogued positions including N 103 113 03, 357 972 841 and 1E1 971 071 A. Parts on this plate carry the engine codes 2E, AAM and ABS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 59 OEM part numbers across 62 numbered positions.

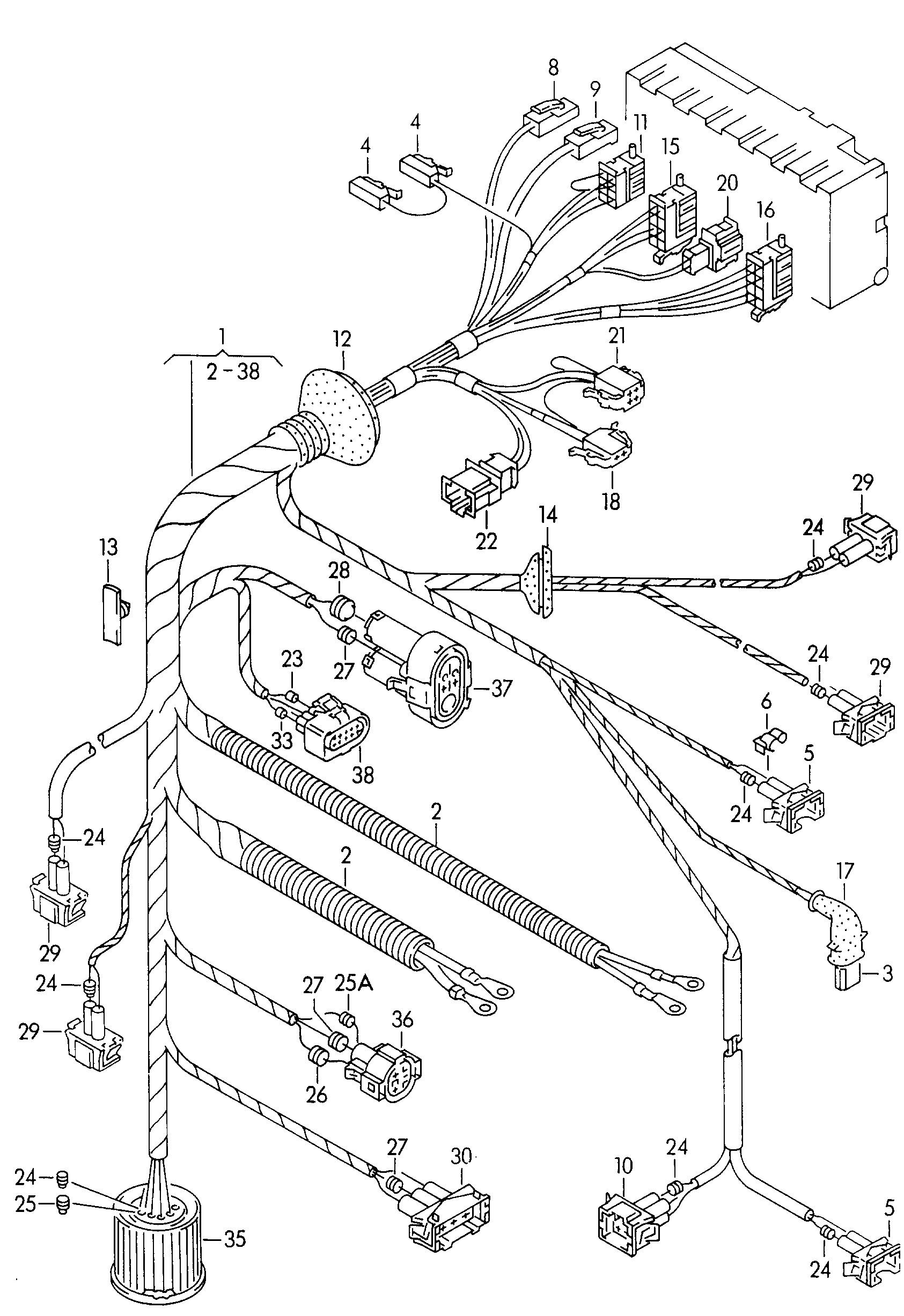

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	wiring harness: front F >> 1 E-S-009 001 AAM,ABS,2 E 2EAAMABS	—
	wiring harness: front F >> 1 E-S-009 001 AAM,ABS,2 E 2EAAMABS	—
-	Insulating tape 0,15 X 19 X 10 0,15 X 19 X 10	N 103 113 03
-	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
(1)	wiring harness: front 2 E 2E	1E1 971 071 A
(1)	wiring harness: front AAM,ABS AAMABS	1E1 971 071
(1)	wiring harness: front 2 E 2E	1E2 971 071 A
(1)	wiring harness: frontfor vehicles with air condit.for models withtowing facility Automatic+2 E	1E2 971 071 D
(1)	wiring harness: frontfor vehicles with air condit.orfor automatic gearbox 2 E 2E	1E2 971 071 C
(1)	wiring harness: frontfor vehicles with air condit.for automatic gearboxfor models withtowing facility 2 E 2E	1E1 971 071 D
(1)	wiring harness: frontfor vehicles with air condit.orfor automatic gearbox 2 E 2E	1E1 971 071 C
(1)	wiring harness: front AAM,ABS AAMABS	1E2 971 071
(1)	wiring harness: frontfor vehicles with air condit. AAM,ABS AAMABS	1E2 971 071 B
(18)	flat connector housing Connection piece Air conditioningfor speed increase 2 E 2E	191 972 711
(30)	Flat contact housing Coupling elementgovernorfor vehicles with electroni-cally regulated air condit. 2 E 2E	191 972 776
(30)	Flat contact housing Connection piece Radiator fan AAM,ABS AAMABS	1H0 906 233
(30)	Flat contact housing Connection piece Control unit for air condit.and Radiator fan 2 E 2E	1H0 973 204
(33)	Bungs 9,0 2 E 9,0 2E	357 972 842
(37)	Flat contact housing Connection piece Control unit for air condit.and Radiator fan 2 E 2E	1H0 973 204
(38)	Flat contact housing Connection piece Control unit for air condit. 2 E 2E	1H0 973 763
(8)	Flat contact housing Connection piece Water level switch also use: 357 972 841 2 E 357 972 841 2E	357 972 753
(8)	Flat contact housing Connection piece Water level switch 2 E 2E	357 906 752
1	wiring harness: frontfor vehicles with air condit. AAM,ABS AAMABS	1E1 971 071 B
10	Flat contact housing Connection piece Switchfor air conditioner	357 919 754
11	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics C C	357 955 968
12	Grommet 46/10,5 46/10,5	1H0 971 840
13	Cable holder	1H0 971 848 F
13	Bundling clip f wiring harness	4B0 971 848
14	Grommet 33,5,6/10 33,5,6/10	1H0 971 913 C
15	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics A 2 A 2	357 971 968
16	Flat contact housing withcontact locking mechanism Slot:Connection piececentral electrics A 1 A 1	357 971 968 A
17	Protective cap	867 972 525 A
18	Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712	1J0 972 702
18	Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712	1J0 972 702
18	Flat contact housing Connection piece Switchfor speed increase air condit.	191 972 702
2	* Corrug. tubes, T-pieces,* clips, holders, grommets,* cable ties, insulating* hose, wiring,* single wires and seals* see special catalogue:* ELECTRICAL* CONNECTING ELEMENTS	—
2	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
20	flat connector housing Coupling element Combi-instrument Turn signal indicator	191 972 712
21	Flat contact housing Connection pieceplug housingdashboard	191 972 722
21	Flat contact housing Connection pieceplug housingdashboard	1J0 972 722
22	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
22	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
23	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
24	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
25	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
25A	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
26	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
27	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
28	single wiring seal for wire cross section: 16,2 X 15,06,0 16,2 X 15,06,0	357 972 744 A
29	flat contact housing withgasket Connection piece Electromagnetic coupling air condit.Turn signal indicatorfor electric pump Windscreen washer system	357 972 752
3	Flat contact housing Connection piececontactsbrake fluid	443 906 231
33	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
33	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
35	round connector housing Coupling element Wire set	1H0 973 103 A
36	flat contact housing withgasket Connection piecetemperature switch Radiator fan	1H0 973 203
37	flat contact housing withgasket Connection piece Control unit for air condit.and Radiator fan AAM,ABS AAMABS	1H0 973 204 A
38	Flat contact housing withcontact locking mechanism Connection piece Control unit for air condit.	3A0 973 715
4	Flat contact housing Connection piece Potential distributor Hall sensor Potential distributor	701 906 231
5	flat contact housing withgasket Connection piecetemperature switchby-pass air cut-off valve External temperature sensorfor air conditioner 2 E 2E	037 906 240
6	Bracket protective cover	357 906 732 A
8	Flat contact housing Slot:Connection piececentral electrics Z 2 Z 2	357 915 971 A
9	Flat contact housing Slot:Connection piececentral electrics 30,30 B 30,30 B	357 915 971 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Engine codes on this plate: 2E, AAM, ABS
Factory group: 06 Wiring looms
Factory subgroup: 971015
