Wiring harness front — Mk3 Golf Wiring Looms (1995)

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1995 (RDW) Group: Wiring looms Parts: 36 Primary OEM: N 103 113 04, 357 972 841, N 103 113 03

Wiring harness front for the Volkswagen Golf Mk3 (1995): factory exploded diagram 971018 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 33 OEM part numbers across 36 catalogued positions including N 103 113 04, 357 972 841 and N 103 113 03. Parts on this plate carry the engine code 1Y. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 36 numbered positions.

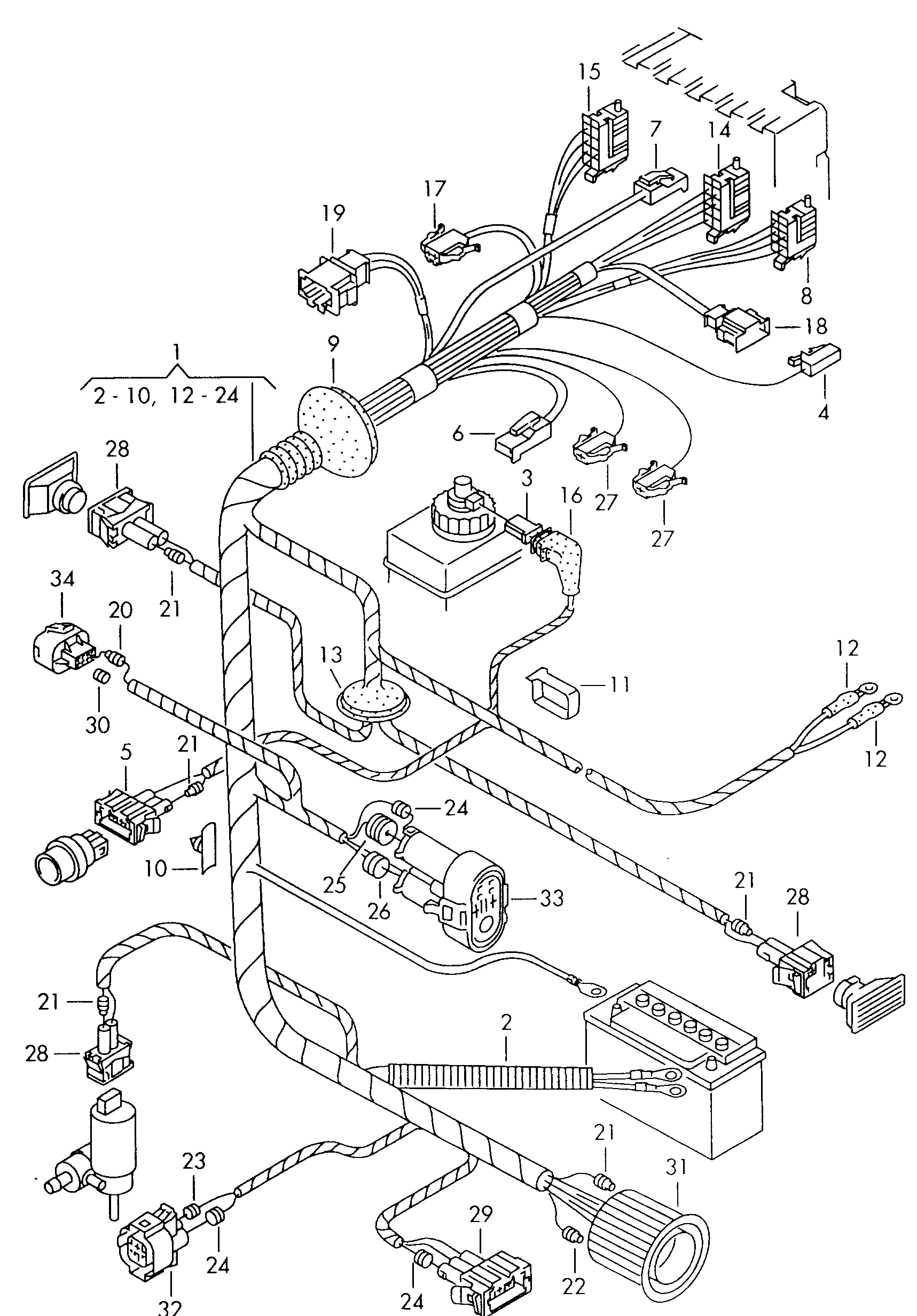

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	wiring harness: front Connection piecewiring harness: front F >> 1 H-SW 122 920 F >> 1 H-SP 080 000F >> 1 H-SB 029 454------------------------------F 1 H-SW 122 921>>F 1 H-SP 080 001>>F 1 H-SB 029 455>> see illustration:------------------------------ diesel eng./ecomatic:1 Y 1Y	—
	wiring harness: front F >> 1 H-SW 122 920 F >> 1 H-SP 080 000*F >> 1 H-SB 029 454 diesel eng./ecomatic:1 Y 1Y	—
-	Insulating tape 19 19	N 103 113 04
-	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
-	Insulating tape 0,15 X 19 X 10 0,15 X 19 X 10	N 103 113 03
(1)	wiring harness: front	1H2 971 071 CS
(1)	No longer available	—
(29)	Flat contact housing Connection piece Radiator fan	1H0 906 233
1	wiring harness: front	1H1 971 071 AR
10	Cable holder	1H0 971 848 F
10	Bundling clip f wiring harness	4B0 971 848
11	Clip Connection piece Side member 20 X 28 20 X 28	1H1 971 848
12	Grommet 3 X 25 3 X 25	803 971 892
13	Grommet	1H0 971 913 C
14	Flat contact housing withcontact locking mechanism Slot:central electrics A 2 A 2	357 971 968
15	Flat contact housing withcontact locking mechanism Slot:central electrics A 1 A 1	357 971 968 A
16	Protective cap Connection piece Water level switch	867 972 525 A
17	Flat contact housing Coupling elementharness for engine compartment	191 972 702
17	Flat contact housing withcontact locking mechanism Coupling elementharness for engine compartment	1J0 972 702
18	flat connector housing Coupling element Combi-instrument Turn signal indicator	191 972 712
19	Flat contact housing Coupling element Wiring harness for headlightrange control	1J0 972 732
19	Flat contact housing Coupling element Wiring harness for headlightrange control	191 972 732
27	Flat contact housing Coupling elementwiring harness for steeringcolumn combination switchradioswitch for lighting	191 972 751
28	flat contact housing withgasket Connection piece Turn signal indicator Windscreen washer system	357 972 752
3	Flat contact housing Connection pieceemergency light switchbrake fluid	443 906 231
31	round connector housing Coupling element Wire set	1H0 973 103 A
32	flat contact housing withgasket Connection piecethermal switch	1H0 973 203
33	Flat contact housing Connection piece Control unit Radiator fan	1H0 973 204
34	flat contact housing withgasket Connection piece Control unit for light andauxiliary battery	1H0 973 208
4	Flat contact housing Connection piece Potential distributor	701 906 231
5	Flat contact housing Connection piece Water level switch	357 906 752
5	Flat contact housing Connection piece Water level switch also use: 357 972 841 357 972 841	357 972 753
6	Flat contact housing Slot:central electrics Z 2 Z 2	357 915 971 A
7	Flat contact housing Slot:central electrics 30,30 B 30,30 B	357 915 971 B
8	Flat contact housing withcontact locking mechanism Slot:central electrics C C	357 955 968
9	Grommet 46/10,5 46/10,5	1H0 971 840

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: 1Y
Variant tags: diesel
Factory group: 06 Wiring looms
Factory subgroup: 971018
