Wiring harness front — Mk3 Golf Wiring Looms (1995)

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1995 (RDW) Group: Wiring looms Parts: 89 Primary OEM: 357 972 841, 1H1 971 071 BQ, 1H1 971 071 BR

Wiring harness front for the Volkswagen Golf Mk3 (1995): factory exploded diagram 971015 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 89 OEM part numbers including 357 972 841, 1H1 971 071 BQ and 1H1 971 071 BR. Parts on this plate carry the engine codes 1Y, 2E, AAA, AAM, AAZ, ABD, ABF and ABS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 89 OEM part numbers across 89 numbered positions.

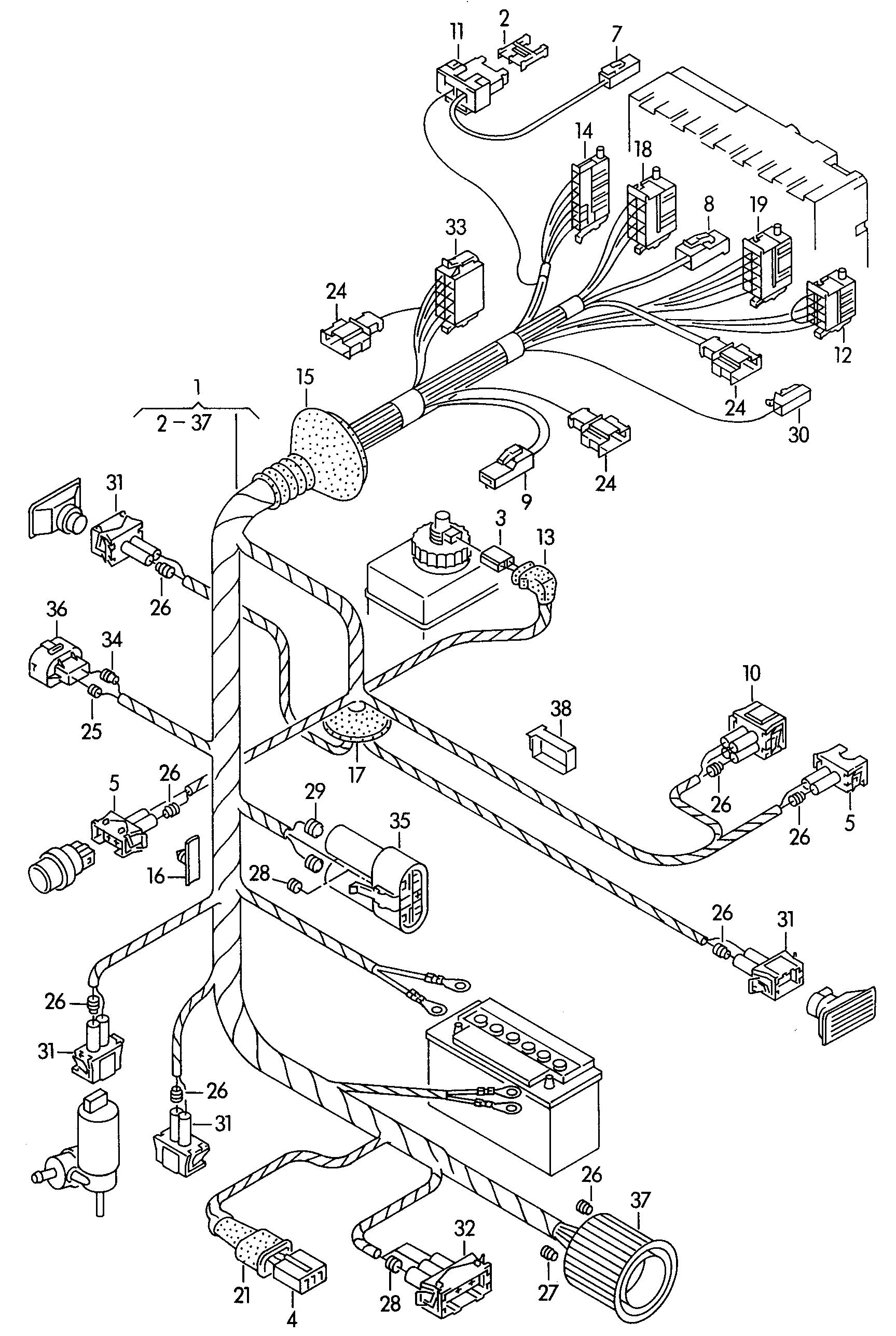

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. Automatic+2 E	1H1 971 071 BQ
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit.for models withtowing facilityfor vehicle use in warmclimates Automatic+2 E	1H1 971 071 BR
(1)	wiring harness: front Diesel eng.+1 Y 1Y	1H1 971 071 BA
(1)	wiring harness: frontand/orfor models withtowing facilityfor vehicle use in warmclimates Diesel eng.+1 Y 1Y	1H1 971 071 BD
(1)	wiring harness: front Diesel eng.+1 Z	1H1 971 071 CQ
(1)	wiring harness: frontfor vehicles with air condit. Diesel eng.+1 Z	1H1 971 071 BK
(1)	wiring harness: front Diesel eng.+AAZ	1H1 971 071 BD
(1)	wiring harness: frontand/orfor models withtowing facilityfor vehicle use in warmclimates Diesel eng.+AAZ	1H1 971 071 BE
(1)	wiring harness: frontfor vehicles with air condit. Diesel eng.+AAZ	1H1 971 071 BJ
(1)	wiring harness: frontand/orfor models withtowing facilityfor vehicle use in warmclimates Automatic+AAA	1H1 971 071 BC
(1)	wiring harness: front hire car TAXIauthority AAA	1H1 971 071 BC
(1)	wiring harness: frontfor vehicles with air condit. Automatic+2 E	1H2 971 071 BL
(1)	wiring harness: frontfor vehicles with air condit.for models withtowing facilityfor vehicle use in warmclimates Automatic+2 E	1H2 971 071 BM
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. Automatic+2 E	1H2 971 071 BQ
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit.for models withtowing facilityfor vehicle use in warmclimates Automatic+2 E	1H2 971 071 BR
(1)	wiring harness: front Diesel eng.+AAZ	1H2 971 071 BD
(1)	wiring harness: frontfor models withtowing facilityfor vehicle use in warmclimates Diesel eng.+AAZ	1H2 971 071 BE
(1)	wiring harness: front Diesel eng.+1 Y 1Y	1H2 971 071 CB
(1)	wiring harness: frontfor models withtowing facilityfor vehicle use in warmclimates Diesel eng.+1 Y 1Y	1H2 971 071 BD
(1)	wiring harness: frontfor vehicles with air condit. Diesel eng.+AAZ	1H2 971 071 BJ
(1)	wiring harness: front Diesel eng.+1 Z	1H2 971 071 CQ
(1)	wiring harness: front automatic/Air cond.+2 E	1H1 971 071 BM
(1)	wiring harness: frontfor models withtowing facilityfor vehicle use in warmclimates Automatic+AAA	1H2 971 071 BC
(1)	wiring harness: frontfor vehicles with air condit. Diesel eng.+1 Z	1H2 971 071 BK
(1)	wiring harness: frontfor vehicles with air condit. ABF ABF	1H2 971 071 BP
(1)	wiring harness: front ABF ABF	1H1 971 071 BA
(1)	wiring harness: front 2 E 2E	1H1 971 071 BA
(1)	wiring harness: frontfor vehicles with air condit. AAA AAA	1H2 971 071 BN
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. AAA AAA	1H2 971 071 BS
(1)	wiring harness: frontfor vehicles with air condit. 2 E 2E	1H2 971 071 BL
(1)	wiring harness: front ABF ABF	1H2 971 071 CB
(1)	wiring harness: front hire car TAXIauthority Diesel eng.+1 Y,AAZ AAZ	1H1 971 071 BE
(1)	wiring harness: front AAM,ABD,ABS,ABU AAMABDABSABU	1H1 971 071 CA
(1)	wiring harness: front hire car TAXIauthority Diesel eng.+1 Y,AAZ AAZ	1H2 971 071 BE
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. 2 E 2E	1H2 971 071 BQ
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. 2 E 2E	1H1 971 071 BQ
(1)	wiring harness: frontfor vehicles with air condit. AAM,ABS,ABU AAMABSABU	1H2 971 071 BG
(1)	wiring harness: frontfor vehicles with air condit. AAM,ABS,ABU AAMABSABU	1H1 971 071 BG
(1)	wiring harness: frontfor vehicles with air condit. 2 E 2E	1H1 971 071 BL
(1)	wiring harness: front 2 E 2E	1H2 971 071 BA
(1)	wiring harness: frontfor vehicles with air condit. ABF ABF	1H1 971 071 BP
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. AAA AAA	1H1 971 071 BS
(1)	wiring harness: front AAA AAA	1H2 971 071 BB
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. ABF ABF	1H1 971 071 BT
(1)	wiring harness: frontfor vehicles with air condit. AAA AAA	1H1 971 071 BN
(1)	wiring harness: frontfor vehicles with electroni-cally regulated air condit. ABF ABF	1H2 971 071 BT
(1)	wiring harness: front AAA AAA	1H1 971 071 BB
(1)	wiring harness: front AAM,ABD,ABS,ABU AAMABDABSABU	1H2 971 071 CA
(11)	relay plate diesel eng.	161 937 501 B
(11)	fuse box forflat fuses air condit.	1H0 937 530
(13)	Protective cap	867 972 525 A
(14)	Flat contact housing Connection piece Wiper motor	171 971 835 A
(15)	Grommet 46/10,5 46/10,5	1H0 971 840
(16)	Bundling clip f wiring harness	4B0 971 848
(16)	Cable holder	1H0 971 848 F
(24)	Flat contact housing automatic	191 972 701
(24)	Flat contact housing Connection piece Actuatorfor vehicles with electroni-cally regulated air condit.	191 972 776
(24)	flat connector housing Connection piecespeed sensor	191 972 711
(3)	Flat contact housing Connection piece Potential distributor	701 906 231
(32)	Flat contact housing Connection piece Radiator fan	1H0 906 233
(33)	Flat contact housing Coupling elementwiring harness: front left	191 972 722
(33)	Flat contact housing Coupling elementwiring harness: front left	1J0 972 722
(35)	Flat contact housing	1H0 973 204
(36)	Flat contact housing air condit.	1H0 973 763
(36)	Flat contact housing withcontact locking mechanism air condit.	3A0 973 715
(36)	Flat contact housing air condit.	3A0 973 712
(4)	flat contact housing withgasket Connection piecethermal switch Radiator fan	1H0 973 203
(5)	Flat contact housing Connection piece Water level switch	357 906 752
(5)	Flat contact housing Connection piece Water level switch also use: 357 972 841 357 972 841	357 972 753
10	Flat contact housing Connection piecetemperature switch Switch 2/15 BAR 2/15 BAR	357 919 754
11	fuse box forflat fuses air condit.	161 937 501
12	Flat contact housing withcontact locking mechanism Slot: C C	357 955 968
14	Flat contact housing withcontact locking mechanism Slot: N air condit. N	357 959 968 B
15	Grommet 12,5 X 46 air condit. 12,5 X 46	1H0 971 840 B
17	Grommet 33,5,6/10 33,5,6/10	1H0 971 913 C
18	Flat contact housing withcontact locking mechanism Slot: A 2 A 2	357 971 968
19	Flat contact housing withcontact locking mechanism Slot: A 1 A 1	357 971 968 A
2	flat fuse 19/2 x 5 AMP AMP	N 017 131 15
24	flat connector housing Connection piece Potential distributor Hall sensorspeed sensor Instrument housing air condit.	191 972 712
3	Flat contact housing Switchbrake fluid	443 906 231
30	Flat contact housing Connection pieceground connector	3A0 972 751 H
31	flat contact housing withgasket Connection piece Pump Turn signal indicator Spray nozzle, heated	357 972 752
37	round connector housing Connection pieceharness for vehicle lighting	1H0 973 103 A
38	Clip Connection piece Side member 23 X 46 23 X 46	1H0 971 848 M
5	flat contact housing withgasket Connection piece Switch External temperature sensorby-pass air cut-off valve Radiator fan air condit.diesel eng.	037 906 240
7	Flat contact housing air condit.	357 907 971 B
8	Flat contact housing Slot: Z 2 Z 2	357 915 971 A
9	Flat contact housing Slot: 30 30	357 915 971 B
