Wiring harness interior — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 53 Primary OEM: 191 972 703, 191 972 774, 191 972 722

Wiring harness interior for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972042 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 53 OEM part numbers including 191 972 703, 191 972 774 and 191 972 722. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 53 OEM part numbers across 53 numbered positions.

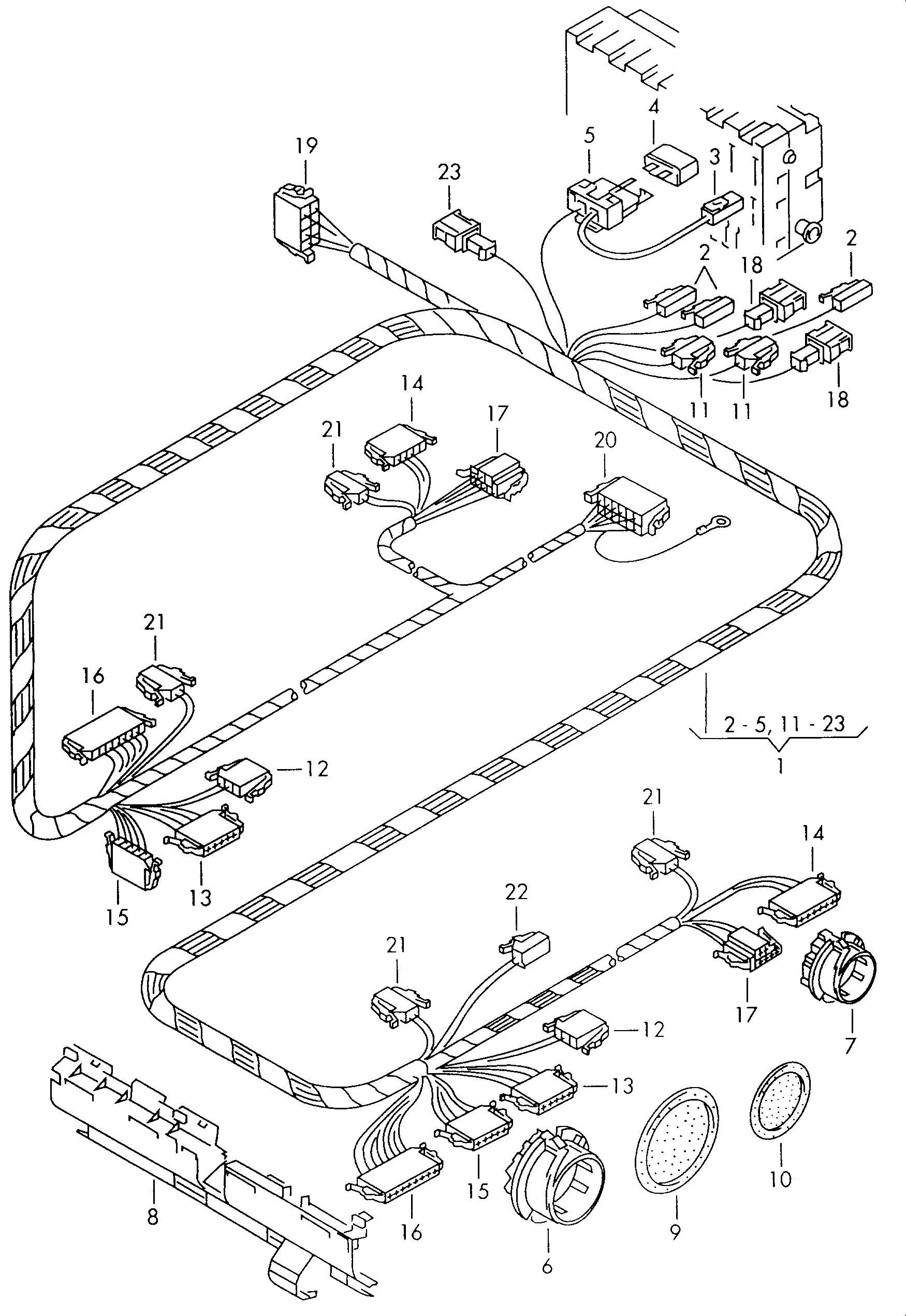

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Flat contact housing Coupling element Wiring set for engine	191 972 703
-	Flat contact housing Connection piece Control unit for anti-theftalarm	191 972 774
-	Flat contact housing Coupling element Wiring set for anti-theftalarm system	191 972 722
(1)	wiring harness for interiorfor models with electricallyoperated windows	1H6 971 139 BP
(1)	wiring harness for interiorfor models with electricallyoperated windowsfor vehicles with alarm system	1H6 971 139 BR
(1)	wiring harness for interior	1H1 971 139 G
(1)	wiring harness for interiorfor vehicles with alarm system	1H1 971 139 L
(1)	wiring harness for interiorfor models with electricallyoperated windows	1H1 971 139 J
(1)	wiring harness for interior For vehicles without slidingroof	1H0 971 139 C
(1)	wiring harness for interior	1H6 971 139 CA
(1)	wiring harness for interiorfor models with electricallyoperated windows	1H6 971 139 BT
(1)	wiring harness for interiorfor models with electricallyoperated windowsfor vehicles with alarm system	1H6 971 139 CB
(1)	wiring harness for interior	1H2 971 139 D
(1)	wiring harness for interiorfor vehicles with alarm system	1H2 971 139 G
(1)	wiring harness for interiorfor models with electricallyoperated windows	1H2 971 139 E
(1)	wiring harness for interiorfor models with electricallyoperated windowsfor vehicles with alarm system	1H2 971 139 H
(1)	wiring harness for interiorfor models with electricallyoperated windowsfor vehicles with alarm system	1H1 971 139 N
(1)	wiring harness for interiorfor models with electricallyoperated windows For vehicles without slidingroof	1H0 971 139 D
(1)	wiring harness for interior	1H6 971 139 BQ
(11)	Flat contact housing Coupling element Cable set fortailgate	191 972 702
(11)	Flat contact housing Coupling element Wiring set for engine	1J0 972 703
(11)	Flat contact housing Coupling element Wiring set for engine	1J0 972 924
(11)	Flat contact housing withcontact locking mechanism Coupling element Cable set fortailgate	1J0 972 702
(17)	flat connector housing Coupling element Combi-instrument	191 972 713
(17)	Flat contact housing Coupling element Wiring set for anti-theftalarm system	1J0 972 722
(20)	Flat contact housing Connection piece Control unit for anti-theftalarm	535 972 726
(20)	Flat contact housing Connection piece Control unit for anti-theftalarm	3B0 972 726
(20)	Flat contact housing Connection piece Control unit for anti-theftalarm	1J0 972 774
(20)	Flat contact housing Coupling element Rear wiring set	191 972 733
(4)	flat fuse 19/2 x 5	N 017 131 11
(5)	fuse box forflat fuses	1H0 937 530
(5)	fuse box forflat fuses	161 937 501
(6)	flat contact housing mountinga-pillar Connection piece Wiring set for door	3A0 959 741 A
(7)	flat contact housing mountingb-pillar Connection piece Wiring set for door	1H4 959 741 C
(8)	Cable guidefor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H0 971 048
10	Bungsb-pillar 41 41	1H4 971 908 A
12	Flat contact housing Connection piecea-pillar	1H0 972 703
13	Flat contact housing Connection piecea-pillar	1H0 972 705
14	Flat contact housing Connection pieceb-pillar	1H4 972 705
15	Flat contact housing Connection piecea-pillar	191 972 705
16	Flat contact housing Connection piecea-pillar	1H0 972 708
17	Flat contact housing Connection pieceb-pillar	1H4 972 709
19	Flat contact housing Coupling element Adapter cable loomwindow regulator electricallyoperated	191 972 724
2	Flat contact housing Connection piece Potential distributor	701 906 231
20	Flat contact housing withcontact locking mechanism Connection piece Pumpcentral locking system	1J0 972 726
20	Flat contact housing Connection piece Pumpcentral locking system	191 972 726
21	Flat contact housing Connection piecea-pillarb-pillar	191 972 751
22	Flat contact housing Connection piece Potential distributor	3A0 972 751 H
3	Flat contact housing Slot: U 2,Y U 2,Y	357 907 971 B
4	Thermal fuse 30 A 30 A	443 937 105 A
5	bracket for thermo switch	191 937 501
8	Cable guidefor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H0 971 047
9	Bungsa-pillar 70 70	1H0 971 908
