Wiring harness steering column combination switchwiring — Mk3 Golf Wiring Looms (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

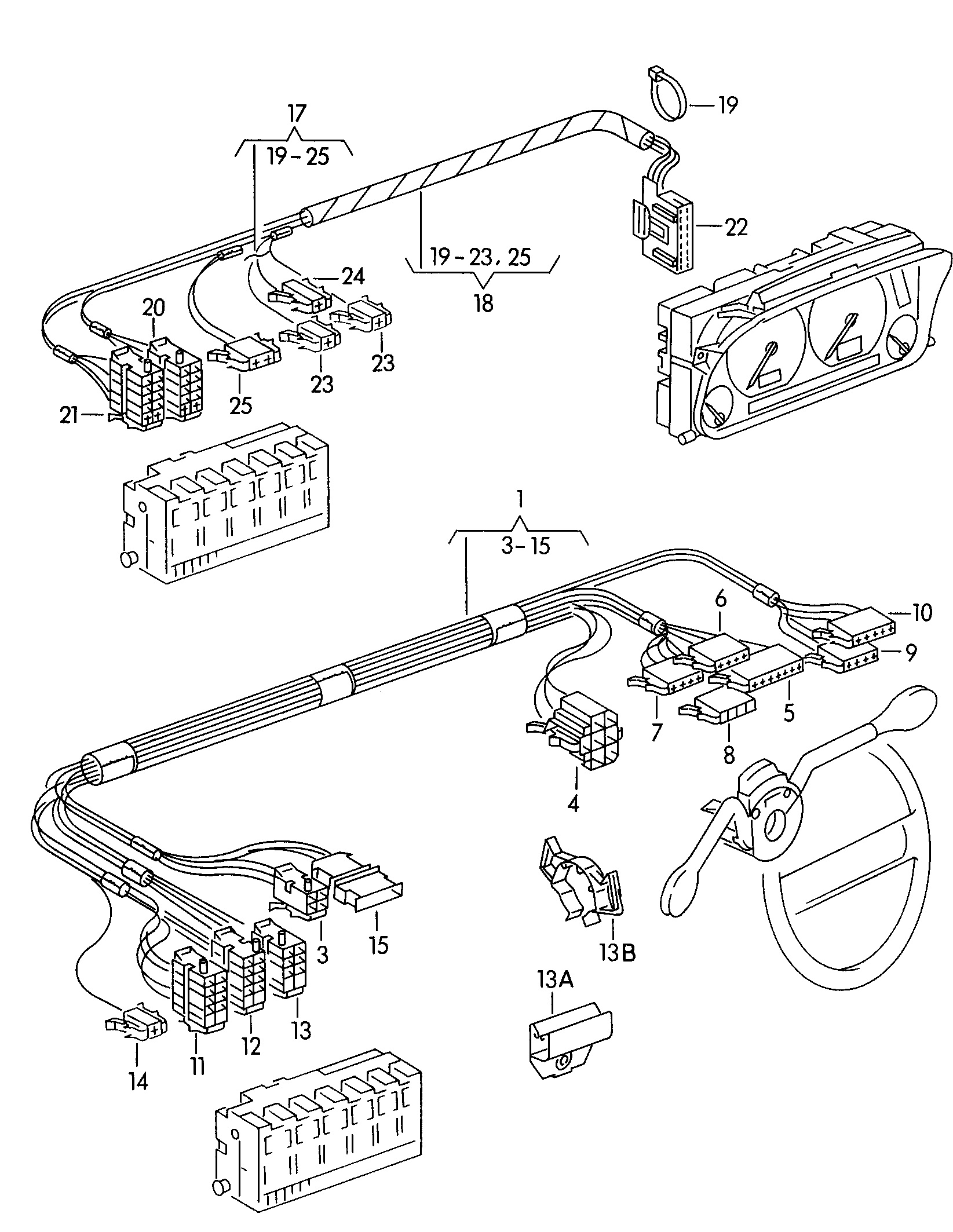

Wiring harness steering column combination switchwiring for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971084 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 54 OEM part numbers including 357 972 531, 1H1 971 063 and 1H2 971 063 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 54 OEM part numbers across 54 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | contact carrier Possible single wire: 000 979 002 000 979 002 | 357 972 531 |
| (1) | wiring harness for steeringcolumn combination switch For vehicles with twinheadlights ecomatic | 1H1 971 063 |
| (1) | wiring harness for steeringcolumn combination switch For vehicles with twinheadlights ecomatic | 1H2 971 063 B |
| (1) | wiring harness for steeringcolumn combination switch ecomatic | 1H2 971 063 A |
| (1) | wiring harness for steeringcolumn combination switchfor high volume horn | 1H0 971 063 BG |
| (1) | wiring harness for steeringcolumn combination switchorfor vehicles with multifunction indicator | 1H0 971 063 AS |
| (1) | wiring harness for steeringcolumn combination switchfor vehicles with Belt latch with warningcontactbuzzerand/orfor vehicles with multifunction indicatorfor models withcruise control system | 1H0 971 063 AT |
| (1) | wiring harness for steeringcolumn combination switchfor models withcruise control systemorfor vehicles with TAXI | 1H0 971 063 AR |
| (1) | wiring harness for steeringcolumn combination switch For vehicles with twinheadlightsand/or Belt latch with warningcontactbuzzerfor models withcruise control systemfor vehicles with multifunction indicator | 1H0 971 063 BC |
| (1) | wiring harness for steeringcolumn combination switch For vehicles with city drivinglight | 1H0 971 063 AS |
| (1) | wiring harness for steeringcolumn combination switch For vehicles with city drivinglight For vehicles with twinheadlights | 1H0 971 063 CA |
| (1) | wiring harness for steeringcolumn combination switchfor models withday driving headlights | 1H0 971 063 AF |
| (1) | wiring harness for steeringcolumn combination switch ecomatic | 1H0 971 063 BF |
| (1) | wiring harness for steeringcolumn combination switch For vehicles with twinheadlights "J.." | 1H0 971 063 BC |
| (13A) | Bracket Connection piecesteering col. combi switchsteering tubefor veh. with mech. heightadjustable steering column | 1H0 971 843 B |
| (15) | flat connector housing Connection piece For vehicles with city drivinglightfor models withday driving headlights | 191 972 761 |
| (17) | wiring harness for instrumenthousing | 1H0 971 064 P |
| (17) | wiring harness for instrumenthousingfor vehicles with Belt latch with warningcontact | 1H0 971 064 N |
| (17) | wiring harness for instrumenthousing diesel eng. | 1H0 971 064 N |
| (17) | wiring harness for instrumenthousing ecomatic | 1H0 971 064 Q |
| (19) | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| (22) | Flat contact housing ecomatic | 1H0 972 529 |
| (24) | Flat contact housing Connection piece Belt latch with warningcontactbuzzerradio | 191 972 701 |
| (25) | Flat contact housing ecomatic | 1J0 972 722 |
| (25) | Flat contact housing Connection pieceharness for vehicle lighting | 191 972 703 |
| (25) | Flat contact housing Connection pieceharness for vehicle lighting | 1J0 972 924 |
| (25) | Flat contact housing Connection pieceharness for vehicle lighting | 1J0 972 703 |
| (25) | Flat connector housing withcontact locking mechanism Connection piece Wiring set for dash panel TAXI | 1J0 972 712 |
| (25) | flat connector housing Connection piece Wiring set for dash panel TAXI | 191 972 712 |
| (25) | Flat contact housing Connection piecefor vehicles with anti-theftalarm system and imobiliser also use: 1 H 0 972 762 1 H 0 972 762 | 1J0 972 752 |
| (25) | Flat contact housing Connection piecefor vehicles with anti-theftalarm system and imobiliser also use: 1 H 0 972 762 1 H 0 972 762 | 191 972 752 |
| (25) | Flat contact housing ecomatic | 191 972 722 |
| 10 | Flat contact housing Connection pieceswitch for lighting | 1H0 953 637 |
| 11 | Flat contact housing withcontact locking mechanism Slot: H 1 H 1 | 357 953 968 |
| 12 | Flat contact housing withcontact locking mechanism Slot: J J | 357 953 968 A |
| 13 | Flat contact housing withcontact locking mechanism Slot: H 2 H 2 | 357 953 968 B |
| 13B | Cable holder Connection piecesteering tube | 1H0 971 843 |
| 14 | Flat contact housing Connection piecebuzzer | 191 972 701 |
| 15 | flat connector housing Coupling elementwiring harness forcruise control system | 191 972 714 |
| 20 | Flat contact housing Slot: U 2 U 2 | 357 919 971 C |
| 21 | Flat contact housing Slot: U 1 U 1 | 357 919 971 D |
| 22 | Flat contact housing | 191 972 529 |
| 22 | Handle shell also use: 357 972 531 357 972 531 | 191 972 530 B |
| 23 | Flat contact housing Connection pieceharness for engine compartmentwiring harness for automatic | 191 972 701 |
| 24 | Flat contact housing Connection pieceharness for engine compartment | 191 972 701 |
| 25 | Flat contact housing withcontact locking mechanism Connection pieceharness for vehicle lighting | 1J0 972 702 |
| 25 | Flat contact housing Connection pieceharness for vehicle lighting | 191 972 702 |
| 3 | Flat contact housing Slot: V V | 357 907 968 |
| 4 | Flat contact housing Connection piece Ignition/starter switch | 357 953 631 |
| 5 | Flat contact housing Connection piece Turn signal indicator | 1H0 953 633 |
| 6 | Flat contact housing Connection piece Wiper and washer system forrear window | 1H0 953 633 A |
| 7 | Flat contact housing Connection piece Cruise-control system | 1H0 953 634 |
| 8 | Flat contact housing Connection piecemulti-function indicator | 1H0 953 634 A |
| 9 | Flat contact housing Connection piece Wiper motor | 1H0 953 635 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 06 Wiring looms
- Factory subgroup
- 971084
