Wiring light seat heating jetta — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 22 Primary OEM: 1HM 971 381 B, 1HM 971 381 C, 1H0 971 381 G

Wiring light seat heating jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 972032 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 20 OEM part numbers across 22 catalogued positions including 1HM 971 381 B, 1HM 971 381 C and 1H0 971 381 G. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 20 OEM part numbers across 22 numbered positions.

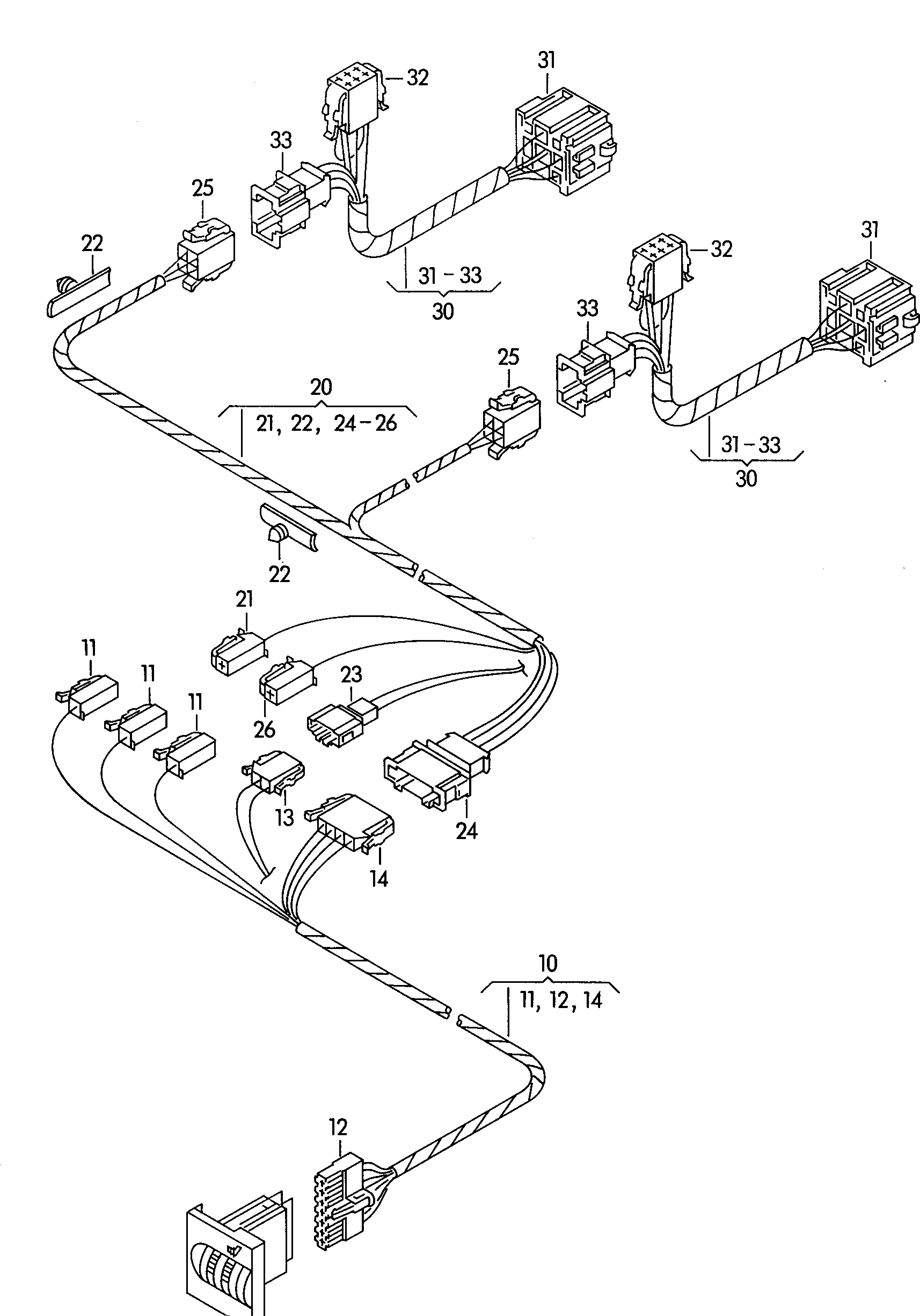

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring light for seat heating JETTA GLX,GLS	—
	Wiring light for seat heating JETTA	—
(10)	Wiring light for seat heating Potentiometer F 1 H-T-084 501>>*	1HM 971 381 B
(20)	Wiring light for seat heating F 1 H-T-084 501>>*	1HM 971 381 C
(20)	Wiring light for seat heating F 1 H-P-004 605>> 1 H-T-084 500*	1H0 971 381 G
10	Wiring light for seat heating Potentiometer use if required:** see current flow diagram F >> 1 H-T-084 500 1 J 0 972 702 1 J 0 972 702	1H1 971 381
11	Flat contact housing	701 906 231
12	Flat contact housing	321 971 946
13	Flat contact housing	191 972 702
13	Flat contact housing withcontact locking mechanism	1J0 972 702
14	Flat contact housing	1J0 972 704
20	Wiring light for seat heating F >> 1 H-P-004 604*	1H0 971 381 C
21	Flat contact housing	701 906 231
22	Bundling clip f wiring harness	4B0 971 848
23	flat connector housing	191 972 712
24	flat connector housing	191 972 714
25	Flat contact housing	1J0 972 722
26	Flat contact housing	3A0 972 751 H
30	Wiring light for seat heating Relay	1H0 971 382
31	relay plate	161 937 501 B
32	Flat contact housing	191 972 723
33	Flat contact housing	1J0 972 732

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 06 Wiring looms
Factory subgroup: 972032
