Wiring light seat heatingwiring harness warning time relay — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 29 Primary OEM: 1H0 971 381 E, 701 906 231, 321 971 946

Wiring light seat heatingwiring harness warning time relay for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972032 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 29 OEM part numbers including 1H0 971 381 E, 701 906 231 and 321 971 946. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 29 OEM part numbers across 29 numbered positions.

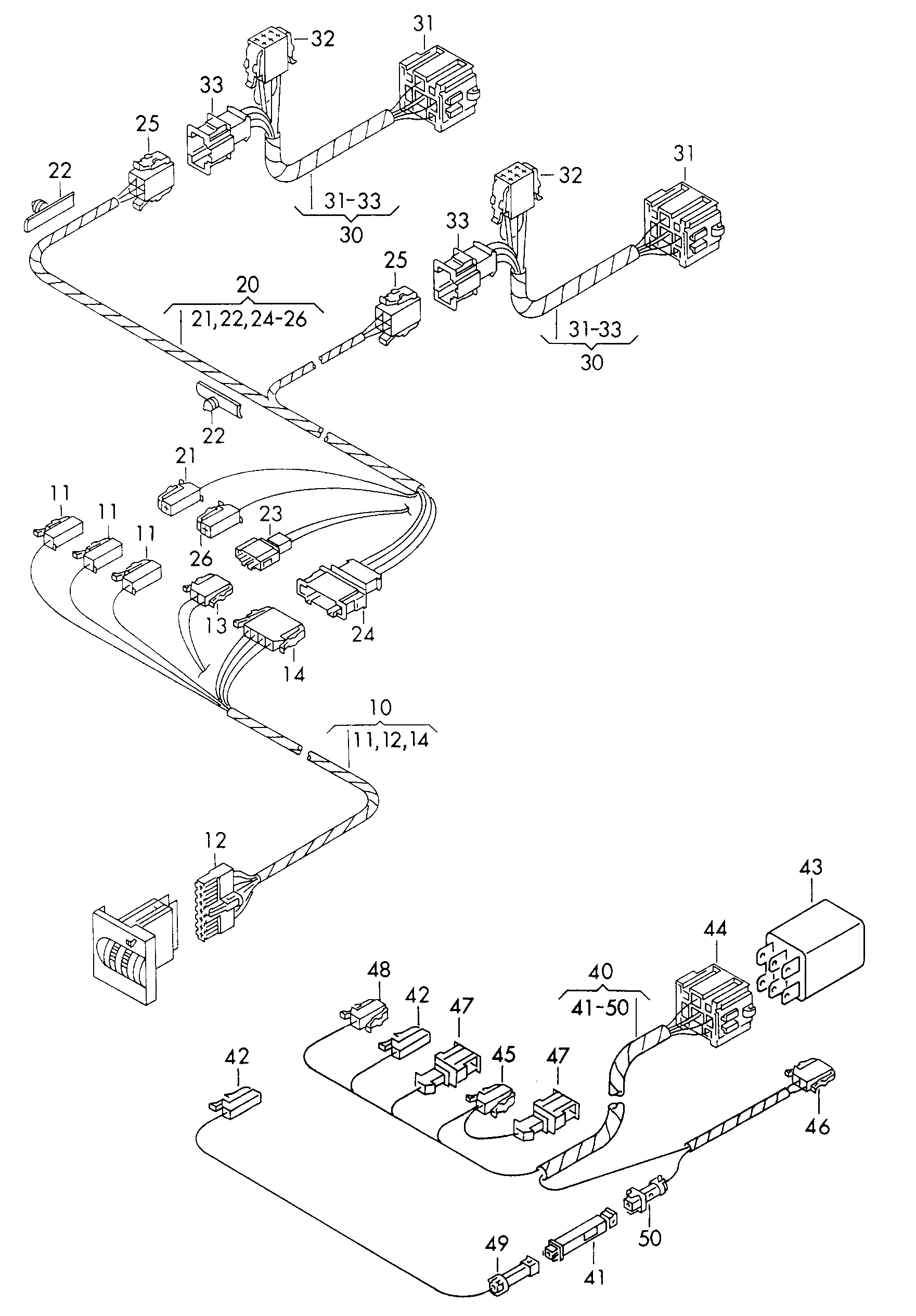

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(10)	Wiring light for seat heating Potentiometer use if required:** see current flow diagram F >> 1 H-VW 260 000F >> 1 H-VB 120 000F >> 1 H-VP 240 000 191 972 704 191 972 704	1H0 971 381 E
(11)	Flat contact housing	701 906 231
(12)	Flat contact housing	321 971 946
(13)	Flat contact housing	191 972 704
(14)	Flat contact housing	191 972 706
(20)	Wiring light for seat heating use if required:** see current flow diagram F >> 1 H-VW 260 000F >> 1 H-VB 120 000F >> 1 H-VP 240 000 191 972 714 191 972 714	1H0 971 381 G
(23)	flat connector housing	191 972 714
(25)	Flat contact housing	1J0 972 722
(26)	Flat contact housing	3A0 972 751 H
(40)	wiring harness forwarning time relay	1H0 971 110 B
(43)	warning time relay	1H0 919 433
(43)	warning time relay	1H0 919 433 A
10&20	Wiring light for seat heating Potentiometer	1H1 971 381
10&20	Wiring light for seat heating Potentiometer	1H2 971 381 B
22	Cable holder	1H0 971 848 F
24	flat connector housing	191 972 716
25	Flat contact housing	191 972 722
30	Wiring light for seat heating Relay	1H0 971 382
31	relay plate	161 937 501 B
32	Flat contact housing	191 972 723
33	Flat contact housing	1J0 972 732
33	Flat contact housing	191 972 732
42	Flat contact housing Connection piece Potential distributor	701 906 231
44	relay plate	161 937 501 B
45	Flat contact housing Coupling element Wiring set for dash panel	191 972 701
46	Flat contact housing withcontact locking mechanism Connection piece Switch	1J0 972 702
46	Flat contact housing Connection piece Switch	191 972 702
47	flat connector housing Coupling element Wire set Combi-instrumentwiring harness for steeringcolumn combination switch	191 972 711
48	Flat contact housing Connection piece Potential distributor 31 31	3A0 972 751 H
