Wiring set anti theft alarm system — Mk3 Golf Wiring Looms (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Wiring set for engine

Generation: Mk3 1993 - 1996 (MEX) Group: Wiring looms Parts: 24 Primary OEM: 1HM 971 807 D, 1HM 971 807 C, 6N0 972 705

Wiring set anti theft alarm system for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 972057 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 24 OEM part numbers including 1HM 971 807 D, 1HM 971 807 C and 6N0 972 705. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 24 OEM part numbers across 24 numbered positions.

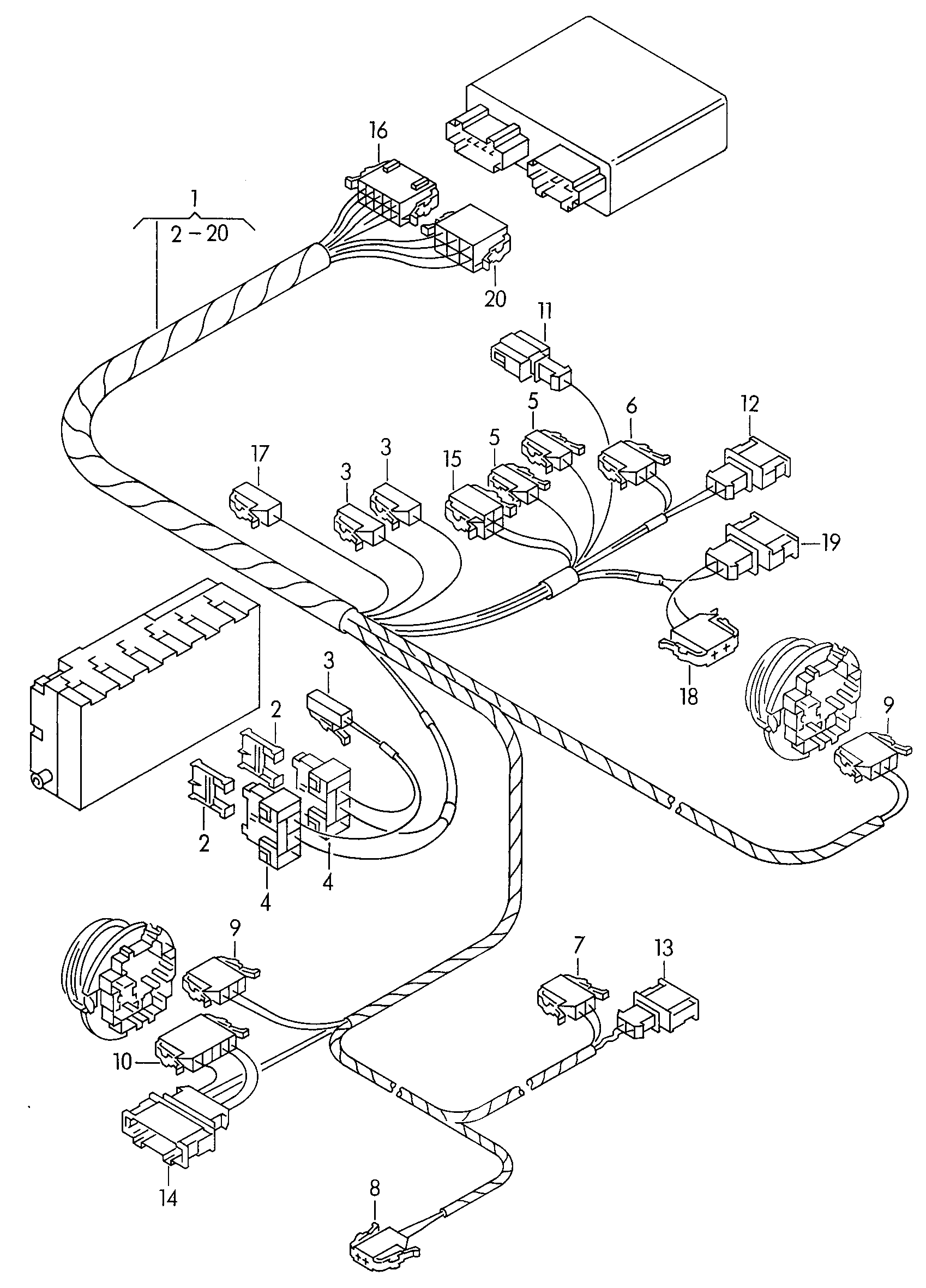

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Wiring set for anti-theftalarm systemandfor central locking system	1HM 971 807 D
1	Wiring set for anti-theftalarm system	1HM 971 807 C
10	Flat contact housing	6N0 972 705
11	flat connector housing	191 972 711
12	flat connector housing Connection piece Wiring set for dash panel	191 972 712
13	flat connector housing Connection piece Rear wiring set	191 972 712
14	flat connector housing Connection piecewiring harness forcentral locking	191 972 715
15	Flat contact housing Connection piece Wire set Signal horn	1J0 972 722
16	Flat contact housing withcontact locking mechanism	191 972 725
17	Flat contact housing	3A0 972 751 H
18	Flat contact housing Connection piecewiring harness for 4-speedautomatic gearbox	1J0 972 752
19	flat connector housing Connection piece Wiring set for engine	191 972 762
2	flat fuse 19/2 x 5 LITTLE-FUSE LITTLE-FUSE	N 017 131 11
20	Flat contact housing	8E0 972 773
3	Flat contact housing	701 906 231
4	fuse box forflat fuses	1H0 937 530
5	Flat contact housing Connection piece Rear wiring set	191 972 701
6	Flat contact housing Connection pieceharness for vehicle lighting	191 972 702
6	Flat contact housing withcontact locking mechanism Connection pieceharness for vehicle lighting	1J0 972 702
7	Flat contact housing Connection piecewiring harness fordoor contact switch	191 972 702
7	Flat contact housing withcontact locking mechanism Connection piecewiring harness fordoor contact switch	1J0 972 702
8	Flat contact housing Connection piece Adapter cable loom Tail light	191 972 702
8	Flat contact housing withcontact locking mechanism Connection piece Adapter cable loom Tail light	1J0 972 702
9	Flat contact housing	1H0 972 703

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 06 Wiring looms
Factory subgroup: 972057
