Wiring set battery 3 phase alternator earth line — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 40 Primary OEM: 1H0 971 228 M, 1H0 971 812, 1H0 971 615 P

Wiring set battery 3 phase alternator earth line for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972004 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 40 OEM part numbers including 1H0 971 228 M, 1H0 971 812 and 1H0 971 615 P. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ACC, ADY and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 40 OEM part numbers across 40 numbered positions.

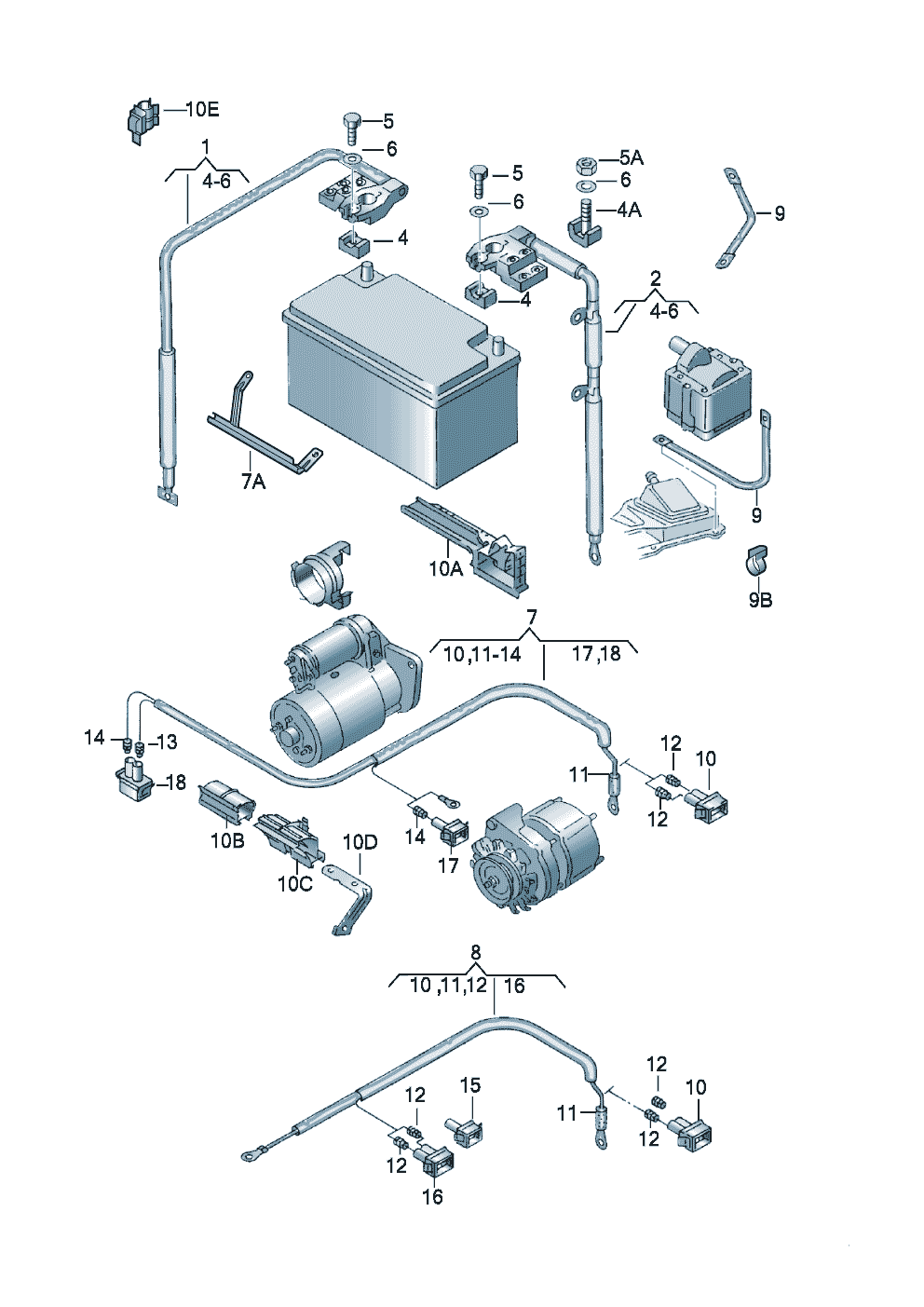

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Wiring set for battery + 710 MM 710 MM	1H0 971 228 M
(10A)	Bracket only for:Wiring set for starter 1 H 0 971 615 D 1 H 0 971 615 D	1H0 971 812
(10C)	Clip	1H0 971 615 P
(10D)	guide tube Wiring set for three-phasealternator AEE AEE	1H0 971 823
(10E)	Cable holder Wiring set for battery + ecomatic	1H0 971 848 AN
(10E)	Bracket Wiring set for battery -	1H0 971 858 F
(10E)	Clip Wiring set for battery +Battery console AAA AAA	1H0 971 848 AM
(11)	Connecting hose 4 X 30 4 X 30	443 955 665
(2)	Wiring set for battery - 900 MM 900 MM	1H0 971 235 G
(2)	Wiring set for battery - 900 MM 900 MM	1H0 971 235 M
(2)	Wiring set for battery - 1000 MM ecomatic: 1000 MM	1H0 971 235 H
(7)	Wiring set for three-phasealternator AEE,AEX AEEAEX	1H0 971 349 AE
(7A)	guide tube Wiring set for three-phasealternator AEE AEE	1H0 971 823
(8)	Wiring set for three-phasealternator Air cond.+AAA	1H0 971 349 R
(8)	Wiring set for three-phasealternator use if required: 357 972 761357 972 841 357 972 761357 972 841	1H0 971 349 P
(8)	Wiring set for three-phasealternator diesel eng.	1H0 971 349 AM
(9)	Earth line 450 MM AEX,AEE 450 MM AEEAEX	1H0 971 537 B
(9)	Earth lineignition transformer 320 MM AAM,AEK,ADY,ADZ,AEP,AFT,ACC,AGG 320 MM AAMACCADYADZAEKAEPAFTAGG	3A0 971 537 D
(9)	Earth lineignition transformer 360 MM 360 MM	357 971 537
(9)	Earth line Battery Side part 400 MM 400 MM	1H0 971 219 A
10	flat contact housing withgasket	037 906 240
10A	Guide piece	1H0 971 615 Q
10B	Guide piece Wiring set for three-phasealternator	1H0 971 615 C
10D	Bracket Guide piece Wiring set for three-phasealternator	1H0 971 858 A
10E	Clip Wiring set for battery +Battery console AEE,AEX AEEAEX	1H0 971 848 AH
11	Grommet 4 X 30 4 X 30	803 971 896
12	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
13	single wiring seal for wire cross section: 9,0 X 7,81,0 9,0 X 7,81,0	357 972 742
14	single wiring seal for wire cross section: 9,0 X 7,84,0 9,0 X 7,84,0	357 972 742 C
15	flat connector housing	357 972 761
16	flat connector housing AAZ,AEY,1 Y,1 Z 1Y1ZAAZAEY	357 972 762
17	flat contact housing withgasket AEE,AEX AEEAEX	357 972 771
18	flat connector housing AEE,AEX AEEAEX	357 972 782
19	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
4A	clamping piece 19 MM 19 MM	3A0 915 138
5A	Hexagon nut M 6 M 6	N 011 006 27
6	Washer 6,4 X 11 X 1,6 6,4 X 11 X 1,6	N 011 557 2
7A	Bracket Wiring set for three-phasealternator AEX AEX	1H0 972 823 A
9	Earth line Bonnet 270 MM 270 MM	533 971 537
9B	Anti-twist device Earth lineignition transformer AAM,AEX,ADYAEP,ADZ,AEE,AGG,AEK,AFT,ACC AAMACCADZAEEAEKAEXAFTAGG	1H0 971 902

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAA, AAM, AAZ, ACC, ADY, ADZ
Variant tags: diesel
Factory group: 06 Wiring looms
Factory subgroup: 972004
