Wiring set dash panel — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 33 Primary OEM: 1H0 971 052 K, 1H0 971 052 L, 1H0 971 052 M

Wiring set dash panel for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971088 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 33 OEM part numbers including 1H0 971 052 K, 1H0 971 052 L and 1H0 971 052 M. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 33 numbered positions.

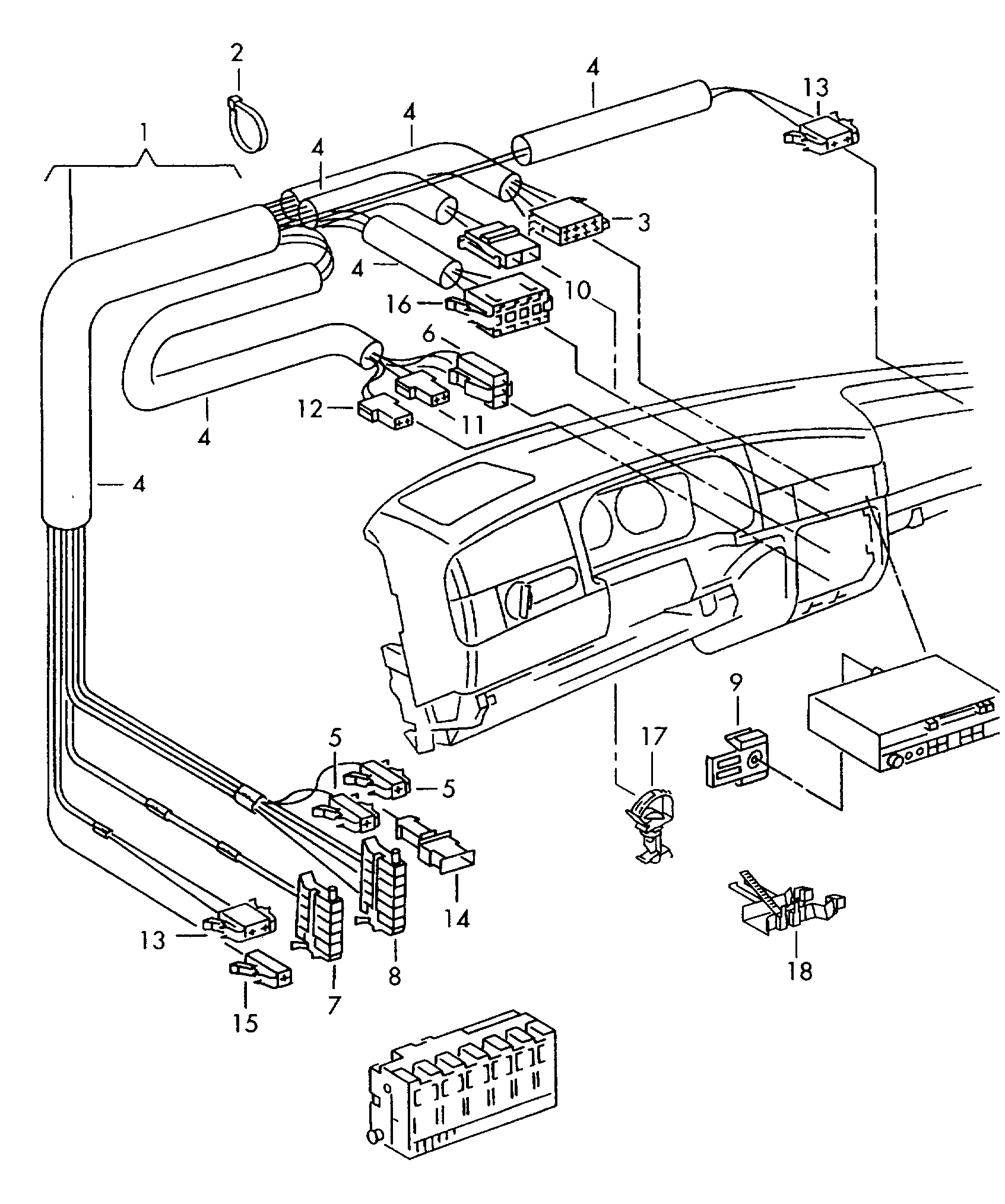

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Wiring set for dash panel	1H0 971 052 K
(1)	Wiring set for dash panelfor vehicles with elec-tronically controlled heating	1H0 971 052 L
(1)	Wiring set for dash panelfor vehicles with electroni-cally regulated air condit.	1H0 971 052 M
(1)	Wiring set for dash panelfor vehicles with electroni-cally regulated air condit.	1H2 971 052 AH
(1)	Wiring set for dash panelfor vehicles with air condit.	1H0 971 052 N
(1)	Wiring set for dash panel ecomatic	1H0 971 052 P
(12)	Flat contact housingfor diagnostic plug	1H0 972 695
(14)	Flat contact housing Connection pieceswitch for air conditioner	191 972 724
(14)	Flat contact housing Connection piecefor vehicles with elec-tronically controlled heating	191 972 726
(14)	Flat contact housing withcontact locking mechanism Connection piecefor vehicles with elec-tronically controlled heating	1J0 972 726
(15)	Flat contact housing Connection piecefor vehicle with activeloudspeakers	191 972 752
(15)	Flat contact housing Connection piecefor vehicle with activeloudspeakers	1J0 972 752
(16)	Flat contact housing Coupling elementharness for air conditionerharness for engine compartment	1J0 972 732
(16)	Flat contact housingfor vehicles with immobilizer	3A0 973 606
(16)	Flat contact housing Coupling elementharness for air conditionerharness for engine compartment	191 972 732
(2)	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
(5)	Flat contact housingashtray light	191 906 231 A
10	Flat contact housing Connection pieceswitch - brake light	191 971 993
13	Flat contact housing Connection piece Glove compartment lid lightfor diagnostic plugground connector	191 972 702
13	Flat contact housing withcontact locking mechanism Connection piece Glove compartment lid lightfor diagnostic plugground connector	1J0 972 702
14	flat connector housing Coupling elementsteering col. combi switch	191 972 711
15	Flat contact housing Connection pieceground connector	3A0 972 751 H
16	Flat contact housing Connection piecewiring harness for heater	191 972 774
16	Flat contact housing Connection piecewiring harness for heater	1J0 972 774
17	Cable holder Connection piece Lineswitch - brake light	1H0 971 816 A
18	Cable guide	1H0 971 825
3	Flat contact housing Connection pieceradio	357 035 447
4	Felt strips (self-adhesive)'order qty. 25' 20 X 1 X 880 MM 20 X 1 X 880 MM	533 867 910 A
5	Flat contact housing Connection piece Potentiometer Hall sensor Potentiometer KL:58 B KL:58 B	701 906 231
6	Flat contact housing Connection piece Cigarette lighter	191 919 321
7	Flat contact housing withcontact locking mechanism Slot: E E	357 919 968 A
8	Flat contact housing withcontact locking mechanism Slot: Q Q	357 959 968
9	Cable holder Connection pieceradio	1H0 971 899

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 06 Wiring looms
Factory subgroup: 971088
