Wiring set dash panel taxi — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 44 Primary OEM: 1H5 971 052 G, 1H5 971 052 H, 1H0 971 825

Wiring set dash panel taxi for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971090 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 42 OEM part numbers across 44 catalogued positions including 1H5 971 052 G, 1H5 971 052 H and 1H0 971 825. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 42 OEM part numbers across 44 numbered positions.

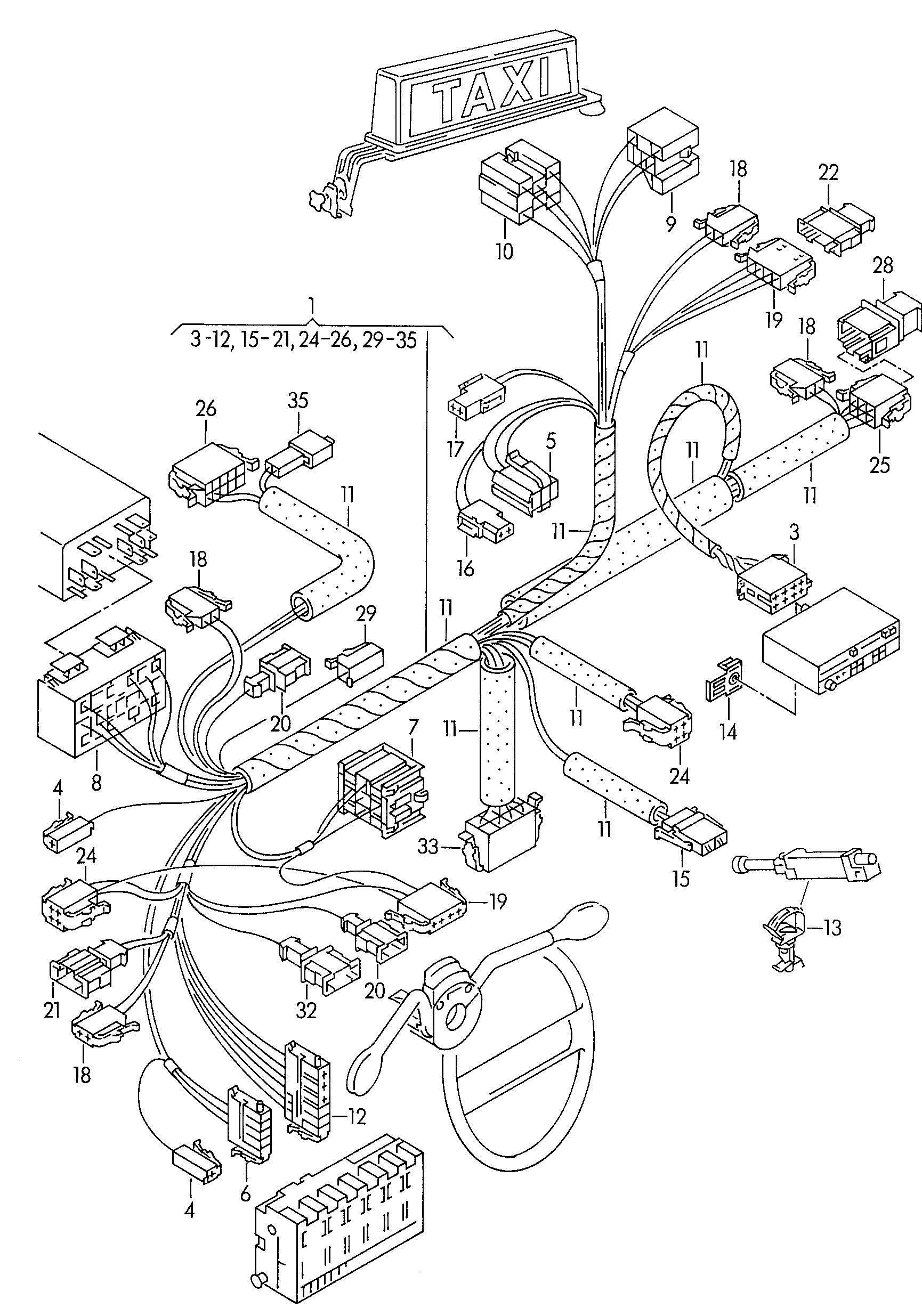

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for dash panel TAXI	—
	Wiring set for dash panel Connection piecefor vehicle with activeloudspeakers See accessory catalogue TAXI	—
(1)	Wiring set for dash panel	1H5 971 052 G
(1)	Wiring set for dash panelfor vehicles with air condit.	1H5 971 052 H
(14)	Cable guide	1H0 971 825
(18)	Flat contact housing Connection piece Glove compartment lid light	1J0 972 703
(18)	Flat contact housing Connection piece Glove compartment lid light	1J0 972 924
(18)	Flat contact housing Connection piece Glove compartment lid light	191 972 703
(21)	flat connector housing Connection piece Instrument housing	191 972 713
(28)	Flat contact housing Connection piece Flat contact housing 191 972 734 191 972 734	191 972 724
(32)	Flat contact housing Coupling element Wiring set for parking anddriving light switch	191 972 763
(35)	Flat contact housingfor anti-theft alarm system	3A0 973 606
10	Flat contact housing Connection piecefor roof sign	701 941 997
11	Felt strips (self-adhesive) 20 X 3 X 880 MM 20 X 3 X 880 MM	533 863 288 A
12	Flat contact housing withcontact locking mechanism Slot: Q Q	357 959 968
13	Cable holder Connection piece Lineswitch - brake light	1H0 971 816 A
14	Cable holder Connection pieceradio	1H0 971 899
15	Flat contact housing Connection pieceswitch - brake light	191 971 993
16	Flat contact housing withcontact locking mechanism Connection piecefor diagnostic plug	443 972 577 E
17	Flat contact housing withcontact locking mechanism Connection piecefor diagnostic plug	443 972 580
18	Flat contact housing withcontact locking mechanism Connection piece Glove compartment lid lightfor radioground connector	1J0 972 702
18	Flat contact housing Connection piece Glove compartment lid lightfor radioground connector	191 972 702
19	Flat contact housing Connection piecewiring harness for steeringcolumn combination switchfor radio	1J0 972 704
19	Flat contact housing Connection piecewiring harness for steeringcolumn combination switchfor radio	191 972 704
20	flat connector housing Coupling elementwiring harness for steeringcolumn combination switch	191 972 711
22	flat connector housing	191 972 714
24	Flat contact housing Connection piece Temperature sensoralarm systemfor vehicles with engineresidual heat heater	1J0 972 722
24	Flat contact housing Connection piece Temperature sensoralarm systemfor vehicles with engineresidual heat heater	191 972 722
25	Flat contact housing Connection piece TAXAMETER	191 972 723
26	Flat contact housing withcontact locking mechanism Connection piece Wiring set for door	191 972 725
28	Flat contact housing Connection piece Flat contact housing TAXAMETER 191 972 723 191 972 723	191 972 733
29	Flat contact housing Connection pieceground connector	3A0 972 751 H
3	Flat contact housing Connection pieceradio	357 035 447
32	flat connector housing Connection piecewiring harness for steeringcolumn combination switch 30 A,56 B 30 A,56 B	191 972 761
33	Flat contact housing Coupling elementwiring harness for heater	191 972 774
33	Flat contact housing Coupling elementwiring harness for heater	1J0 972 774
35	Flat contact housing Coupling element Lineinterior light	1J0 973 332
35	Flat contact housing Coupling element Lineinterior light	1H0 973 131 A
4	Flat contact housing Connection pieceground connector	701 906 231
5	Flat contact housing Connection piece Cigarette lighter	191 919 321
6	Flat contact housing withcontact locking mechanism Slot: E E	357 919 968 A
7	relay plate Connection piece Relay 53 53	161 937 501 B
8	relay plate Connection piece Control unitalarm switch	443 937 501 B
9	Flat contact housing Connection piece Line Interior and reading light	357 941 599
