Wiring set door — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 46 Primary OEM: N 905 930 01, 1H5 971 120 CE, 1H5 971 120 DL

Wiring set door for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972033 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 46 OEM part numbers including N 905 930 01, 1H5 971 120 CE and 1H5 971 120 DL. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 46 OEM part numbers across 46 numbered positions.

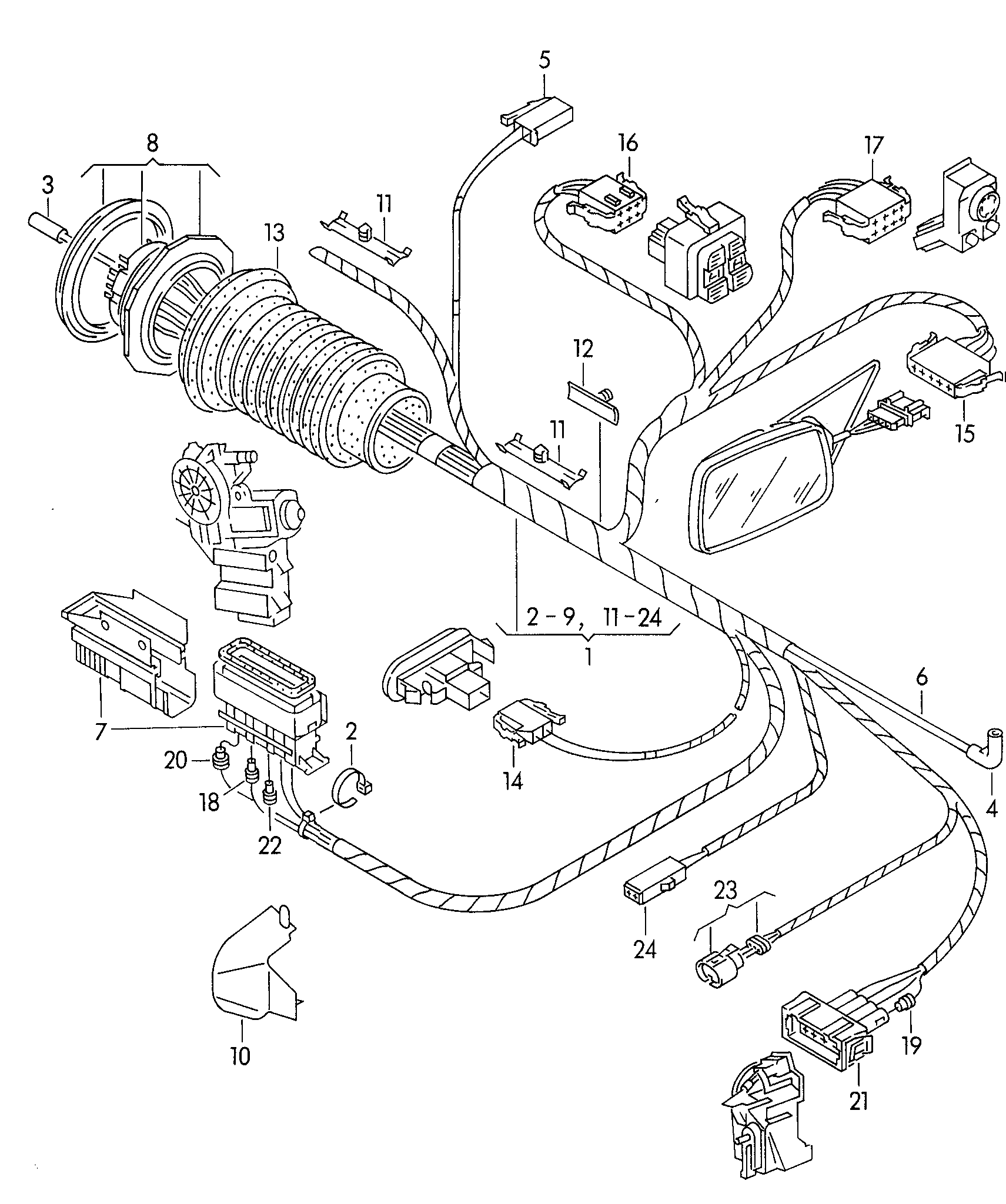

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	corrugated pipe 5000 X 13 X 16 5000 X 13 X 16	N 905 930 01
(1)	Wiring set for doorfor electric window regulatorswith/without Exterior mirror electricallyadjustable and heatedcentral locking system	1H5 971 120 CE
(1)	Wiring set for door For vehicles with exteriormirrors, electric adjustmentand heatedwith/withoutcentral locking system	1H5 971 120 DL
(1)	Wiring set for doorfor electric window regulatorswith/without Exterior mirror electricallyadjustable and heatedcentral locking system	1H5 971 120 DP
(1)	Wiring set for doorcentral locking systemandanti-theft alarm systemwith/without Exterior mirror electricallyadjustable and heated	1H5 971 120 DM
(1)	Wiring set for doorcentral locking systemandanti-theft alarm systemwith/without Exterior mirror electricallyadjustable and heated	1H5 971 120 CA
(1)	Wiring set for doorfor electric windows,central locking system andanti-theft alarm systemwith/without Exterior mirror electricallyadjustable and heated	1H5 971 120 DP
(1)	Wiring set for doorfor electric windows,central locking system andanti-theft alarm systemwith/without Exterior mirror electricallyadjustable and heated	1H5 971 120 CG
(1)	Wiring set for doorcentral locking systemand/or For heated and electricadjustable exterior mirrors	1H5 971 121 AS
(1)	Wiring set for doorfor electric window regulatorswith/without Exterior mirror electricallyadjustable and heatedcentral locking system	1H5 971 121 BC
(1)	Wiring set for door For vehicles with exteriormirrors, electric adjustmentand heatedwith/withoutcentral locking system	1H5 971 120 BS
(1)	Wiring set for doorcentral locking systemand/or For heated and electricadjustable exterior mirrors	1H5 971 121 BL
(1)	Wiring set for doorfor electric window regulatorswith/without Exterior mirror electricallyadjustable and heatedcentral locking system	1H5 971 121 BM
(1)	Wiring set for door For vehicles with exteriormirrors, electric adjustmentand heatedwith/withoutcentral locking system	1H5 971 120 DL
(1)	Wiring set for doorfor electric window regulatorswith/without Exterior mirror electricallyadjustable and heated	1H5 971 120 DN
(1)	Wiring set for doorfor anti-theft alarm systemand Exterior mirror electricallyadjustable and heated	1H5 971 120 DM
(1)	Wiring set for doorfor electric windows,central locking system andanti-theft alarm systemwith/without Exterior mirror electricallyadjustable and heated	1H5 971 120 DP
(1)	Wiring set for doorfor electric window regulatorswith/without Exterior mirror electricallyadjustable and heated	1H5 971 121 BM
(1)	Wiring set for door For heated and electricadjustable exterior mirrors	1H5 971 121 BL
(6)	Pipefor central locking systemmodify in workshop also use: 1450 MM 533 862 225 1450 MM 533 862 225	8D0 862 245
(8)	Flat contact housing	3A0 959 735 A
(8)	flat contact housing withcap	3A0 959 735 C
11	Bundling clip f wiring harness	4B0 971 848
11	Cable holder	1H0 971 848 F
12	Cable holder	1H0 971 848 F
12	Bundling clip f wiring harness	4B0 971 848
13	Bellows 48,5/36/66 48,5/36/66	1H0 971 916 A
13	Bellows 48,5/36/66 48,5/36/66	1H0 971 916 B
14	Flat contact housing	191 972 702
14	Flat contact housing withcontact locking mechanism	1J0 972 702
15	Flat contact housing	191 972 705
16	Flat contact housing	191 972 723
17	Flat contact housing	191 972 724
18	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
19	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
2	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
20	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
21	Flat contact housing	357 972 754
22	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
23	flat contact housing withgasket	1H0 972 117 A
24	Flat contact housing For vehicles with anti-theftalarm system	1H0 973 121 C
3	Hose 3,5 X 540 3,5 X 540	533 862 225
4	Elbow fitting	357 862 232
5	Flat contact housing Loudspeaker	191 906 231 A
6	Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM	7M0 955 961 B
7	flat contact housing withgasket	1H0 959 381
