Which VW part numbers are on the wiring set door rear diagram for the Mk3 Golf?

This diagram lists 23 OEM part numbers for the Mk3 Golf. The first three are 1H4 971 161 AF, 1H4 971 161 AQ and 8D0 862 245.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wiring set door rear — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 23 Primary OEM: 1H4 971 161 AF, 1H4 971 161 AQ, 8D0 862 245

Wiring set door rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 972035 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 23 OEM part numbers including 1H4 971 161 AF, 1H4 971 161 AQ and 8D0 862 245. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 23 OEM part numbers across 23 numbered positions.

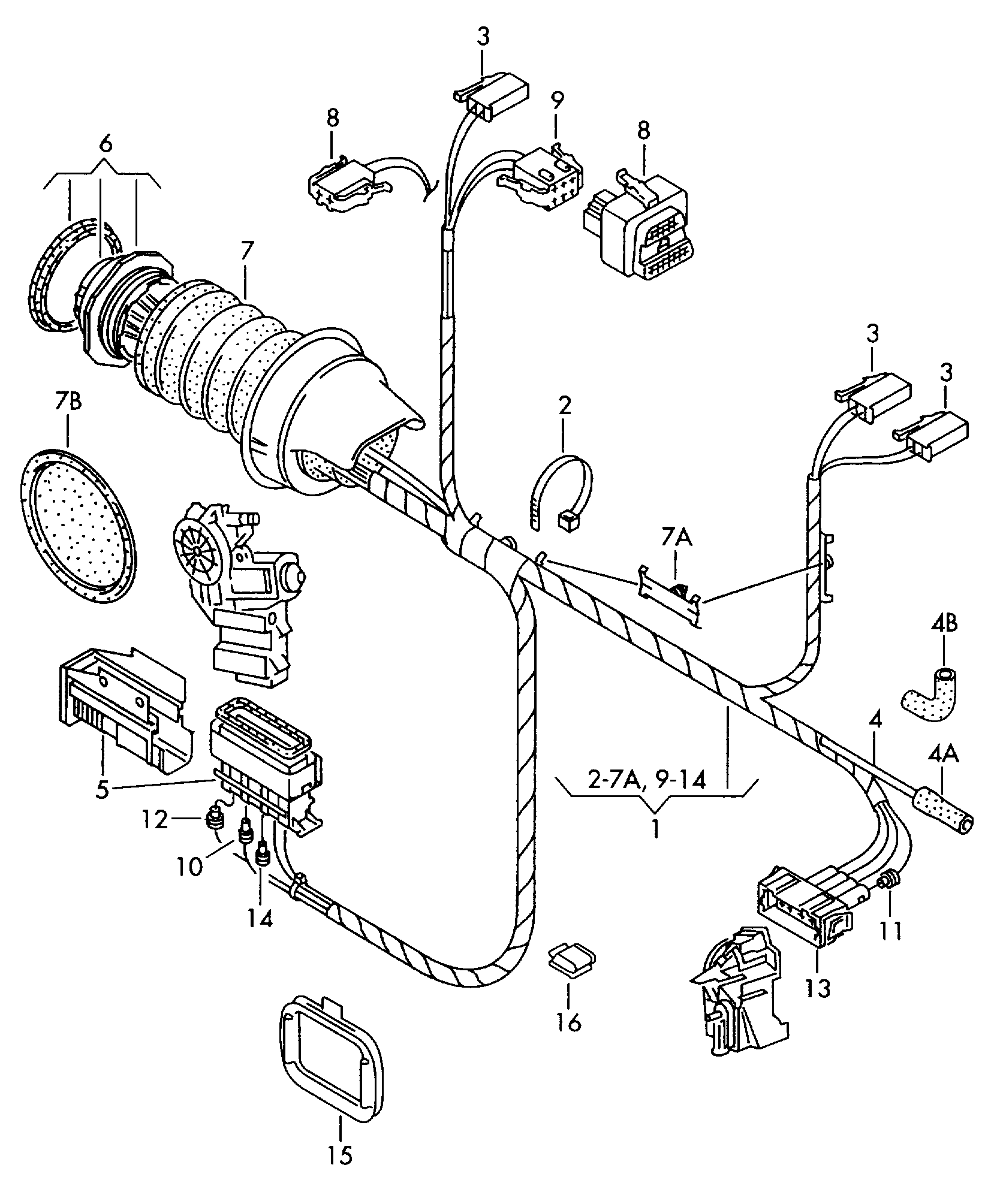

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Wiring set for door	1H4 971 161 AF
(1)	Wiring set for door	1H4 971 161 AQ
(4)	Pipefor central locking systemmodify in workshop also use: 1450 MM 533 862 225 1450 MM 533 862 225	8D0 862 245
(6)	Flat contact housing	1H4 959 735 E
10	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
11	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
12	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
13	Flat contact housing	357 972 754
14	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
15	Edge protection	1H0 971 905 L
16	Bracket	803 959 849
2	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
2	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
3	Flat contact housing Loudspeaker	191 906 231 A
4	Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM	7M0 955 961 B
4A	Hose 3,5 X 540 3,5 X 540	533 862 225
4B	Elbow fitting	357 862 232
5	flat contact housing withgasket	1H0 959 381
7	Bellows	1H4 971 611 A
7A	Cable holder	1H0 971 848 F
7A	Bundling clip f wiring harness	4B0 971 848
7B	Bungs 64 64	1H4 971 908
9	Flat contact housing	191 972 723

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 06 Wiring looms
Factory subgroup: 972035
