Which VW part numbers are on the wiring set engine diagram for the Mk3 Golf?

This diagram lists 26 OEM part numbers for the Mk3 Golf. The first three are N 103 113 04, N 102 871 01 and 028 971 595 CC.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Z, AEY, AFN, AHU and ALE.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wiring set engine — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 28 Primary OEM: N 103 113 04, N 102 871 01, 028 971 595 CC

Wiring set engine for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971011 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 26 OEM part numbers across 28 catalogued positions including N 103 113 04, N 102 871 01 and 028 971 595 CC. Parts on this plate carry the engine codes 1Z, AEY, AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 26 OEM part numbers across 28 numbered positions.

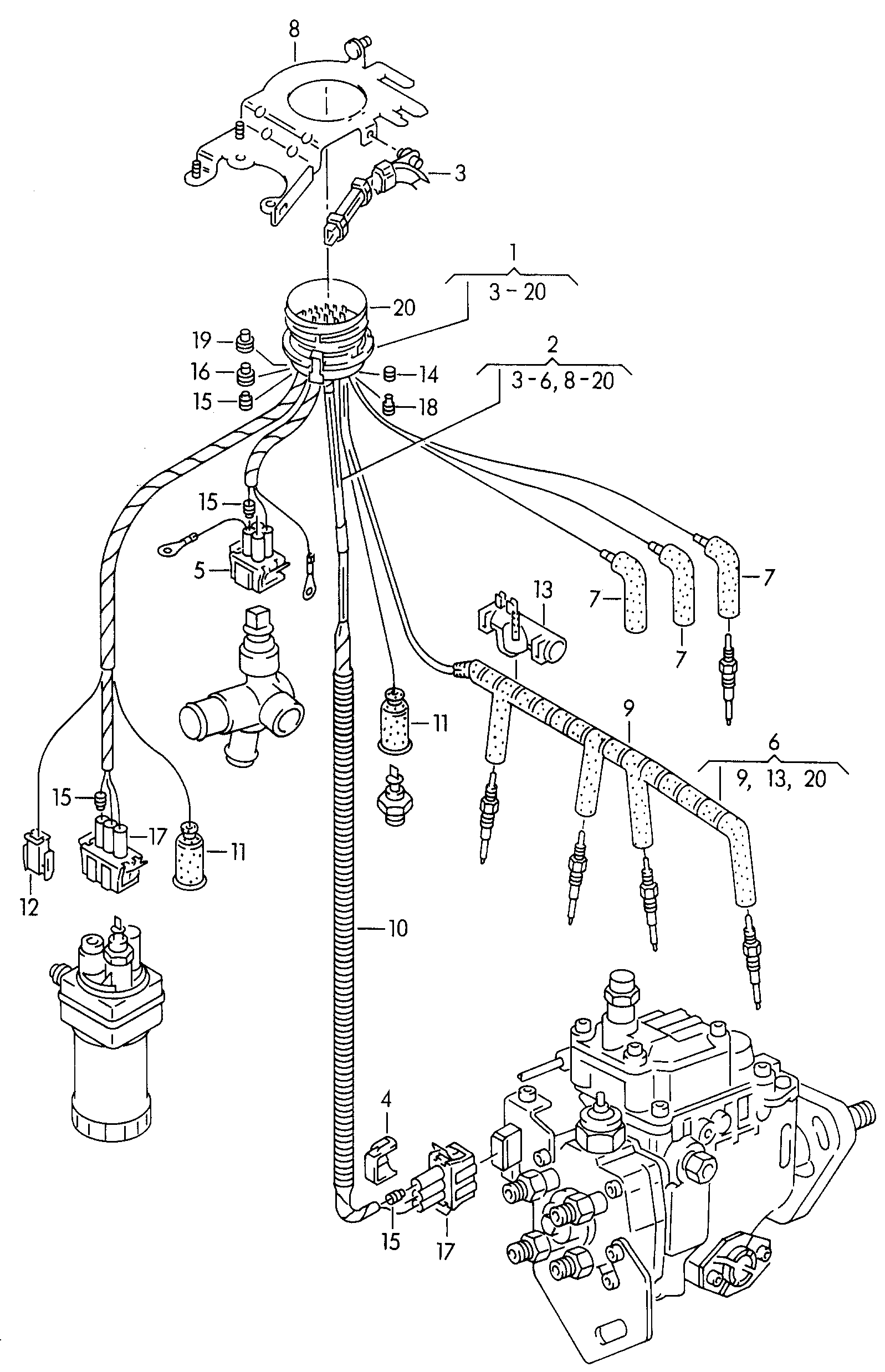

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine Diesel eng.+1 Z,AEY,AFN,AHU,ALE AEYAFNAHUALE	—
	Wiring set for engine Diesel eng.+1 Z,AEY,AFN,AHU,ALE AEYAFNAHUALE	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
-	corrugated pipe in coils of 5 m'order unit 5' 5000 X 13 X 16 5000 X 13 X 16	N 102 871 01
(1)	Wiring set for enginefor vehicles with glow plugheater AEY AEY	028 971 595 CC
(6)	contact bridge with loom Flat contact housingand Cable guide also use: 028 972 0993 A 0 973 131 028 972 0993 A 0 973 131	028 971 766
1	Wiring set for enginefor vehicles with glow plugheater 1 Z,AFN,AHU,ALE 1ZAFNAHUALE	028 971 595 R
10	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
11	Grommet 10 X 32 10 X 32	811 971 867
12	Flat contact housing Connection piece Oil temperature sender	191 971 922
13	Cable guide Connection piececontact bridge	028 972 099
14	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
15	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
16	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
17	Flat contact housing Connection piecedistance sensor Pump	357 972 753
18	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
18	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
19	Bungs 9,0 9,0	357 972 842
2	Wiring set for engine 1 Z,AFN,AHU,AEY,ALE 1ZAEYAFNAHUALE	028 971 595 AA
20	flat connector housing	3A0 973 131
3	Cable guide	028 905 487
4	Bracket protective cover	357 906 733 B
5	Flat contact housing	357 919 754
7	Bracket ins. sleeve with cablefor vehicles with glow plugheater 340 MM 340 MM	028 971 782 A
7	Bracket ins. sleeve with cablefor vehicles with glow plugheater	028 971 220 B
8	Bracket Connection pieceflat connector housing	028 971 501 A
8	Bracket Connection pieceflat connector housing	028 971 501 D
9	contact bridge with loom	028 971 766

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Z, AEY, AFN, AHU, ALE
Variant tags: diesel
Factory group: 06 Wiring looms
Factory subgroup: 971011
