Which VW part numbers are on the wiring set engine aam adz acc diagram for the Mk3 Golf?

This diagram lists 45 OEM part numbers for the Mk3 Golf. The first three are N 103 113 04, N 906 821 01 and N 906 819 01.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AAM, ACC and ADZ.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wiring set engine aam adz acc — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 49 Primary OEM: N 103 113 04, N 906 821 01, N 906 819 01

Wiring set engine aam adz acc for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971001 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 45 OEM part numbers across 49 catalogued positions including N 103 113 04, N 906 821 01 and N 906 819 01. Parts on this plate carry the engine codes AAM, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 45 OEM part numbers across 49 numbered positions.

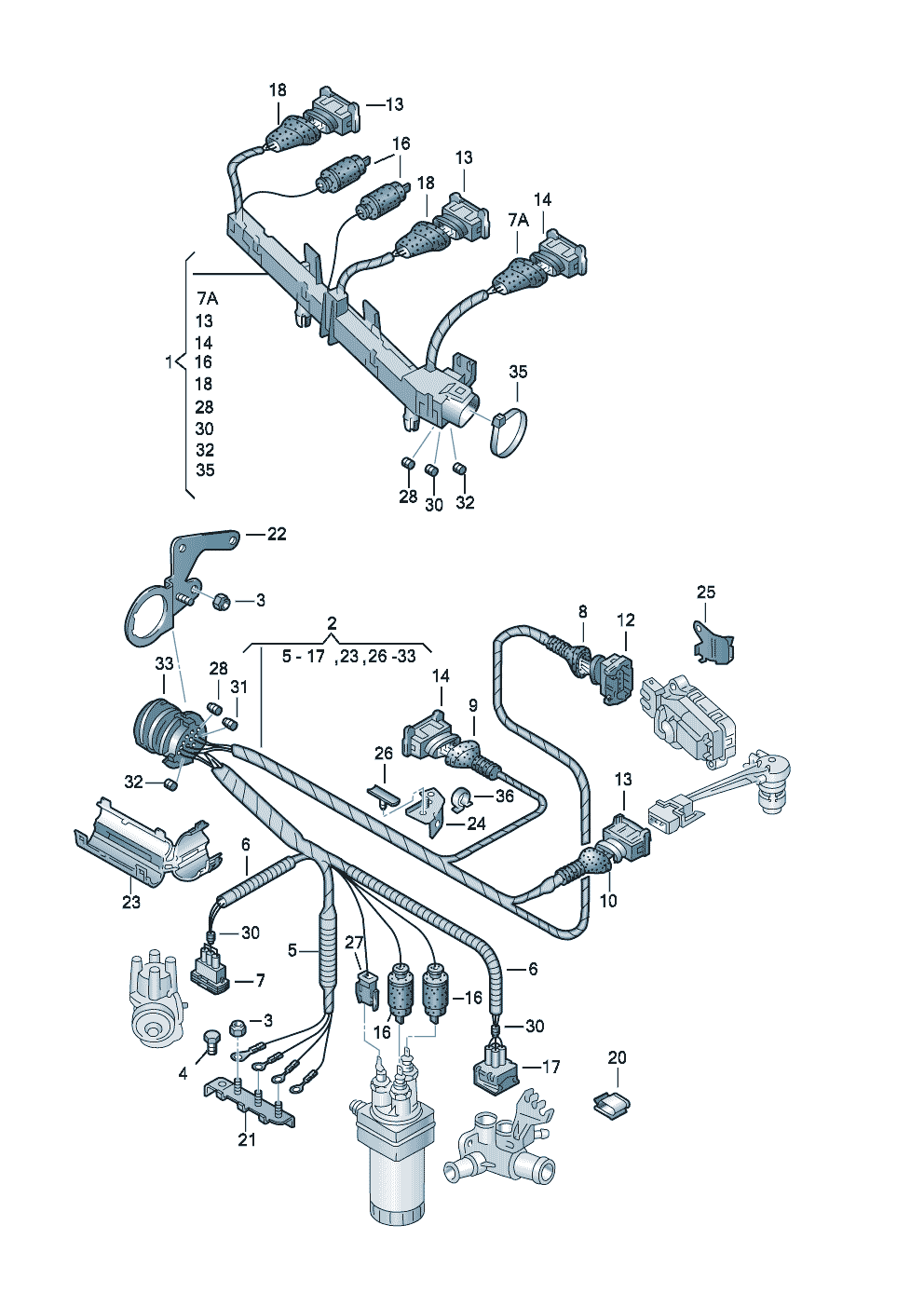

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine AAM,ADZ,ACC AAMACCADZ	—
	Wiring set for engine AAM,ADZ,ACC AAMACCADZ	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
-	corrugated pipe end piece 10 10	N 906 821 01
-	corrugated pipe end piece 4,5 4,5	N 906 819 01
(14)	Flat contact housing automatic	071 906 233
(17)	Flat contact housing Connection piecedistance sensor	357 972 753
(2)	Wiring set for enginefor vehicle use withethanol fuel ACC ACC	051 971 595 R
(2)	Wiring set for enginefor vehicle use withethanol fuel ACC ACC	051 971 595 T
(2)	Wiring set for enginefor models with catalyst ACC ACC	051 971 595 F
(2)	Wiring set for engine Automatic+AAM,ADZ ADZ	051 971 595 S
(2)	Wiring set for enginefor models with catalyst ACC ACC	051 971 595 D
(2)	Wiring set for enginefor vehicle use withethanol fuel Automatic+ACC	051 971 595 S
(2)	Wiring set for enginefor models with catalyst Automatic+ACC	051 971 595 E
(36)	Cable ties 4,5 X 140 4,5 X 140	N 902 055 01
(36)	Cable ties For hole/material thickness: 5 X 6,56,5/0,3-3 5 X 6,56,5/0,3-3	N 906 661 01
10	Grommet 13,5 X 19 13,5 X 19	443 906 102 G
12	Flat contact housing Connection piece Throttle valve positioner	022 906 233 A
13	Flat contact housing Connection piece Throttle valve positioner Injection valve	4A0 906 234
14	Flat contact housing Connection piece Throttle valve potentiometer	025 906 235 B
16	Protective cap 32 X 10 32 X 10	191 919 083
17	Flat contact housing	357 919 754
2	Wiring set for engine AAM,ADZ AAMADZ	051 971 595 R
2	Wiring set for engine AAM,ADZ AAMADZ	051 971 595 T
20	Bracket	803 959 849
21	Potential distributor	037 971 501 B
22	Bracket Connection pieceflat connector housing	051 971 501
23	Cable guide	037 971 824
24	bracket for breather pipe	051 971 843 B
25	terminal Connection piece Injector unit	050 971 847
26	Bundling clip f wiring harness	4B0 971 848
26	Cable holder	1H0 971 848 F
27	Flat contact housing	191 971 922
28	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
3	Hexagon collar nut M 6 M 6	N 901 752 03
30	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
31	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
32	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
32	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
33	flat connector housing	1H0 973 131
36	Discont. / replace: N 902 055 01 N 902 055 01	—
36	Cable ties N 906 661 01 N 906 661 01	—
4	Hexagon bolt M 8 X 10 M 8 X 10	N 010 235 3
4	Hexagon bolt M 8 X 10 M 8 X 10	N 010 235 8
5	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
6	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
7	Flat contact housing	357 905 327
8	Grommet 30 automatic 30	4A0 906 102
9	Grommet	4A0 906 102 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAM, ACC, ADZ
Factory group: 06 Wiring looms
Factory subgroup: 971001
