Wiring set engine abf — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 40 Primary OEM: N 906 661 01, N 103 113 04, 111 971 921 B

Wiring set engine abf for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971007 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 36 OEM part numbers across 40 catalogued positions including N 906 661 01, N 103 113 04 and 111 971 921 B. Parts on this plate carry the engine code ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 36 OEM part numbers across 40 numbered positions.

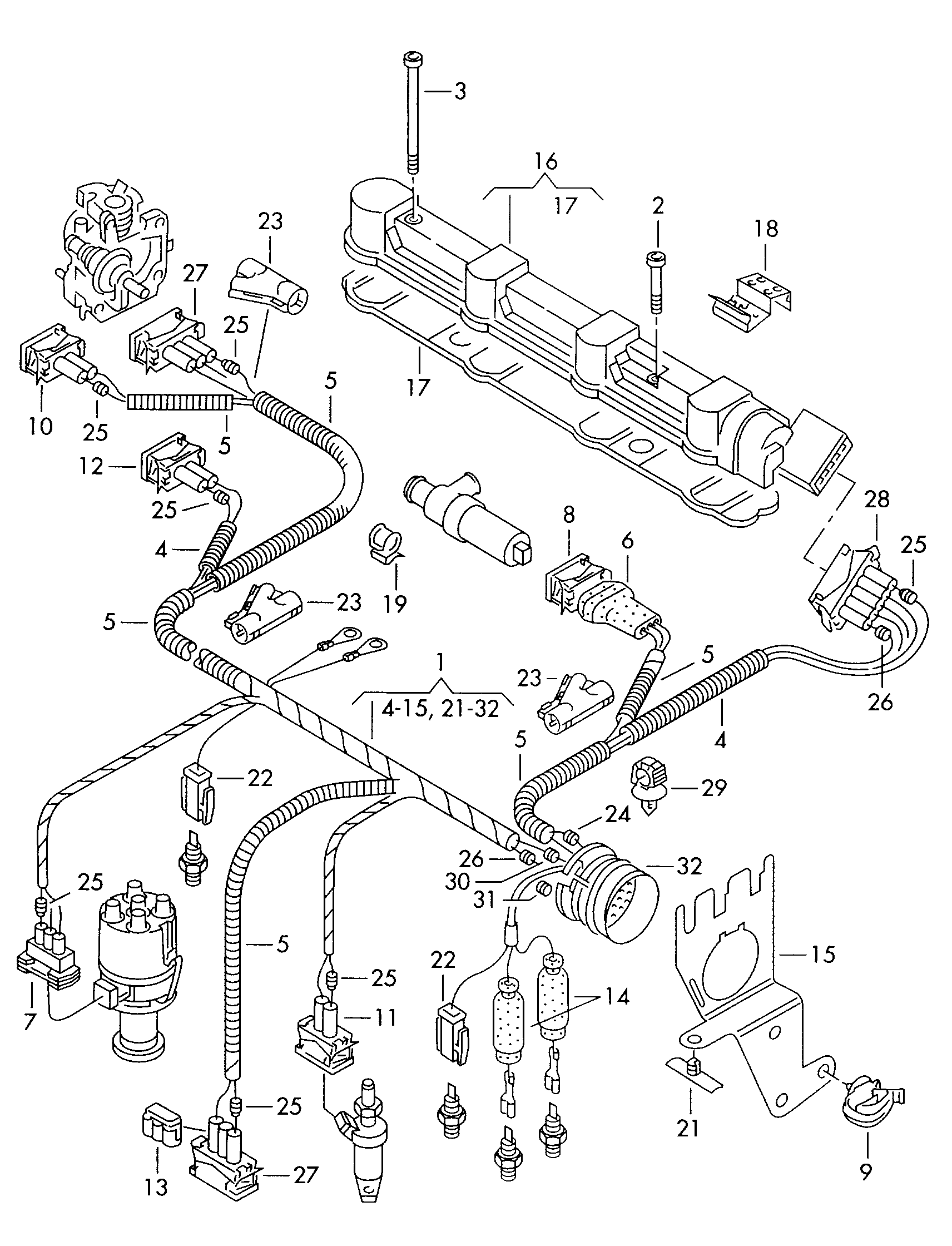

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine ABF ABF	—
	Wiring set for engine ABF ABF	—
-	Cable ties For hole/material thickness: 5 X 6,56,5/0,3-3 5 X 6,56,5/0,3-3	N 906 661 01
-	Insulating tape 19 19	N 103 113 04
(22)	Flat contact housing F 1 H-VW 130 001>>*	111 971 921 B
1	Wiring set for engine	037 971 595 BQ
1	Wiring set for engine F >> 1 H-VW 130 000F >> 1 H-VB 045 000F >> 1 H-VP 090 000*	037 971 595 AK
10	flat contact housing withgasket Connection piece Switch Throttle valve	037 906 240
11	flat contact housing withgasket Connection piece Temperature sensor NTC NTC	037 906 240
12	flat contact housing withgasket	037 906 240
13	Bracket protective cover	357 906 733 B
14	Protective cap 32 X 10 32 X 10	191 919 083
15	Bracket Coupling element Knock sensorspeed sender	037 971 502 B
16	Adapter cable loom	037 971 766 E
17	Seal	037 971 786 B
18	terminal Connection piece Adapter cable loom	037 971 842
19	Clip	037 971 848 A
2	Socket head bolt withhexagon socket head M 6 X 35 M 6 X 35	N 014 759 1
21	Cable holder	1H0 971 848 F
21	Bundling clip f wiring harness	4B0 971 848
22	Flat contact housing Oil temperature sender Temperature sensor	191 971 922
23	corrugated pipe y piece 7,5-7,5-4,5 7,5-7,5-4,5	037 972 645
24	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
25	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
26	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
27	Flat contact housing Connection piecedistance sensor Potentiometer Throttle valve	357 972 753
28	Flat contact housing Connection piece Injection valve	357 972 755
29	Cable tiescorrugated pipe 4,6 X 200 4,6 X 200	N 906 661 01
3	Socket head bolt withhexagon socket head M 6 X 70 M 6 X 70	N 100 598 01
30	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
30	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
31	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
32	flat connector housing	1H0 973 131
4	corrugated pipe in coils of 5 m'order unit 5' 10 10	N 907 735 01
5	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
6	Protective cap 16 X 6,5 16 X 6,5	701 905 142
7	Flat contact housing Connection piece Distributor	357 905 327
8	Flat contact housing Connection pieceidling stabilsation	443 906 233
9	Discont. / replace: N 900 603 01 N 900 603 01	—
9	Cable ties N 906 661 01 N 906 661 01	—
