Wiring set engine ady agg akr — Mk3 Golf Wiring Looms (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Wiring set for engine

Generation: Mk3 1994 - 1997 (RDW) Group: Wiring looms Parts: 34 Primary OEM: 191 919 083, 000 979 107, 111 971 940 A

Wiring set engine ady agg akr for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 971005 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 31 OEM part numbers across 34 catalogued positions including 191 919 083, 000 979 107 and 111 971 940 A. Parts on this plate carry the engine codes ADY, AGG and AKR. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 31 OEM part numbers across 34 numbered positions.

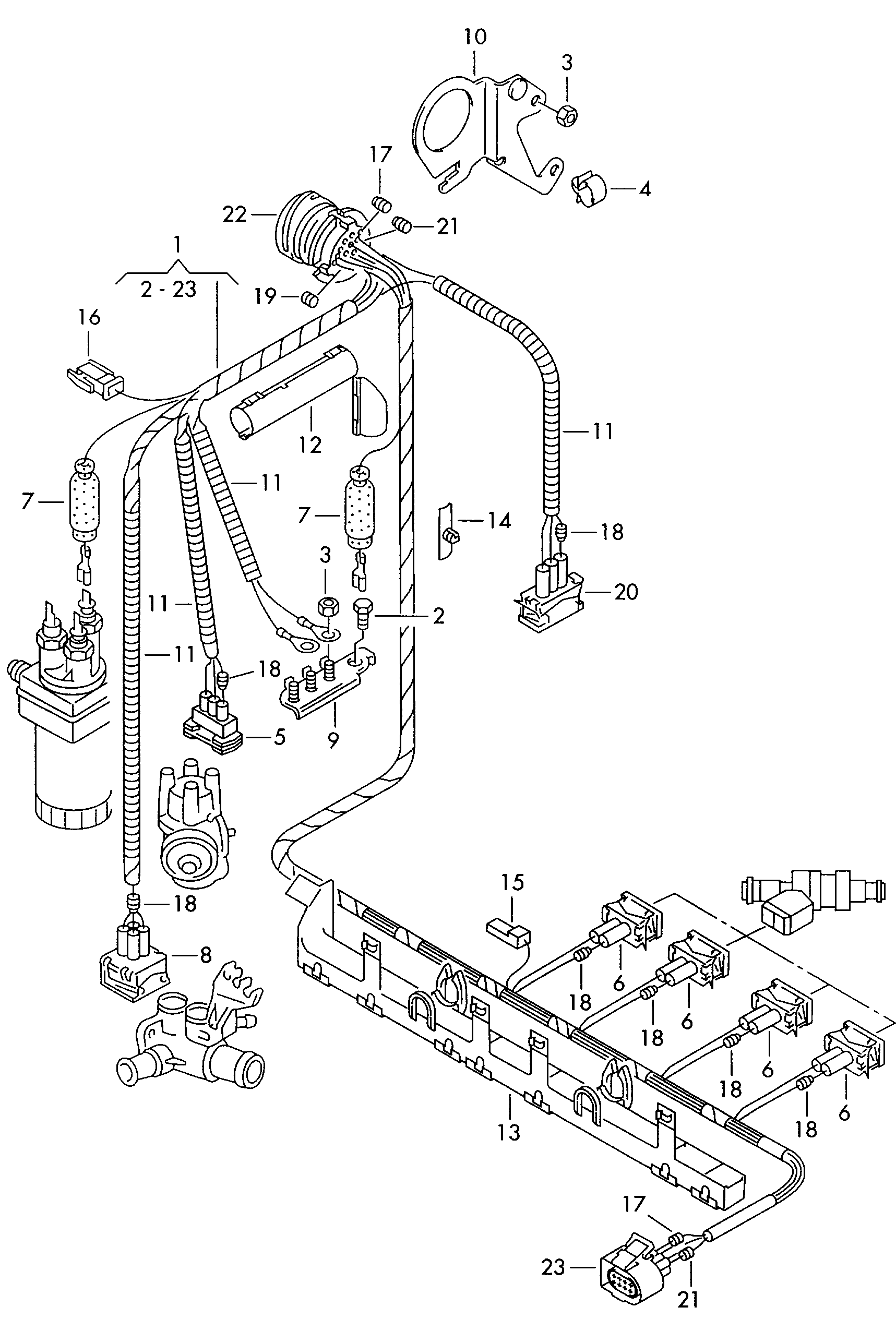

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine ADY,AGG,AKR ADYAGGAKR	—
	Wiring set for engine ADY,AGG,AKR ADYAGGAKR	—
-	Protective cap 32 X 10 32 X 10	191 919 083
-	1 set single wires each with 2 contacts,in bag of 5'Order qty. 5'flat connector/sleeve withretaining lug 1,06,3 1,06,3	000 979 107
-	butt connector, watertight,can be welded 0,5-1,0 0,5-1,0	111 971 940 A
(4)	Cable ties 4,5 X 140 4,5 X 140	N 902 055 01
(4)	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
1	Wiring set for engine	037 971 595 AN
1	Wiring set for engine	037 971 595 BC
1	Wiring set for engine also use: 111 971 940 A 000 979 107191 919 083 AKR,AGG 111 971 940 A 000 979 107191 919 083 AGGAKR	037 971 595 CK
10	Bracket	037 971 501 D
11	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
12	Cable guide	037 971 824
13	Cable guide	037 971 824 A
14	Bundling clip f wiring harness 6 MM 6 MM	4B0 971 848
14	Cable holder 6 MM 6 MM	1H0 971 848 F
15	Flat contact housing	111 971 921 B
16	Flat contact housing Connection piece Oil temperature sender MFA MFA	191 971 922
17	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
18	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
19	single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5	357 972 742 B
2	Hexagon bolt M 8 X 10 M 8 X 10	N 010 235 3
20	Flat contact housing Connection piecespeedometer automatic	357 972 753
21	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
21	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
22	flat connector housing	1H0 973 131
23	Flat contact housing Connection piece ESB ESB	3A0 973 714
3	Hexagon collar nut M 6 M 6	N 901 752 03
4	Cable holder Discont. / replace: N 902 055 01 N 902 055 01	—
5	Flat contact housing Connection piece Distributor	357 905 327
6	flat contact housing withgasket Connection piececylinder Valve	037 906 240
7	Protective cap Connection piece Oil pressure switch 32 X 10 32 X 10	191 919 083
8	Flat contact housing Connection piece Temperature sensor	357 919 754
9	Potential distributor	037 971 501 B
