Wiring set engine aea — Mk3 Golf Wiring Looms (1995)

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1995 (RDW) Group: Wiring looms Parts: 25 Primary OEM: N 103 113 03, N 103 113 04, 030 971 502 F

Wiring set engine aea for the Volkswagen Golf Mk3 (1995): factory exploded diagram 971002 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 22 OEM part numbers across 25 catalogued positions including N 103 113 03, N 103 113 04 and 030 971 502 F. Parts on this plate carry the engine code AEA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 22 OEM part numbers across 25 numbered positions.

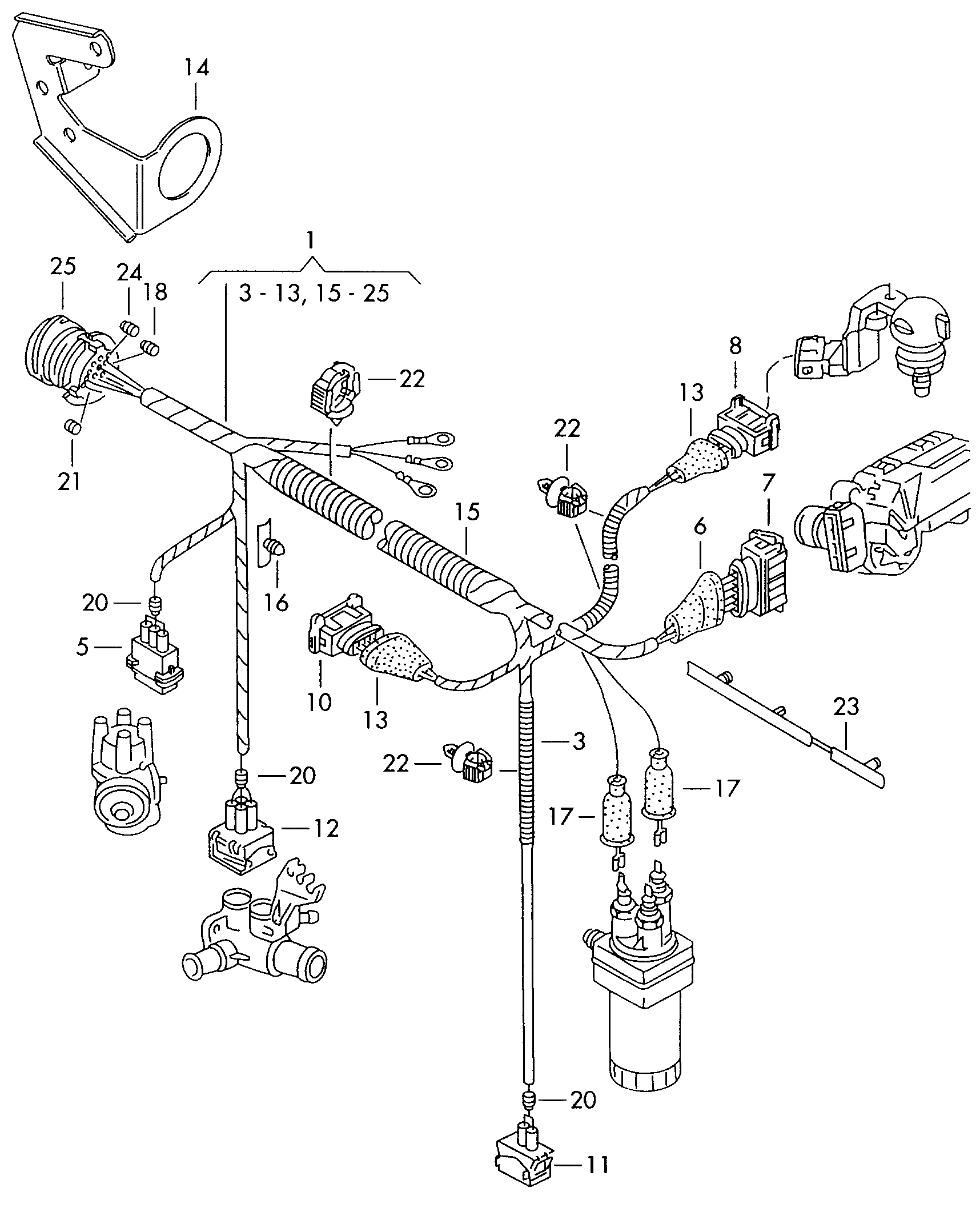

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine AEA AEA	—
	Wiring set for engine AEA AEA	—
-	Insulating tape 19 19	N 103 113 03
-	Insulating tape 19 19	N 103 113 04
(14)	Bracket Coupling elementharness for engine compartment	030 971 502 F
(22)	cable binder - corrugated pipe For hole/material thickness: 5 X 2006,5 / 0,6-2,0 5 X 2006,5 / 0,6-2,0	N 907 726 01
1	Wiring set for engine	032 971 595 L
10	Flat contact housing Connection piece Throttle valve positionersender	025 906 235 B
11	flat contact housing withgasket Connection piece Knock sensorexhaust recirculation valve	037 906 240
12	Flat contact housing Connection piece Temperature sensor	357 919 754
13	Grommet Connection piece Injection valve Throttle valve positionersender 28 X 10,7 28 X 10,7	853 945 521
13	Protective cap Connection piece Injection valve Throttle valve positionersender 28 X 10,7 28 X 10,7	893 945 521
14	Bracket Coupling elementharness for engine compartment	030 971 502
16	Bundling clip f wiring harness	4B0 971 848
16	Cable holder	1H0 971 848 F
17	Grommet Oil pressure sender 10 X 32 10 X 32	811 971 867
22	Discont. / replace: N 907 726 01 N 907 726 01	—
22	Clipcorrugated pipe	032 972 821
23	Cable holder Intake manifold	030 972 822
25	flat connector housing Coupling elementharness for engine compartment	1H0 973 131
5	Flat contact housing Connection piece Distributor	357 905 327
6	Protective cap Connection piece Throttle valve positioner	037 906 102 A
7	Flat contact housing Connection piece Throttle valve positioner	025 906 238 B
7	Flat contact housing Connection piece Throttle valve positioner	022 906 233 A
8	Flat contact housing Connection piece Injection valve	4A0 906 234

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: AEA
Factory group: 06 Wiring looms
Factory subgroup: 971002
