Wiring set engine aex aee — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 36 Primary OEM: N 103 113 04, 030 971 595 G, 030 971 824

Wiring set engine aex aee for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971000 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 33 OEM part numbers across 36 catalogued positions including N 103 113 04, 030 971 595 G and 030 971 824. Parts on this plate carry the engine codes AEE and AEX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 36 numbered positions.

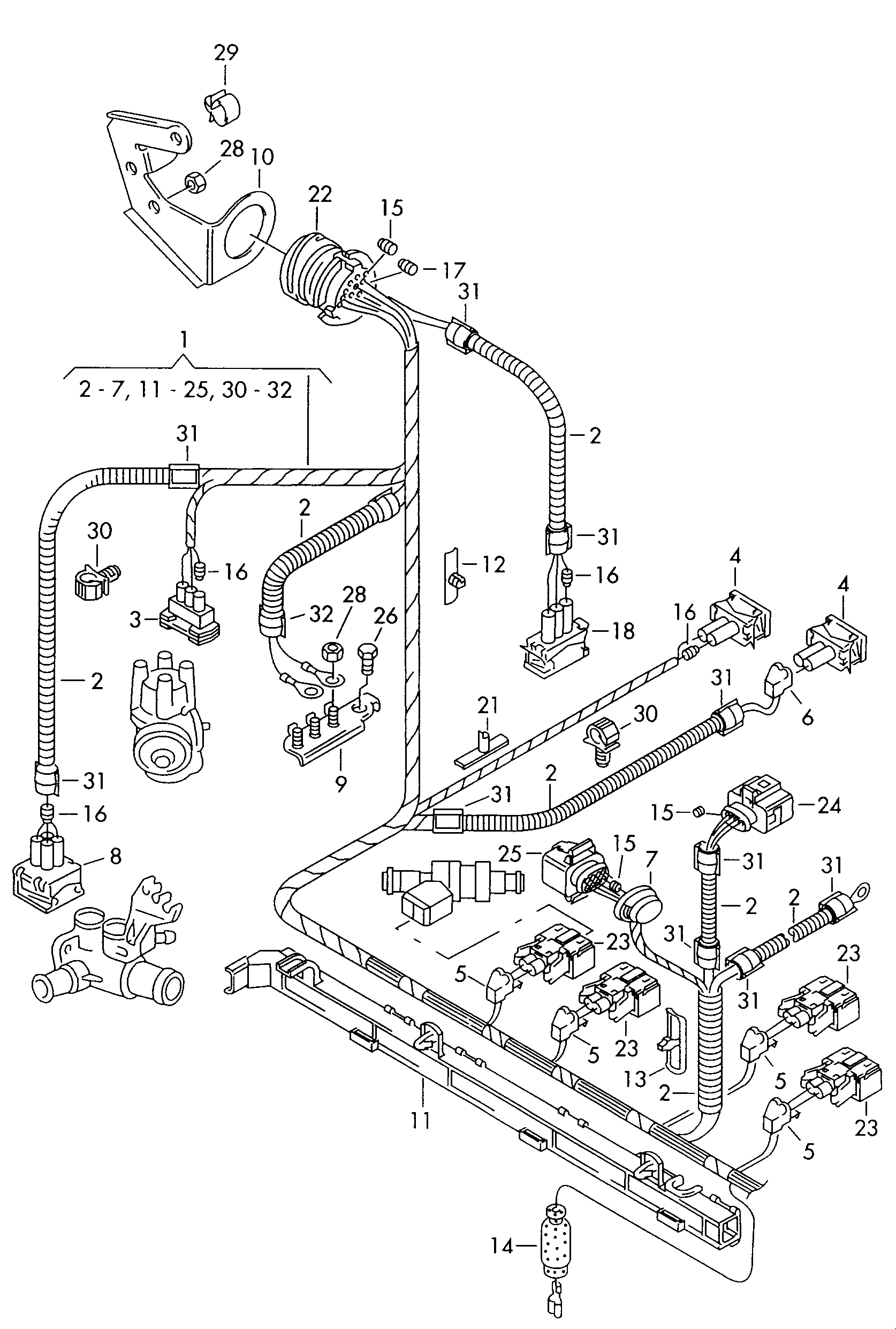

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine AEX,AEE AEEAEX	—
	Wiring set for engine AEX,AEE AEEAEX	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
(1)	Wiring set for engine------------------------------* free cable ends* must be isolated------------------------------	030 971 595 G
11	Cover	030 971 824
12	Cable holder 6 MM 6 MM	1H0 971 848 F
12	Bundling clip f wiring harness 6 MM 6 MM	4B0 971 848
13	Cable holder	1H0 971 848 Q
14	Grommet Connection piece Oil pressure switch 10 X 32 10 X 32	811 971 867
15	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
16	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
17	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
18	Flat contact housing Connection piece Speedometer	357 972 753
2	* Corrug. tubes, T-pieces,* clips, holders, grommets,* cable ties, insulating* hose, wiring,* single wires and seals* see special catalogue:* ELECTRICAL* CONNECTING ELEMENTS	—
21	Cable holder	032 972 822
22	flat connector housing	1H0 973 131
23	flat contact housing withgasket Connection piececylinder 1-4 1-4	037 973 202
24	Flat contact housing withcontact locking mechanism Connection piece Temperature sensor Pressure sensor	1J0 973 704
25	Flat contact housing	4A0 973 714 G
26	Hexagon bolt M 8 X 10 M 8 X 10	N 010 235 3
26	Hexagon bolt M 8 X 10 M 8 X 10	N 010 235 8
28	Hexagon collar nut M 6 M 6	N 901 752 03
29	Cable ties Clip 4,6 X 200 4,6 X 200	N 906 661 01
29	Cable ties Clip 4,5 X 140 4,5 X 140	N 902 055 01
3	Flat contact housing Connection piece Distributor	357 905 327
30	Cable ties For hole/material thickness: 4,5 X 2006,1 / 0,5-2,7 4,5 X 2006,1 / 0,5-2,7	N 906 661 01
30	Cable ties Clip 173 X 4,8 173 X 4,8	N 903 283 01
31	corrugated pipe end piece 4,5 4,5	N 906 819 01
32	corrugated pipe end piece 7,5 7,5	N 906 820 01
4	flat contact housing withgasket Connection piece Knock sensor	037 906 240
5	Bracket protective cover	1H0 906 732
5	Protective cap	1J0 972 402
6	Bracket protective cover	357 906 732 A
7	Bracket protective cover	6N0 906 738
8	Flat contact housing Connection piece Temperature sensor	357 919 754
9	Potential distributor	037 971 501 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AEE, AEX
Factory group: 06 Wiring looms
Factory subgroup: 971000
