Wiring set engine aks aft — Mk3 Golf Wiring Looms (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

Generation: Mk3 1997 (RDW) Group: Wiring looms Parts: 29 Primary OEM: N 103 113 04, 037 971 595 BG, 037 971 595 BB

Wiring set engine aks aft for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971004 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 27 OEM part numbers across 29 catalogued positions including N 103 113 04, 037 971 595 BG and 037 971 595 BB. Parts on this plate carry the engine codes AEK, AFT and AKS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 27 OEM part numbers across 29 numbered positions.

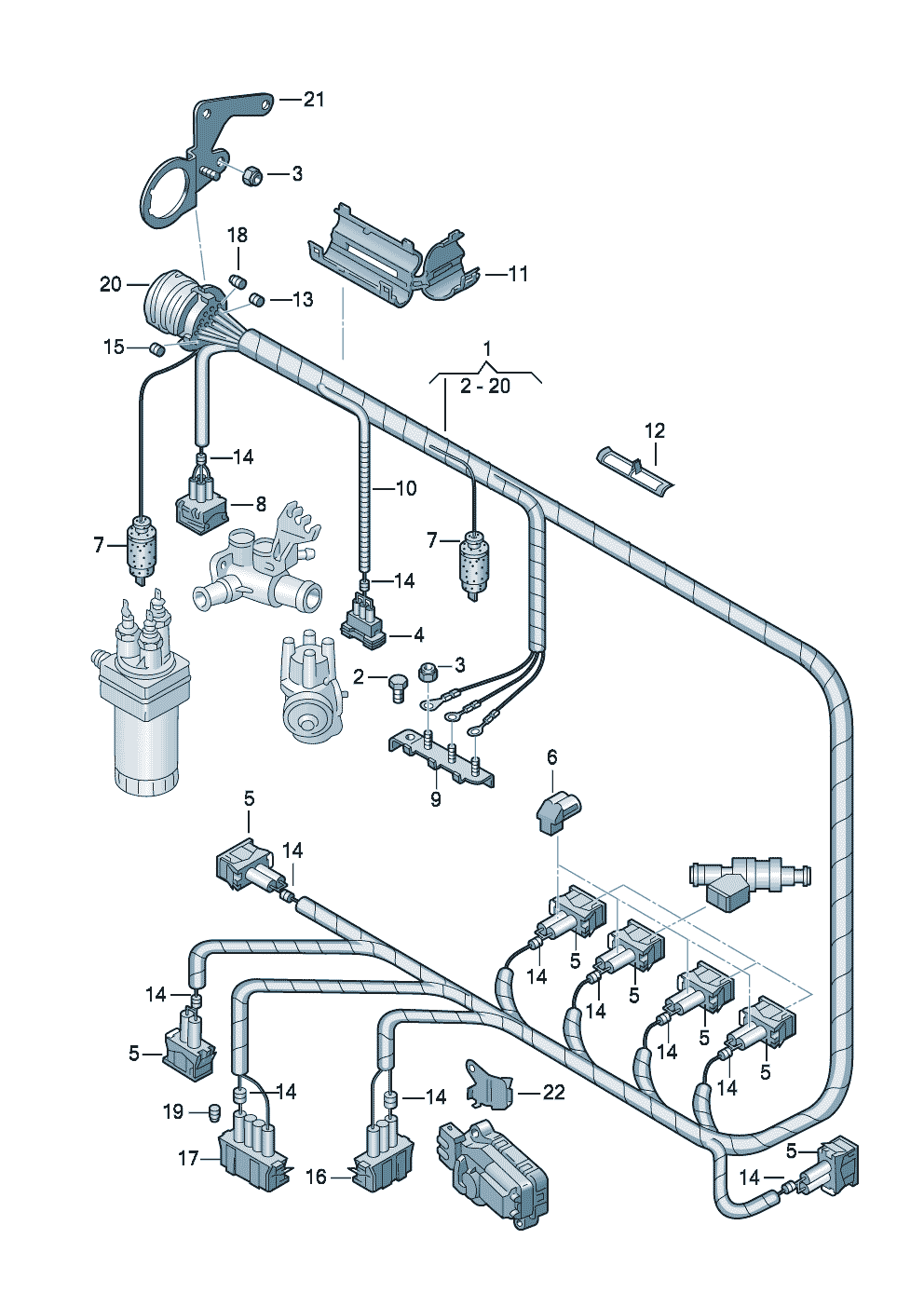

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine AKS,AFT AFTAKS	—
	Wiring set for engine AFT,AKS AFTAKS	—
-	Insulating tape 0,15 X 19 X 10000 0,15 X 19 X 10000	N 103 113 04
(1)	Wiring set for engine	037 971 595 BG
(1)	Wiring set for engine automatic	037 971 595 BB
(17)	Flat contact housing	3A0 973 714
10	corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5	N 906 355 17
11	Cable guide	037 971 824
12	Cable holder	1H0 971 848 Q
13	single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0	357 972 740 D
14	single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0	357 972 741
15	single wiring seal for wire cross section: 5,6 X 7,82,5 5,6 X 7,82,5	357 972 741 B
16	Flat contact housing Connection piecedistance sensor Potentiometer Throttle valve automatic	357 972 753
17	Flat contact housing Connection piece Potentiometer Throttle valve AEK AEK	357 972 754
18	Bungs 4,0 X 7,8 4,0 X 7,8	357 972 840
18	Bungs 4,0 X 7,8 4,0 X 7,8	4B0 972 840
19	Bungs 5,6 X 7,8 5,6 X 7,8	357 972 841
2	Hexagon bolt M 8 X 10 M 8 X 10	N 010 235 3
2	Hexagon bolt M 8 X 10 M 8 X 10	N 010 235 8
20	flat connector housing	1H0 973 131
21	Bracket Connection pieceflat connector housing	051 971 501
22	terminal Connection piece Injector unit	050 971 847
3	Hexagon collar nut M 6 M 6	N 901 752 03
4	Flat contact housing Connection piece Distributor	357 905 327
5	flat contact housing withgasket Connection piecetemperature gauge Exhaust gas recirculation Temperature sensor Injection valveidling stabilsation Intake manifold	037 906 240
6	Bracket protective cover	357 906 732 A
7	Protective cap 32 X 10 32 X 10	191 919 083
8	Flat contact housing Connection piece Temperature sensor	357 919 754
9	Potential distributor	037 971 501 B
