Wiring set engine — Mk3 Golf Wiring Looms (1995)

Factory title: Volkswagen Golf (1995) - Adapter cable loom. Wiring set for engine

Generation: Mk3 1995 (RDW) Group: Wiring looms Parts: 21 Primary OEM: 037 971 842, 191 971 842 A, 037 971 824

Wiring set engine for the Volkswagen Golf Mk3 (1995): factory exploded diagram 971006 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 19 OEM part numbers across 21 catalogued positions including 037 971 842, 191 971 842 A and 037 971 824. Parts on this plate carry the engine codes 2E and ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 19 OEM part numbers across 21 numbered positions.

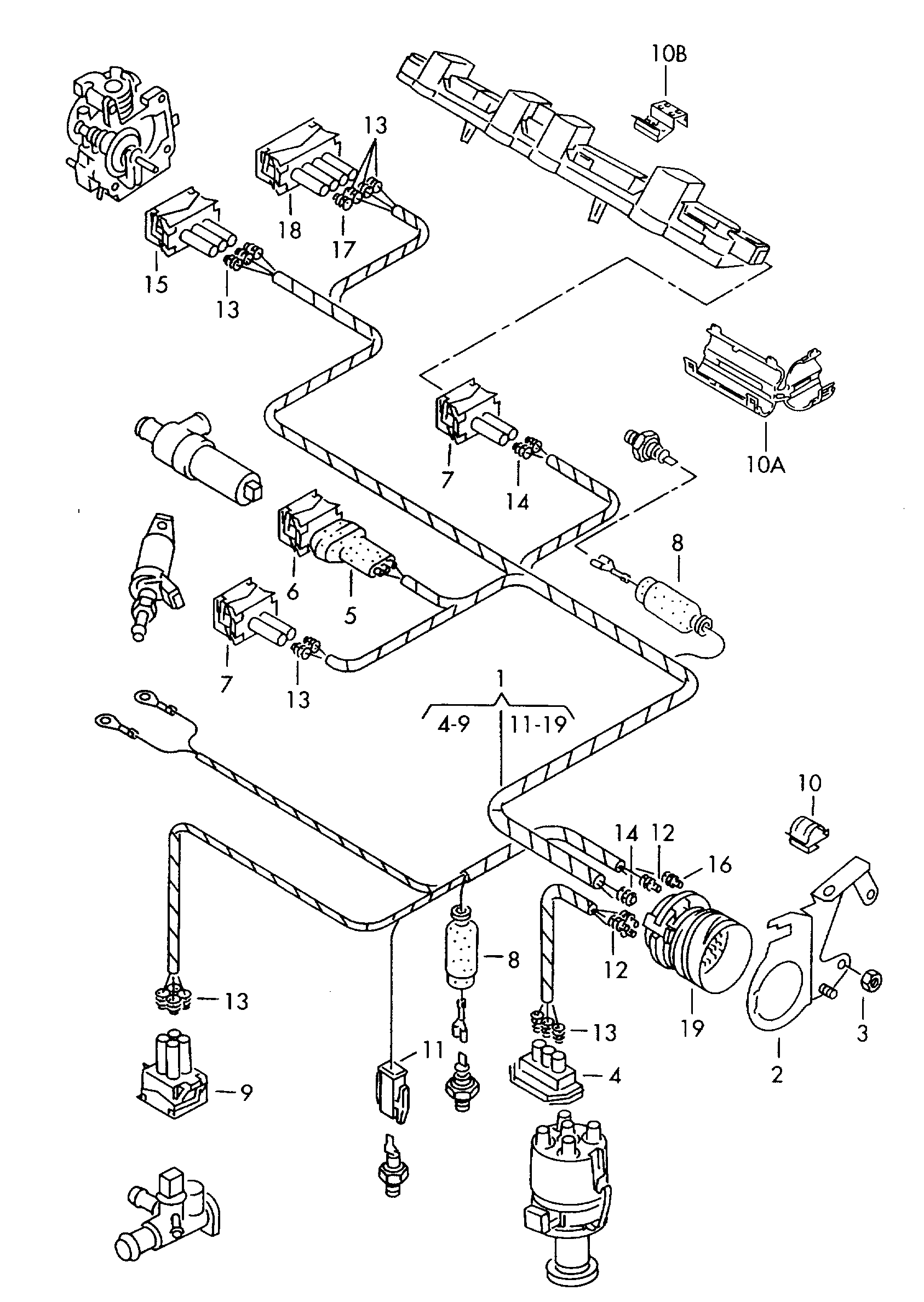

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Wiring set for engine F >> 1 H-SW 122 920 F >> 1 H-SP 080 000*F >> 1 H-SB 029 454 2 E,ABF 2EABF	—
	Wiring set for engine F >> 1 H-SW 122 920 F >> 1 H-SP 080 000*F >> 1 H-SB 029 454------------------------------Adapter cable loom Injection valve see illustration: 2 E,ABF 2 EABF 2E	—
-	terminal Connection piece Potentiometer Throttle valve Injector unit 2 E 2E	037 971 842
-	Cable holder Connection piece Potentiometer Throttle valve ABF ABF	191 971 842 A
-	Cable guide 2 E 2E	037 971 824
(1)	Wiring set for engine ABF ABF	037 971 595
(1)	Wiring set for engine 2 E 2E	037 971 595 P
(3)	Hexagon nut M 6 M 6	N 011 006 24
(7)	Flat contact housing Connection piece Injection valve ABF ABF	357 972 755
10	Bracket	803 959 849
11	Flat contact housing Connection piece Oil temperature sender Temperature sensor ABF ABF	191 971 922
15	Flat contact housing Connection piece Potentiometer Throttle valvedistance sensor ABF ABF	357 972 753
18	Flat contact housing Connection piece Potentiometer Automatic+2 E	357 972 754
19	flat connector housing Connection pieceharness for engine compartment	1H0 973 131
2	Bracket	037 971 501 D
4	Flat contact housing Connection piece Distributor	357 905 327
5	Protective cap	191 906 102
6	Flat contact housing Connection pieceidling stabilsation	443 906 233
7	flat contact housing withgasket Connection piece Adapter cable loom Injection valvecold starting valve Temperature sensor Switch Throttle valve also use: NTC 357 972 741 2 E 2 EABFABF NTC 357 972 741	037 906 240
8	Protective cap Connection piece Oil pressure switch 32 X 10 32 X 10	191 919 083
9	Flat contact housing Connection piece Temperature sensor	357 919 754
