Wiring set engine wiring set engine — Mk3 Golf Wiring Looms (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Wiring set for engine

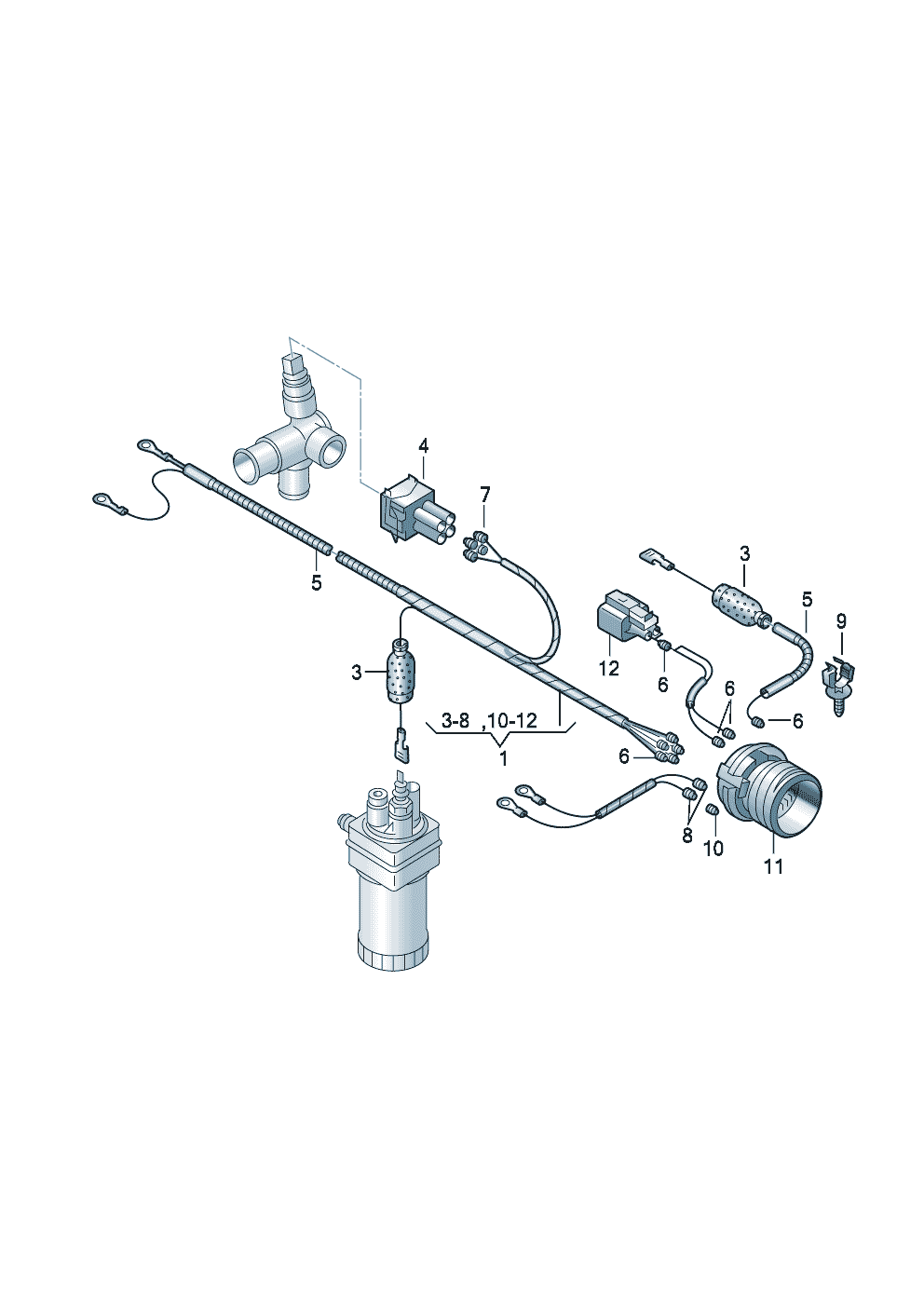

Wiring set engine wiring set engine for the Volkswagen Golf Mk3 (1997): factory exploded diagram 971010 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 19 OEM part numbers across 21 catalogued positions including 4B0 972 840, N 103 113 04 and N 906 819 01. Parts on this plate carry the engine code AAZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 19 OEM part numbers across 21 numbered positions.
| № | Description | Part number |
|---|---|---|
| Wiring set for engine Wiring set for engine Diesel eng.+1 Y,AAZ,ecomaticdiesel eng./"CH."/"J.."/"S.."/"FIN"/"N.."/"A..":AAZ AAZ | — | |
| Wiring set for engine Diesel eng.+1 Y,AAZ,ecomatic:"CH."/"J.."/"S.."/"FIN"/"N.."/"A..":AAZ AAZ | — | |
| - | Bungs 4,0 X 7,8 4,0 X 7,8 | 4B0 972 840 |
| - | Insulating tape 19 19 | N 103 113 04 |
| - | corrugated pipe end piece 4,5 4,5 | N 906 819 01 |
| (1) | Wiring set for engine also use: 111 971 940 A 000 979 107191 919 083 diesel eng./"CH."/"J.."/"S.."/"FIN"/"N.."/"A..":AAZ 111 971 940 A 000 979 107191 919 083 | 028 971 595 EL |
| (1) | Wiring set for engine diesel eng./"CH."/"J.."/"S.."/"FIN"/"N.."/"A..":AAZ | 028 971 595 AS |
| (4) | Flat contact housing Connection pieceoil temperature gauge | 191 971 922 |
| (9) | Cable tiescorrugated pipe 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 1 | Wiring set for engine Diesel eng.+1 Y,AAZ,ecomatic AAZ | 028 971 595 CB |
| 10 | Bungs 4,0 X 7,8 4,0 X 7,8 | 4B0 972 840 |
| 10 | Bungs 4,0 X 7,8 4,0 X 7,8 | 357 972 840 |
| 11 | flat connector housing | 1H0 973 131 D |
| 11 | flat connector housing also use: 4 B 0 972 840 4 B 0 972 840 | 6N0 973 131 |
| 12 | Flat contact housing withcontact locking mechanism | 6N0 973 702 |
| 3 | Protective cap 32 X 10 32 X 10 | 191 919 083 |
| 4 | Flat contact housing | 357 919 754 |
| 5 | corrugated pipe in coils of 5 m'order unit 5' 4,5 4,5 | N 906 355 17 |
| 6 | single wiring seal for wire cross section: 3,9 X 7,80,5-1,0 3,9 X 7,80,5-1,0 | 357 972 740 D |
| 7 | single wiring seal for wire cross section: 5,6 X 7,81,0 5,6 X 7,81,0 | 357 972 741 |
| 8 | single wiring seal for wire cross section: 9,0 X 7,82,5 9,0 X 7,82,5 | 357 972 742 B |
