Centre silencer rear silencer — Mk3 Golf Exhaust System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Exhaust manifolds

Generation: Mk3 1997 (RDW) Group: Exhaust system Parts: 51 Primary OEM: JZW 298 141 K, JZW 298 141 BP, 1H6 253 609 N

Centre silencer rear silencer for the Volkswagen Golf Mk3 (1997): factory exploded diagram 253080 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 45 OEM part numbers across 51 catalogued positions including JZW 298 141 K, JZW 298 141 BP and 1H6 253 609 N. Parts on this plate carry the engine codes 1Y, AAM, AAZ, ACC, ADZ, AEE, AEX and AEY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 45 OEM part numbers across 51 numbered positions.

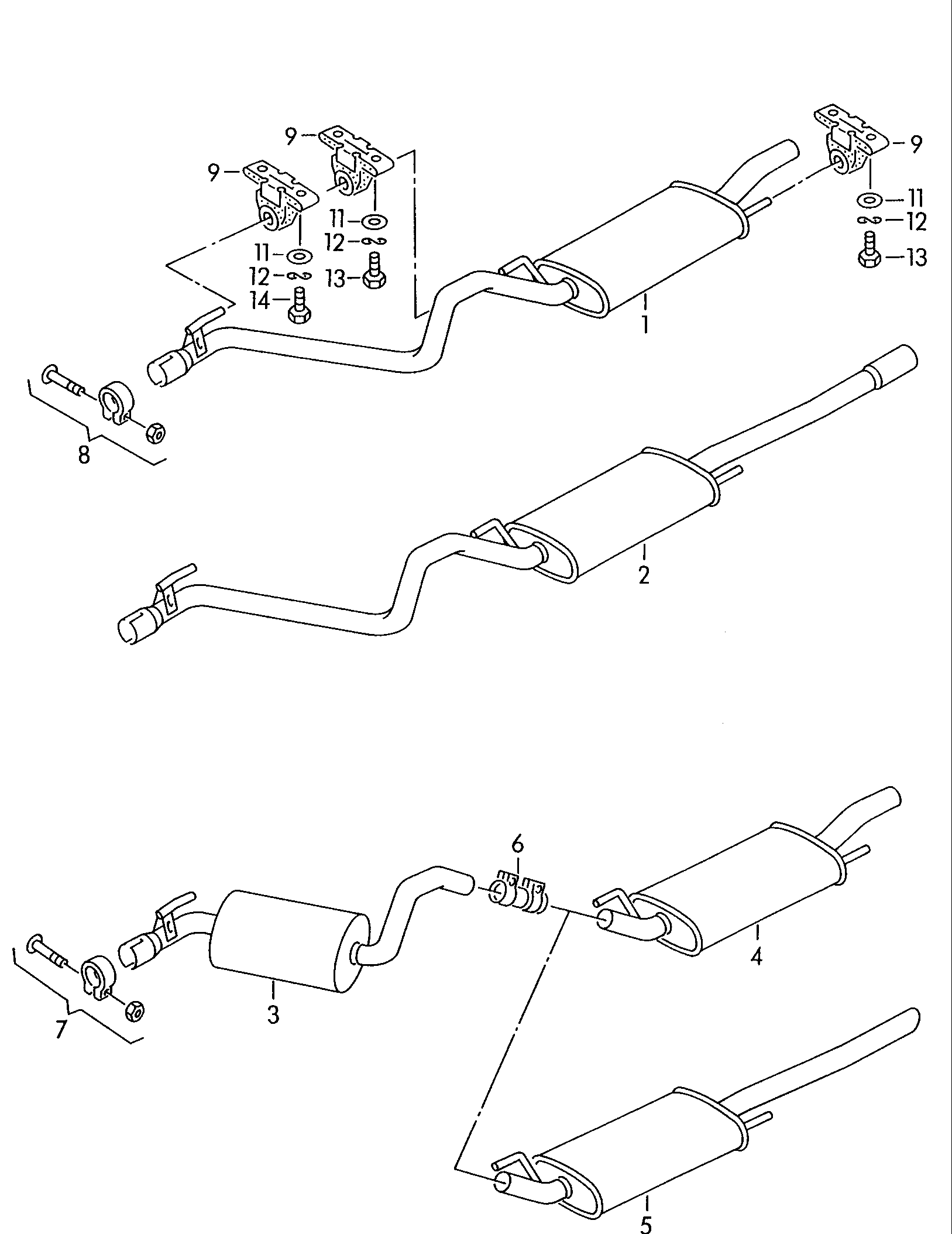

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Centre silencer Rear silencer For vehicles without exhaust-gas treatment system 1.9 ltr. Diesel eng.+1 Y 1.9 ltr. 1Y	—
	Centre silencer Rear silencer 1.4-1.9 ltr. 4-cylinder+AEX,AAM,ADZ,ACC,AEE,APQDiesel eng.+1 Y,AAZ 1.4-1.9 ltr. AAMAAZACCADZAEE	—
-	Fasteners 'ECO'Economy AEX,AAM,AEE AAMAEEAEX	JZW 298 141 K
-	Fasteners 'ECO'Economy	JZW 298 141 K
-	Fasteners 'ECO'Economy AAZ,ACC,ADZ AAZACCADZ	JZW 298 141 BP
-	Front silencer see illustration, item: 253-055,9 AEX 253-055,9 AEX	—
-	Fasteners 'ECO'Economy For vehicles without catalyticconverter 1 Y 1Y	JZW 298 141 K
(1)	Rear silencer(long-life version)	1H6 253 609 N
(1)	Rear silencer 'ECO'Economy For vehicles without catalyticconverter 1 Y 1Y	1H6 253 609 AC
(1)	Rear silencer 'ECO'Economy also use: JZW 298 141 K AEX,AAM,AEE JZW 298 141 K AAMAEEAEX	JZW 253 609 B
(1)	Rear silencer 'ECO'Economy AEX,AAM,AEE,APQ AAMAEEAEXAPQ	1H6 253 609 AC
(1)	Rear silencer 'ECO'	1H6 253 609 AC
(1)	Rear silencer 'ECO'Economy also use: JZW 298 141 K JZW 298 141 K	JZW 253 609 B
(1)	Rear silencer 'ECO'Economy For vehicles without catalyticconverter also use: JZW 298 141 K 1 Y JZW 298 141 K 1Y	JZW 253 609 B
(1)	Rear silencer(long-life version) AEX,AAM,AEE,APQ AAMAEEAEXAPQ	1H6 253 609 N
(1)	Rear silencer(long-life version)For vehicles without catalyticconverter 1 Y 1Y	1H6 253 609 N
(13)	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
(13)	Hexagon bolt M 8 X 18 M 8 X 18	111 821 145
(13)	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
(3)	Centre silencerfor models with catalyst 1 Y 1Y	1H0 253 409 G
(3)	Centre silencer 'ECO'Economy also use: JZW 298 141 BP AAZ JZW 298 141 BP AAZ	JZW 253 409 A
(3)	Centre silencer AAZ AAZ	1H0 253 409 R
(3)	Centre silencer AAZ AAZ	1H0 253 409 E
(3)	Centre silencer 'ECO'Economy also use: JZW 298 141 BP ACC,ADZ JZW 298 141 BP ACCADZ	JZW 253 409 A
(4)	Rear silencer 'ECO'Economy ACC,ADZ ACCADZ	JZW 253 609 AR
(4)	Rear silencer 'ECO'Economy AAZ AAZ	1H6 253 609 AE
(4)	Rear silencerfor models with catalyst(long-life version) 1 Y 1Y	1H6 253 609 AA
(4)	Rear silencer 'ECO'Economy ACC,ADZ ACCADZ	1H6 253 609 T
(4)	Rear silencer(long-life version) AAZ AAZ	1H6 253 609 AD
(6)	dual clipfor models with catalyst 45 1 Y 45 1Y	1H0 253 141 B
(7)	Clamp 47,4 MM 1 Y,AEY,ecomatic 47,4 MM 1YAEY	191 253 139 Q
(8)	Clamp 47,4 MM AEX,AAM,AEE,1 Y,APQ 47,4 MM 1YAAMAEEAEXAPQ	191 253 139 Q
(9)	Bracket also use: N 010 239 11 N 010 239 11	1H0 253 144 C
(9)	Bracket also use: N 010 239 11 N 010 239 11	1H0 253 144 C
(9)	Bracket also use: 111 821 145 111 821 145	1H0 253 144 C
11	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
11	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
12	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
12	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
12	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
12	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
14	Not for this model	—
2	Not for this model	—
3	Centre silencer ACC,ADZ ACCADZ	1H0 253 409 Q
3	Centre silencer ACC,ADZ ACCADZ	1H0 253 409 B
4	Rear silencer(long-life version) ACC,ADZ ACCADZ	1H6 253 609 P
4	Rear silencer 'ECO'Economyfor models with catalyst 1 Y 1Y	1H6 253 609 AB
5	Not for this model	—
6	dual clip 50 ACC,ADZ,AAZ 50 AAZACCADZ	893 253 139
7	Clamp 54,5 ACC,ADZ,AAZ 54,5 AAZACCADZ	191 253 139 G
8	Clamp 47,4 MM 47,4 MM	191 253 139 Q
