Exhaust pipe catalytic converter intermediate pipe — Mk3 Golf Exhaust System (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Exhaust manifolds

Generation: Mk3 1993 - 1996 (MEX) Group: Exhaust system Parts: 42 Primary OEM: 1H2 253 087 F, 357 253 701 P, 191 253 091 BB

Exhaust pipe catalytic converter intermediate pipe for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 253058 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 41 OEM part numbers across 42 catalogued positions including 1H2 253 087 F, 357 253 701 P and 191 253 091 BB. Parts on this plate carry the engine codes ABA and ADC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 41 OEM part numbers across 42 numbered positions.

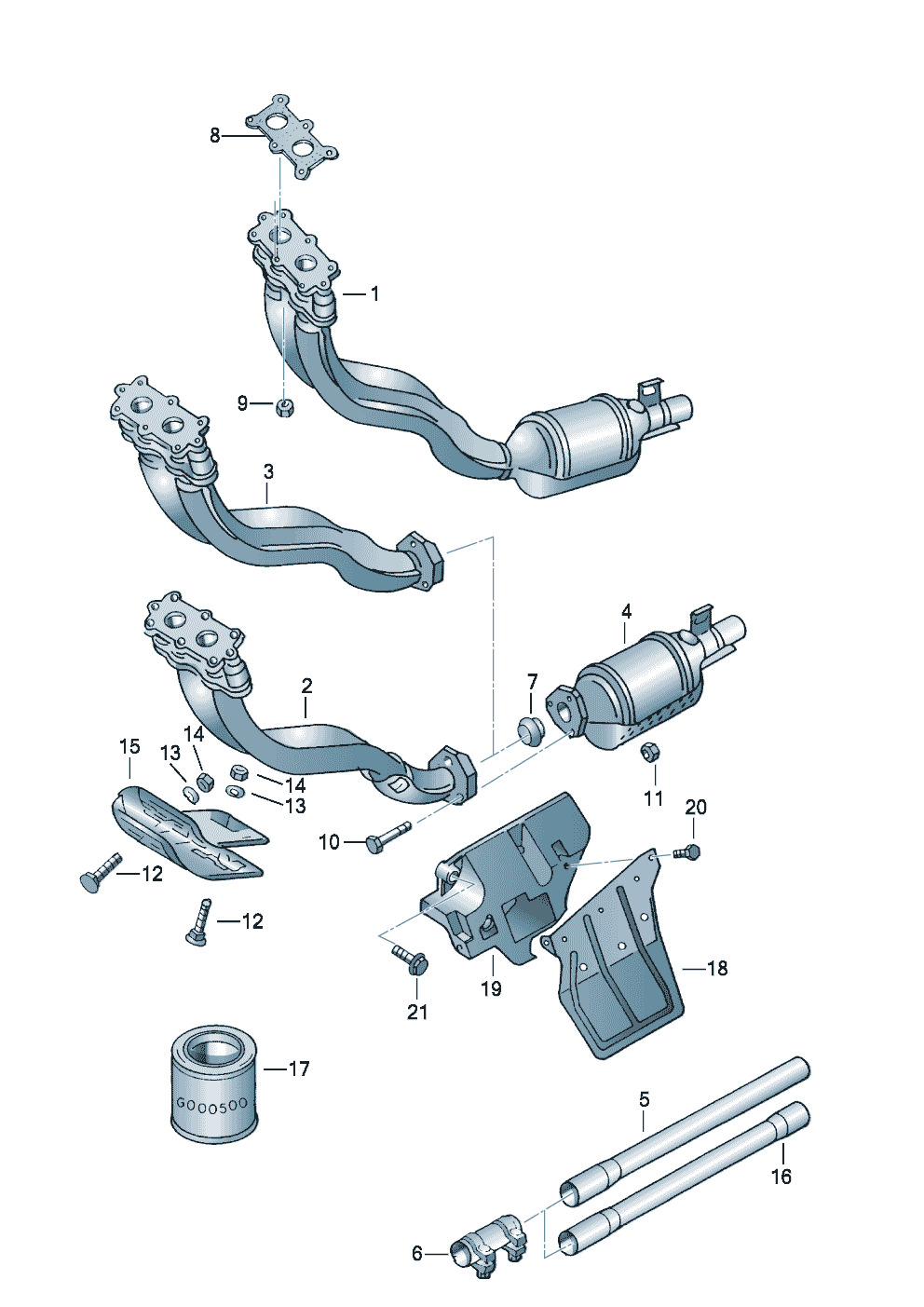

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Exhaust pipe Catalytic converter Intermediate pipe 2.0 Ltr. 4-cylinder+ABA,ADC
2.0 Ltr.
ADC
—
(1)
Exhaust pipe F 1 H-R-075 764>> 1 H-S-027 025 also use: 357 131 701 CX 357 253 137 AN 102 299 01 N 900 850 01 "USA","CDN"+ABA
357 131 701 CX 357 253 137 AN 102 299 01 N 900 850 01
 1H2 253 087 F
(15)
Guard plate F 1 H-P-008 191>> ABA,ADC
ABAADC
357 253 701 P
(2)
Exhaust pipefor models with catalyst central ands. america:ABA,ADC
ADC
191 253 091 BB
(2)
Exhaust pipe central ands. america:ABA,ADC
ADC
191 253 091 M
(3)
Exhaust pipe F 1 H-R-075 764>> 1 H-S-027 025 also use: 357 131 701 CX 357 253 137 AN 102 299 01 N 102 850 01 "USA","CDN"+ABA
357 131 701 CX 357 253 137 AN 102 299 01 N 102 850 01
 1H2 253 087 F
(4)
Catalytic converter F >> 1 H-R-075 763 CALIFORNIA+ABA
 357 131 701 CX
(4)
Catalytic converter F >> 1 H-R-075 763 "USA"+ABA
 165 131 701 EX
(4)
Catalytic converter F 1 H-T-000 001>> "USA"+ABA
 1HM 131 701 QX
(4)
Catalytic converter F 1 H-S-027 026>> 1 H-S-999 000 F 1 H-S-027 026>> "CDN"+ABA"CDN"+ABA
 1HM 131 701 R
(4)
Catalytic converter F 1 H-S-027 026>> 1 H-S-999 000 F 1 H-S-027 026>> "CDN"+ABA"CDN"+ABA
 1HM 131 701 RX
(4)
Catalytic converter F 1 H-T-000 001>> "USA"+ABA
 1HM 131 701 QX
(4)
Catalytic converter F 1 H-T-000 001>> "USA"+ABA
 1H0 131 702 BX
(4)
Catalytic converter F 1 H-T-000 001>> "USA"+ABA
 1H0 131 702 BX
(4)
Exhaust pipe with catalyst central ands. america:ABA,ADC
ADC
1HM 253 208 BB
(5)
Intermediate pipe F 1 H-R-024 402>>F 1 H-R-304 987>> ADC"BR."+ADC
 1HM 253 203 C
(6)
Clamp 59,5 central ands. america:ABA
59,5
 1H0 253 139 D
(6)
Clamp F 1 H-R-024 402>>F 1 H-R-304 987>> 54,5 ADC"BR."+ADC
54,5
 191 253 139 G
(6)
Clamp F >> 1 H-R-024 401 F >> 1 H-R-304 986 59,5 ABA"BR."+ABA
59,5
 1H0 253 139 D
(7)
Seal F 1 H-S-017 945>> "USA","CDN"+ABA
 1H0 253 115 C
(8)
Seal F 1 H-S-017 945>> "USA","CDN"+ABA
 1J0 253 115 J
1
Exhaust pipe with catalyst F 1 H-R-024 402>>F 1 H-R-304 987>> ADC"BR."+ADC
 1HM 253 208 BA
10
Hexagon bolt M 8 X 45
M 8 X 45
 N 010 345 10
11
hexagon nut, self-locking M 8
M 8
 N 022 146 4
12
flat round head bolt M 6 X 75
M 6 X 75
 N 100 168 01
13
Washer 6,4 X 18 X 1,6
6,4 X 18 X 1,6
 N 011 666 15
14
hexagon nut, self-locking M 6
M 6
 N 011 183 12
15
Guard plate F >> 1 H-P-008 190 ABA
ABA
357 253 701 P
15
Guard plate F >> 1 H-P-008 190 ABA
ABA
357 253 701 B
15
Guard plate "USA","CDN"+ABA
 357 253 701 P
17
hot-bolt-paste 170 G
170 G
 G 052 112 A3
2
Exhaust pipefor models with catalyst F >> 1 H-R-024 401 F >> 1 H-R-304 986 ABA.ADC"BR.":ABA
 191 253 091 BB
2
Exhaust pipe F >> 1 H-R-024 401 F >> 1 H-R-304 986 ABA,ADC"BR."+ABA
ABA
191 253 091 M
2
Exhaust pipe F >> 1 H-R-075 763 "USA","CDN"+ABA
 191 253 091 M
3
Exhaust pipe also use: N 016 161 6 N 013 816 5 "CDN"+ABA
N 016 161 6 N 013 816 5
 1HM 253 087 G
5
Intermediate pipe F >> 1 H-S-054 189 "USA","CDN"+ABA
 1HM 253 201 M
5
Intermediate pipe F >> 1 H-R-024 401 F 1 H-P-000 001>>F >> 1 H-R-304 986 ABA,ADCcentral ands. america:ABA,ADC"BR.":ABA,
ABA
1HM 253 203 D
5
Intermediate pipe F 1 H-S-054 190>>F >> 1 H-R-024 401 F 1 H-P-000 001>>F >> 1 H-R-304 986 "USA","CDN"ABA,ADCcentral ands. america:ABA,ADC"BR."+ABA,
 1HM 253 201 M
7
seal ring F >> 1 H-R-075 764 F >> 1 H-R-024 401 F >> 1 H-R-304 986 60/60 "USA","CDN"ADC"BR."+ADC
60/60
 357 253 137 A
8
Seal
 533 253 115 C
8
Seal F >> 1 H-S-017 944 "USA","CDN"+ABA
 533 253 115 C
9
hexagon nut, self-locking M 10
M 10
 N 102 090 05

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Engine codes on this plate
ABA, ADC
Variant tags
petrol_8v_gti_or_gl
Factory group
17 Exhaust system
Factory subgroup
253058

Related factory diagrams

Other published exhaust system plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the exhaust pipe catalytic converter intermediate pipe diagram for the Mk3 Golf?
This diagram lists 41 OEM part numbers for the Mk3 Golf. The first three are 1H2 253 087 F, 357 253 701 P and 191 253 091 BB.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes ABA and ADC.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
