Which VW part numbers are on the exhaust pipe catalytic converter front silencer diagram for the Mk3 Golf?

This diagram lists 29 OEM part numbers for the Mk3 Golf. The first three are 1H0 253 087 H, 3A0 253 091 J and 1H0 253 091 AC.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1995 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, AAZ and AEY.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Exhaust pipe catalytic converter front silencer — Mk3 Golf Exhaust System (1995)

Factory title: Volkswagen Golf (1995) - Exhaust manifolds

Generation: Mk3 1995 (RDW) Group: Exhaust system Parts: 30 Primary OEM: 1H0 253 087 H, 3A0 253 091 J, 1H0 253 091 AC

Exhaust pipe catalytic converter front silencer for the Volkswagen Golf Mk3 (1995): factory exploded diagram 253060 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 29 OEM part numbers across 30 catalogued positions including 1H0 253 087 H, 3A0 253 091 J and 1H0 253 091 AC. Parts on this plate carry the engine codes 1Y, 1Z, AAZ and AEY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 29 OEM part numbers across 30 numbered positions.

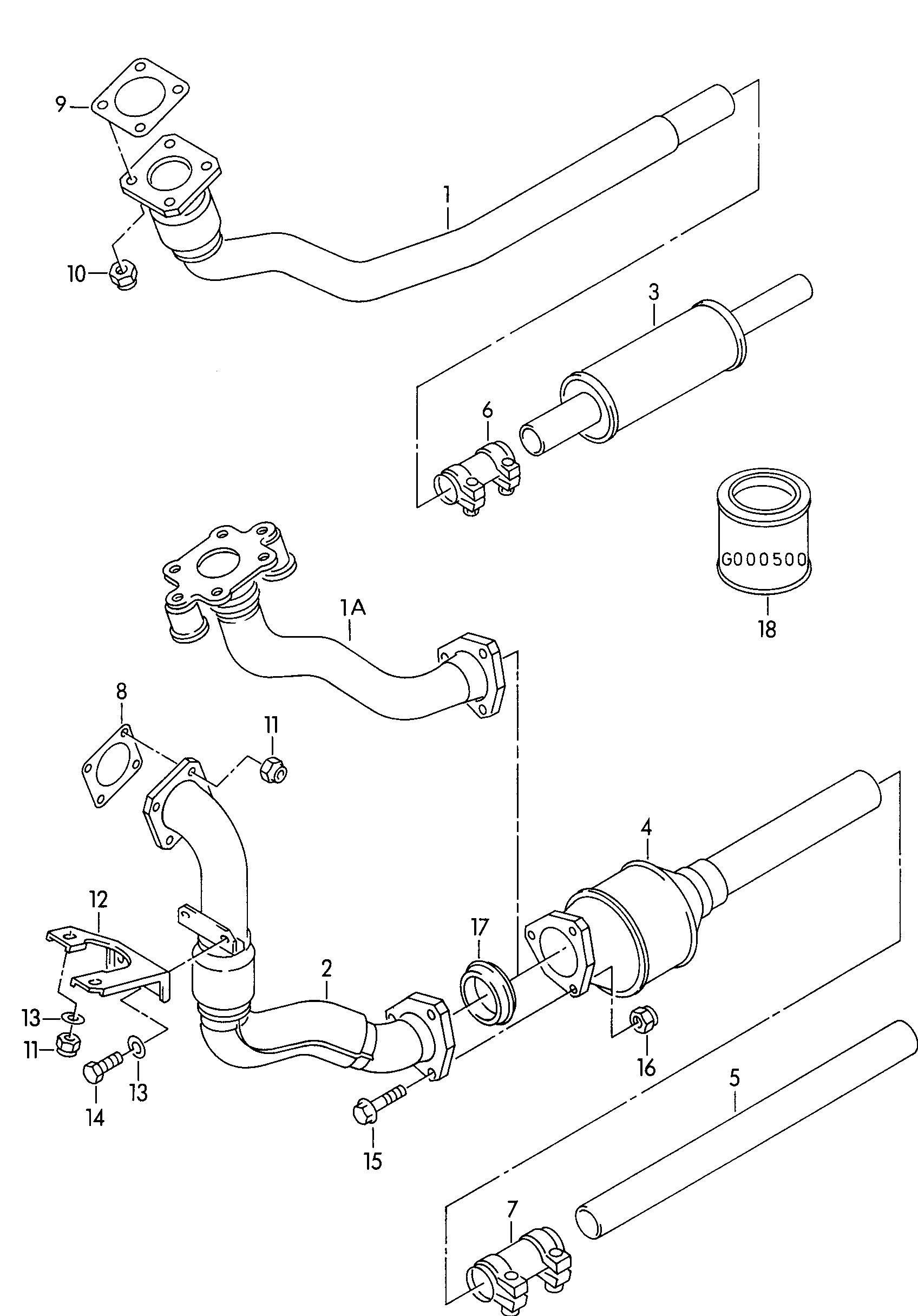

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust pipe Catalytic converter Front silencer Intermediate pipe 1.9 ltr. 4-cylinder+Diesel eng.+1 Y,AAZ,1 Z,AEY 1.9 ltr. 1ZAAZAEY	—
(2)	Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 AAZ 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 AAZ	1H0 253 087 H
(2)	Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 1 Z 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 1Z	3A0 253 091 J
(2)	Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1 Z 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1Z	3A0 253 091 J
(2)	Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1 Z 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1Z	1H0 253 091 AC
(2)	Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 AAZ 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 AAZ	1H0 253 087 H
(4)	Catalytic converter use if required: 1 H 0 253 087 H 3 A 0 253 091 J 1 H 0 253 091 RN 102 299 01 N 902 264 03 AAZ 1 Z 1 Y,AEY 1 H 0 253 087 H 3 A 0 253 091 J 1 H 0 253 091 RN 102 299 01 N 902 264 03 AEY	028 131 701 BX
(4)	Catalytic converter use if required: 1 H 0 253 087 H 1 H 0 253 091 AC 1 H 0 253 091 RN 102 299 01 N 905 194 01 AAZ 1 Z 1 Y,AEY 1 H 0 253 087 H 1 H 0 253 091 AC 1 H 0 253 091 RN 102 299 01 N 905 194 01 AEY	028 131 701 BX
(5)	Intermediate pipe 1 Z,AAZ 1ZAAZ	1H0 253 203 A
(5)	Intermediate pipe 50/42 1 Y 50/42 1Y	191 253 203 F
(8)	Seal AAZ,1 Z 1ZAAZ	1H0 253 115 A
1	Exhaust pipe For vehicles without exhaust-gas treatment system 1 Y 1Y	1H0 253 091 L
1	Exhaust pipe For vehicles without exhaust-gas treatment system 1 Y 1Y	1H0 253 091 AT
10	hexagon nut, self-locking M 10 1 Y,AEY M 10 1YAEY	N 102 090 05
10	hexagon nut, self-locking M 10 1 Y,AEY M 10 1YAEY	N 900 876 02
11	Hexagon collar nutself-locking M 8 AAZ,1 Z M 8 1ZAAZ	N 902 002 01
12	Bracket AAZ AAZ	191 253 197
13	Washer 6,4 X 18 X 1,6 AAZ 6,4 X 18 X 1,6 AAZ	N 011 666 15
14	Hexagon bolt M 8 X 15 AAZ M 8 X 15 AAZ	N 010 238 20
15	Hex collared bolt M 8 X 50 M 8 X 50	N 102 299 01
16	hexagon nut, self-locking M 8 M 8	N 022 146 4
17	seal ring 60/60 60/60	357 253 137 A
18	hot-bolt-paste 170 G 170 G	G 052 112 A3
1A	Exhaust pipefor models with catalyst use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 1 Y,AEY 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 1YAEY	1H0 253 091 R
1A	Exhaust pipefor models with catalyst use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1 Y,AEY 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1YAEY	1H0 253 091 R
3	Front silencer For vehicles without exhaust-gas treatment system 1 Y 1Y	1H0 253 209 G
5	Intermediate pipefor models with catalyst AEY AEY	1H0 253 203 E
6	dual clip For vehicles without exhaust-gas treatment system 42 1 Y 42 1Y	191 253 141 E
7	dual clipfor models with catalyst 50 50	191 253 141 F
9	Seal 1 Y,AEY 1YAEY	155 253 115

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: 1Y, 1Z, AAZ, AEY
Variant tags: diesel
Factory group: 17 Exhaust system
Factory subgroup: 253060
