Exhaust manifolds — Mk3 Golf Exhaust System (1995)

Factory title: Volkswagen Golf (1995) - Exhaust manifolds

Generation: Mk3 1995 (RDW) Group: Exhaust system Parts: 31 Primary OEM: 028 253 031 T, 028 253 031 Q, 028 253 031 L

Exhaust manifolds for the Volkswagen Golf Mk3 (1995): factory exploded diagram 253030 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 28 OEM part numbers across 31 catalogued positions including 028 253 031 T, 028 253 031 Q and 028 253 031 L. Parts on this plate carry the engine codes 1Y, 1Z and AAZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 28 OEM part numbers across 31 numbered positions.

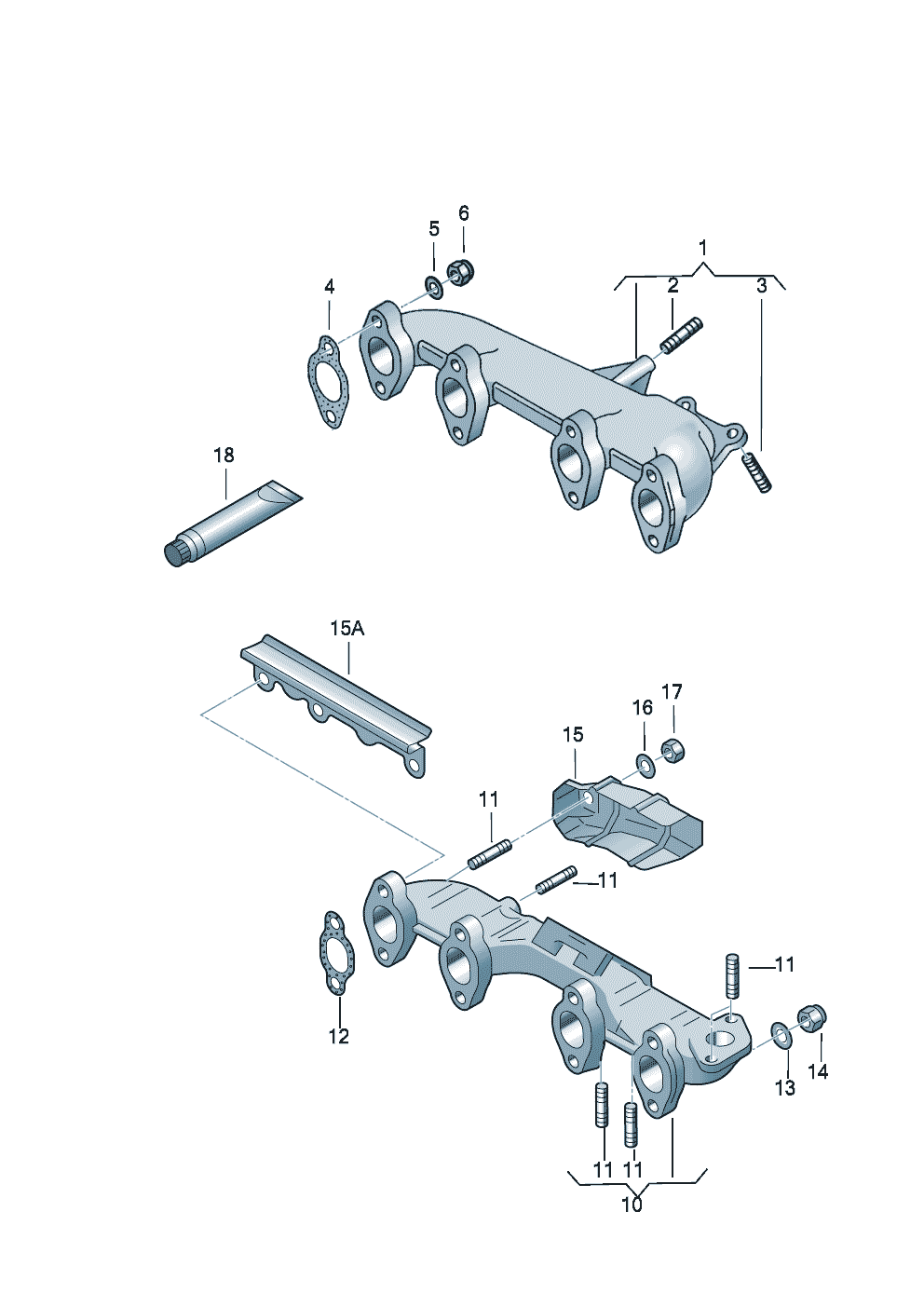

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust manifolds 1.9 ltr. Diesel eng.+AAZ,1 Z 1.9 ltr. 1Z	—
	Exhaust manifolds Diesel eng.+1 Y,AAZ,1 Z 1ZAAZ	—
	Exhaust manifolds 1.9 ltr. Diesel eng.+1 Y 1.9 ltr. 1Y	—
(1)	Exhaust manifolds For vehicles with exhaust gasrecirculation	028 253 031 T
(10)	Exhaust manifolds For vehicles without exhaustgas recirculation AAZ AAZ	028 253 031 Q
(10)	Exhaust manifolds For vehicles with exhaust gasrecirculation AAZ AAZ	028 253 031 L
(10)	Exhaust manifolds 1 Z 1Z	028 253 031 S
(11)	Threaded pin M 8 X 22 1 Z M 8 X 22 1Z	N 044 509 3
(11)	Threaded pin M 8 X 25 1 Z M 8 X 25 1Z	N 044 408 3
(11)	Threaded pin M 8 X 25 M 8 X 25	N 044 514 5
(15)	Heat shield 1 Z 1Z	028 129 969
(18)	hot-bolt-paste 170 G 170 G	G 052 112 A3
(2)	Threaded pin M 8 X 25 M 8 X 25	N 044 514 5
(4)	Seal	037 253 039
(4)	Seal	028 129 589 B
1	Exhaust manifolds For vehicles without exhaustgas recirculation ECOMATIC	028 253 031 M
11	Threaded pin M 8 X 18 M 8 X 18	N 044 511 3
12	Seal	028 129 589 B
13	Washer 8,4 X 15 X 4 8,4 X 15 X 4	N 900 955 01
14	Hexagon collar nutself-locking M 8 M 8	N 902 002 01
15	Heat shield AAZ AAZ	028 129 969 A
15	Cover AAZ AAZ	068 129 595 D
15A	Support F 1 H-SW 400 001>>F 1 H-SB 105 001>> 1 Z 1Z	044 253 048 A
16	Washer 8,4 X 15 X 1,6 1 Y,AAZ 1 Z 8,4 X 15 X 1,6 1Y	N 011 558 11
17	hexagon nut, self-locking M 8 1 Y,AAZ 1 Z M 8 1Y	N 900 850 01
17	hexagon nut, self-locking M 8 1 Y,AAZ 1 Z M 8 1Y	059 129 601
2	Threaded pin M 8 X 18 ECOMATIC M 8 X 18	N 044 511 3
2	Threaded pin M 8 X 18 ECOMATIC M 8 X 18	N 044 511 2
3	Threaded pin M 10 X 28 M 10 X 28	N 044 520 3
5	Washer 8,4 X 15 X 4 8,4 X 15 X 4	N 900 955 01
6	Hexagon collar nutself-locking M 8 M 8	N 902 002 01
