Exhaust manifolds — Mk3 Golf Exhaust System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Exhaust manifolds

Generation: Mk3 1997 (RDW) Group: Exhaust system Parts: 21 Primary OEM: N 902 218 03, N 013 814 9, N 902 889 01

Exhaust manifolds for the Volkswagen Golf Mk3 (1997): factory exploded diagram 253020 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 20 OEM part numbers across 21 catalogued positions including N 902 218 03, N 013 814 9 and N 902 889 01. Parts on this plate carry the engine code ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 20 OEM part numbers across 21 numbered positions.

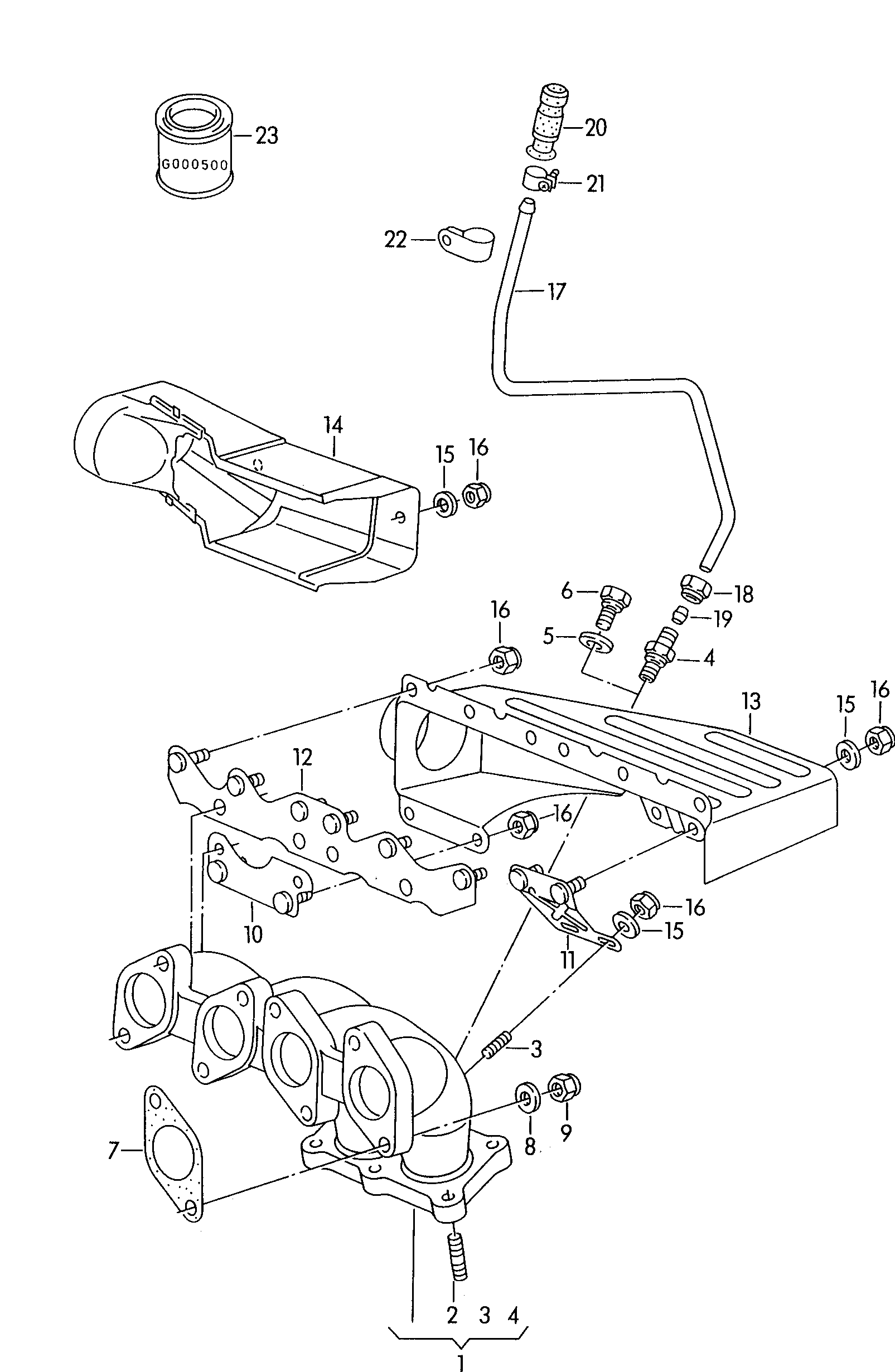

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust manifolds 2.0 Ltr. ABF 2.0 Ltr. ABF	—
-	Socket head bolt with hexagonsocket head (combination) M 8 X 20 M 8 X 20	N 902 218 03
-	seal ring 14,2 X 17,9 X 1,5 14,2 X 17,9 X 1,5	N 013 814 9
-	oil drain plug M 14 X 1,5 X 16 M 14 X 1,5 X 16	N 902 889 01
(1)	Exhaust manifolds	037 253 031 BK
(1)	Exhaust manifolds also use: N 013 814 9 N 902 889 01 N 013 814 9 N 902 889 01	027 253 031 BH
(10)	Bracket	037 253 084 J
(11)	Support	037 253 070
(13)	warm air deflector plate	037 253 041 AK
(23)	hot-bolt-paste 170 G 170 G	G 052 112 A3
15	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
16	hexagon nut, self-locking M 8 M 8	059 129 601
16	hexagon nut, self-locking M 8 M 8	N 900 850 01
2	Threaded pin M 10 X 28 M 10 X 28	N 044 520 3
3	Threaded pin M 8 X 18 M 8 X 18	N 044 511 2
3	Threaded pin M 8 X 18 M 8 X 18	N 044 511 3
5	seal ring 12 X 15,5 X 1,5 12 X 15,5 X 1,5	N 013 812 8
6	sealing plug M 12 X 1,5 M 12 X 1,5	N 016 153 1
7	Seal	027 129 589 A
8	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
9	Hexagon collar nutself-locking M 8 M 8	N 902 002 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: ABF
Variant tags: petrol_8v_gti_or_gl
Factory group: 17 Exhaust system
Factory subgroup: 253020
