Exhaust manifolds — Mk3 Golf Exhaust System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Exhaust manifolds

Generation: Mk3 1997 (RDW) Group: Exhaust system Parts: 17 Primary OEM: 051 253 031 R, 051 253 031 N, 048 253 084 B

Exhaust manifolds for the Volkswagen Golf Mk3 (1997): factory exploded diagram 253010 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 16 OEM part numbers across 17 catalogued positions including 051 253 031 R, 051 253 031 N and 048 253 084 B. Parts on this plate carry the engine codes AAM, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 16 OEM part numbers across 17 numbered positions.

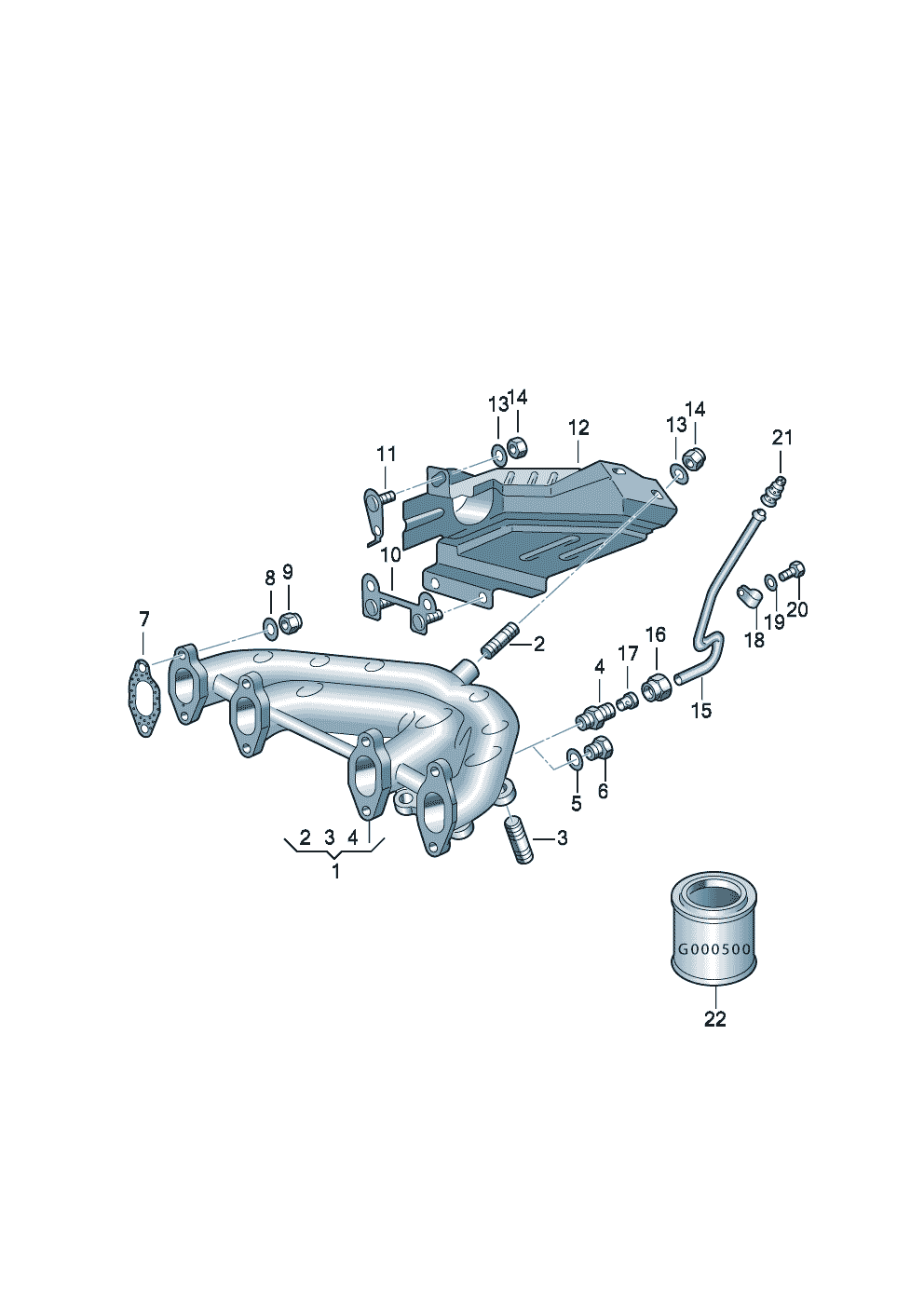

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust manifolds 1.8 ltr. AAM,ADZ,ACC 1.8 ltr. AAMACCADZ	—
(1)	Exhaust manifolds AAM AAM	051 253 031 R
(1)	Exhaust manifolds ADZ,ACC ACCADZ	051 253 031 N
(10)	Bracket	048 253 084 B
(12)	warm air deflector plate	051 253 041 D
(12)	warm air deflector plate	051 253 041 J
(14)	Hexagon collar nut M 8 M 8	N 015 083 11
(22)	hot-bolt-paste 170 G 170 G	G 052 112 A3
(7)	Seal	037 253 039 D
13	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
14	hexagon nut, self-locking M 8 M 8	N 900 850 01
2	Threaded pin M 8 X 18 M 8 X 18	N 044 511 3
2	Threaded pin M 8 X 18 M 8 X 18	N 044 511 2
3	Threaded pin M 10 X 28 M 10 X 28	N 044 520 3
8	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
9	hexagon nut, self-locking M 8 M 8	059 129 601
9	hexagon nut, self-locking M 8 M 8	N 900 850 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAM, ACC, ADZ
Variant tags: petrol_8v_gti_or_gl
Factory group: 17 Exhaust system
Factory subgroup: 253010
