Exhaust manifolds — Mk3 Golf Exhaust System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Exhaust manifolds

Generation: Mk3 1997 (RDW) Group: Exhaust system Parts: 16 Primary OEM: N 016 161 6, N 013 832 6, 032 253 031 G

Exhaust manifolds for the Volkswagen Golf Mk3 (1997): factory exploded diagram 253005 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 15 OEM part numbers across 16 catalogued positions including N 016 161 6, N 013 832 6 and 032 253 031 G. Parts on this plate carry the engine codes AEE, AEX and APQ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 15 OEM part numbers across 16 numbered positions.

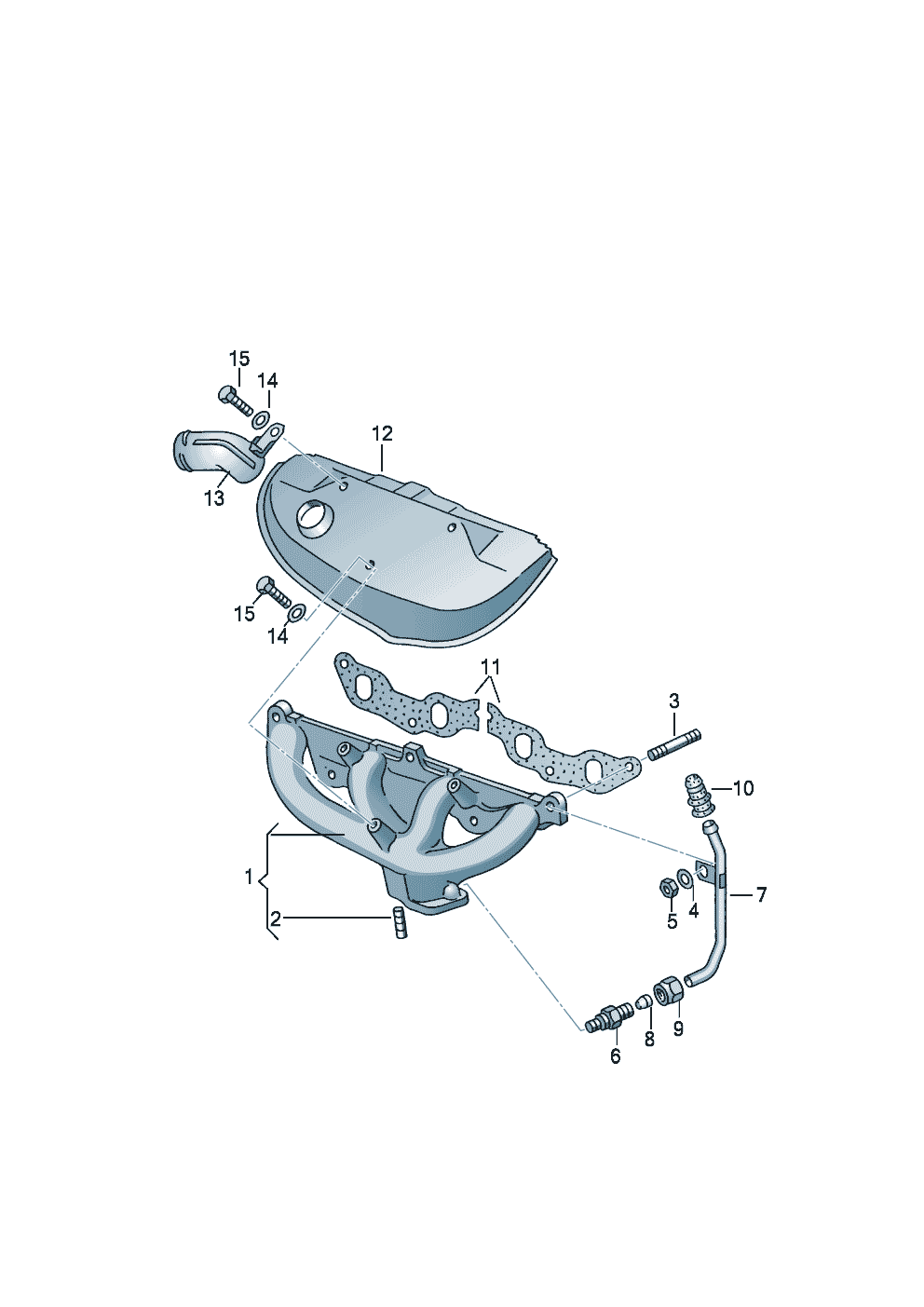

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust manifolds 1.4/1.6 ltr. AEX,AEE,APQ 1.4/1.6 ltr. AEEAEXAPQ	—
-	sealing plug M 18 X 1,5 AEX,APQ M 18 X 1,5 AEXAPQ	N 016 161 6
-	seal ring 18 X 22 AEX,APQ 18 X 22 AEXAPQ	N 013 832 6
(1)	Exhaust manifolds AEE AEE	032 253 031 G
(1)	Exhaust manifolds F 1 H-V-180 001>>F 1 H-VB 060 001>> AEX AEX	030 253 031 K
(1)	Exhaust manifolds AEX,APQ AEXAPQ	030 253 031 J
(11)	Seal	032 253 039 E
(12)	warm air deflector plate AEE AEE	032 253 041 G
(12)	warm air deflector plate F >> 1 H-V-180 000F >> 1 H-VB 060 000 AEX AEX	030 253 041 A
(15)	warm air deflector plate AEX,APQ AEXAPQ	030 253 041 B
(15)	hexagon head bolt (combi) M 6 X 10-S 1-N M 6 X 10-S 1-N	N 101 005 03
(2)	Threaded pin M 10 X 25 AEE M 10 X 25 AEE	N 900 717 02
2	Threaded pin M 10 X 28 AEX,APQ M 10 X 28 AEXAPQ	N 044 520 3
4	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
5	hexagon nut, self-locking M 8 M 8	N 900 850 01
5	hexagon nut, self-locking M 8 M 8	059 129 601

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AEE, AEX, APQ
Variant tags: petrol_8v_base
Factory group: 17 Exhaust system
Factory subgroup: 253005
