Exhaust manifolds — Mk3 Golf Exhaust System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Exhaust manifolds

Generation: Mk3 1997 (RDW) Group: Exhaust system Parts: 17 Primary OEM: N 013 814 9, N 902 889 01, G 052 112 A3

Exhaust manifolds for the Volkswagen Golf Mk3 (1997): factory exploded diagram 253025 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 16 OEM part numbers across 17 catalogued positions including N 013 814 9, N 902 889 01 and G 052 112 A3. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 16 OEM part numbers across 17 numbered positions.

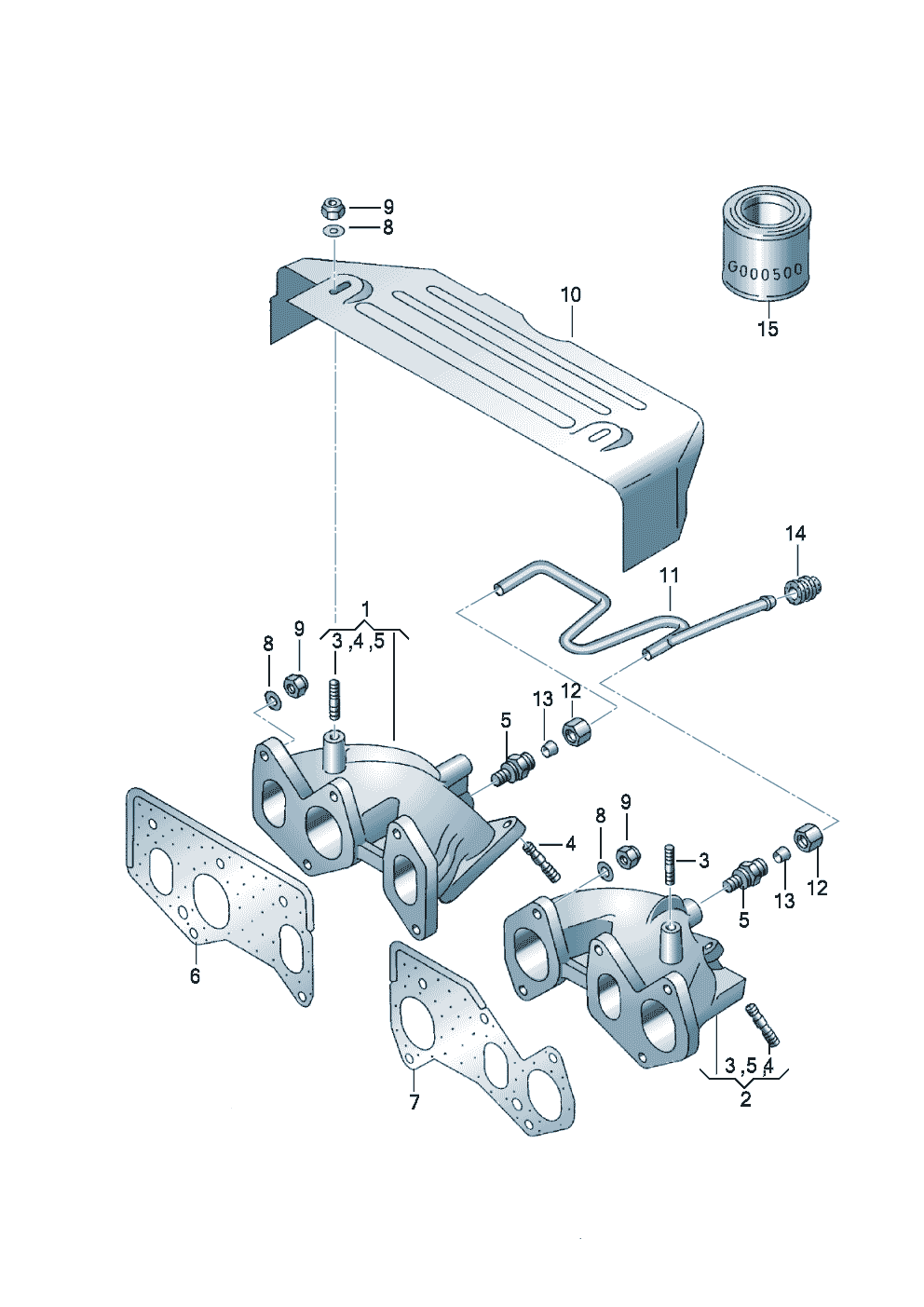

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust manifolds 2.8 Ltr. 6-cylinder+AAA 2.8 Ltr.	—
-	seal ring 14,2 X 17,9 X 1,5 14,2 X 17,9 X 1,5	N 013 814 9
-	oil drain plug M 14 X 1,5 X 16 M 14 X 1,5 X 16	N 902 889 01
(15)	hot-bolt-paste 170 G 170 G	G 052 112 A3
1	Exhaust manifolds	021 253 031 C
10	warm air deflector plate	021 253 037 E
2	Exhaust manifolds	021 253 032 E
3	Threaded pin AM 8 AX 25 AM 8 AX 25	N 014 530 5
4	Threaded pin M 10 X 28 M 10 X 28	N 044 520 3
5	connection piece 8 8	N 020 801 2
6	Seal	021 253 039 C
6	Seal	021 253 039 E
7	Seal	021 253 050
7	Seal	021 253 050 B
8	Washer 8,4 X 15 X 4 8,4 X 15 X 4	N 900 955 01
9	hexagon nut, self-locking M 8 M 8	059 129 601
9	hexagon nut, self-locking M 8 M 8	N 900 850 01
