Exhaust pipe catalytic converter front silencer — Mk3 Golf Exhaust System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Exhaust manifolds

Generation: Mk3 1997 (RDW) Group: Exhaust system Parts: 38 Primary OEM: 1H0 253 058 FX, 3A0 253 091 J, 1H0 253 091 AC

Exhaust pipe catalytic converter front silencer for the Volkswagen Golf Mk3 (1997): factory exploded diagram 253060 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 37 OEM part numbers across 38 catalogued positions including 1H0 253 058 FX, 3A0 253 091 J and 1H0 253 091 AC. Parts on this plate carry the engine codes 1Y, 1Z, AAZ, AEY, AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 37 OEM part numbers across 38 numbered positions.

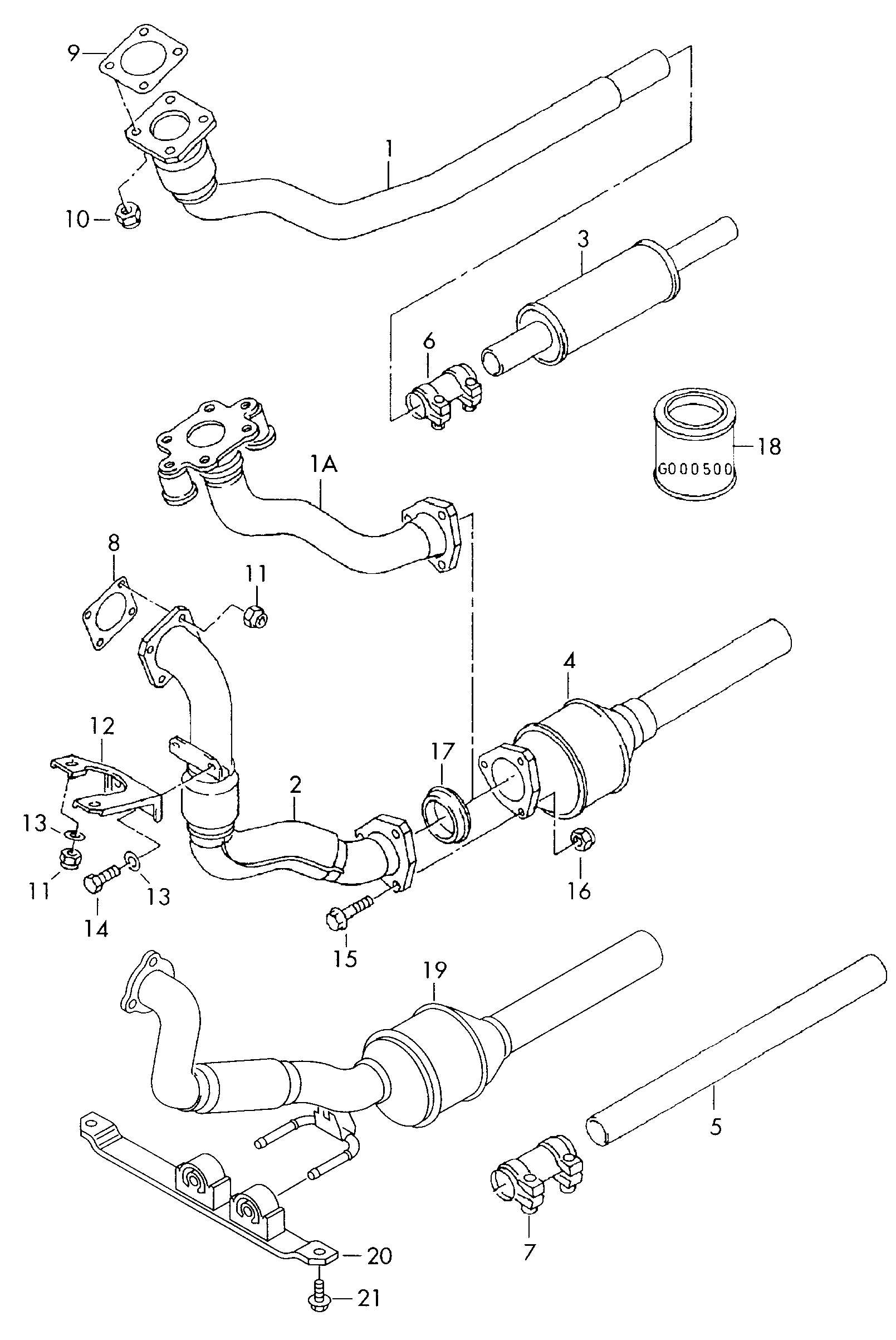

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Exhaust pipe Catalytic converter Front silencer Intermediate pipe 1.9 ltr. 4-cylinder+Diesel eng.+1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE
1.9 ltr.
1ZAAZAEYAFNAHUALE
—
(19)
Exhaust pipe with catalystto use for: 1 H 0 253 208 EC ALE
1 H 0 253 208 EC
ALE
1H0 253 058 FX
(2)
Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 1 Z
028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03
1Z
3A0 253 091 J
(2)
Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1 Z
028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01
1Z
3A0 253 091 J
(2)
Exhaust pipe use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01 1 Z
028 131 701 BX 357 253 137 AN 102 299 01 N 905 194 01
1Z
1H0 253 091 AC
(2)
Exhaust pipe D >> - 08.07.1996 use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 AAZ
028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03
AAZ
1H0 253 087 H
(4)
Catalytic converter D >> - 08.07.1996 use if required: 1 H 0 253 087 H 3 A 0 253 091 J 1 H 0 253 091 RN 102 299 01 N 902 264 03 AAZ 1 Z 1 Y
1 H 0 253 087 H 3 A 0 253 091 J 1 H 0 253 091 RN 102 299 01 N 902 264 03
1Y
028 131 701 BX
(5)
Intermediate pipe AFN
AFN
3A0 253 203 A
(5)
Intermediate pipe AEY
AEY
357 253 203 D
(5)
Intermediate pipefor models with catalyst 50/42 1 Y
50/42
1Y
191 253 203 F
(5)
Intermediate pipe 1 Z,AAZ,AHU,ALE
1ZAAZAHUALE
1H0 253 203 A
(7)
dual clip 55 AFN
55
AFN
357 253 141 A
(8)
Seal AAZ,1 Z,AHU,ALE
1ZAAZAHUALE
1H0 253 115 A
(9)
Seal AFN
AFN
3A0 253 115
1
Exhaust pipe For vehicles without exhaust-gas treatment system 1 Y
1Y
1H0 253 091 L
1
Exhaust pipe For vehicles without exhaust-gas treatment system 1 Y
1Y
1H0 253 091 AT
10
hexagon nut, self-locking M 10 1 Y,AEY
M 10
1YAEY
N 102 090 05
10
hexagon nut, self-locking M 10 1 Y,AEY
M 10
1YAEY
N 900 876 02
11
Hexagon collar nutself-locking M 8 AAZ,1 Z,AFN,AHU,ALE
M 8
1ZAAZAFNAHUALE
N 902 002 01
12
Bracket AAZ
AAZ
191 253 197
13
Washer 6,4 X 18 X 1,6 AAZ
6,4 X 18 X 1,6
AAZ
N 011 666 15
14
Hexagon bolt M 8 X 15 AAZ
M 8 X 15
AAZ
N 010 238 20
15
Hex collared boltfor models with catalyst M 8 X 50 1 Y,AAZ,1 Z
M 8 X 50
1Y1ZAAZ
N 102 299 01
16
hexagon nut, self-lockingfor models with catalyst M 8 1 Y,AAZ,1 Z
M 8
1Y1ZAAZ
N 022 146 4
17
seal ringfor models with catalyst 60/60 1 Y,AAZ,1 Z
60/60
1Y1ZAAZ
357 253 137 A
18
hot-bolt-paste 170 G
170 G
 G 052 112 A3
19
Exhaust pipe with catalystto use for:D - 08.07.1996>> 1 H 0 253 208 DF AAZ
1 H 0 253 208 DF
AAZ
1H0 253 058 EX
19
Exhaust pipe with catalystto use for: 1 H 0 253 208 DH AHU
1 H 0 253 208 DH
AHU
1H0 253 058 DX
19
Exhaust pipe with catalystto use for: 1 H 0 253 208 DL AFN
1 H 0 253 208 DL
AFN
1H0 253 058 BX
1A
Exhaust pipefor models with catalyst use if required: 028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03 1 Y
028 131 701 BX 357 253 137 AN 102 299 01 N 902 264 03
1Y
1H0 253 091 R
1A/4
Exhaust pipe with catalystto use for: 1 H 0 253 208 CR AEY
1 H 0 253 208 CR
AEY
1H0 253 058 CX
20
Bracket AFN,AHU
AFNAHU
1H0 253 144 E
21
Hex collared bolt M 8 X 22 AFN,AHU
M 8 X 22
AFNAHU
N 019 526 5
21
Hex collared bolt M 8 X 20 AFN,AHU
M 8 X 20
AFNAHU
N 019 533 4
3
Front silencer For vehicles without exhaust-gas treatment system 1 Y
1Y
1H0 253 209 G
6
dual clip For vehicles without exhaust-gas treatment system 42 1 Y
42
1Y
191 253 141 E
7
dual clipfor models with catalyst 50 ALE,AEY
50
AEYALE
191 253 141 F
9
Seal 1 Y,AEY
1YAEY
155 253 115

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Engine codes on this plate
1Y, 1Z, AAZ, AEY, AFN, AHU, ALE
Variant tags
diesel
Factory group
17 Exhaust system
Factory subgroup
253060

Related factory diagrams

Other published exhaust system plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the exhaust pipe catalytic converter front silencer diagram for the Mk3 Golf?
This diagram lists 37 OEM part numbers for the Mk3 Golf. The first three are 1H0 253 058 FX, 3A0 253 091 J and 1H0 253 091 AC.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, AAZ, AEY, AFN, AHU and ALE.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
