4 5 speed manual gearbox — Mk3 Golf Gearbox (1997)
Factory title: Volkswagen Golf (1997 - 1998) - 4 & 5-speed manual gearbox

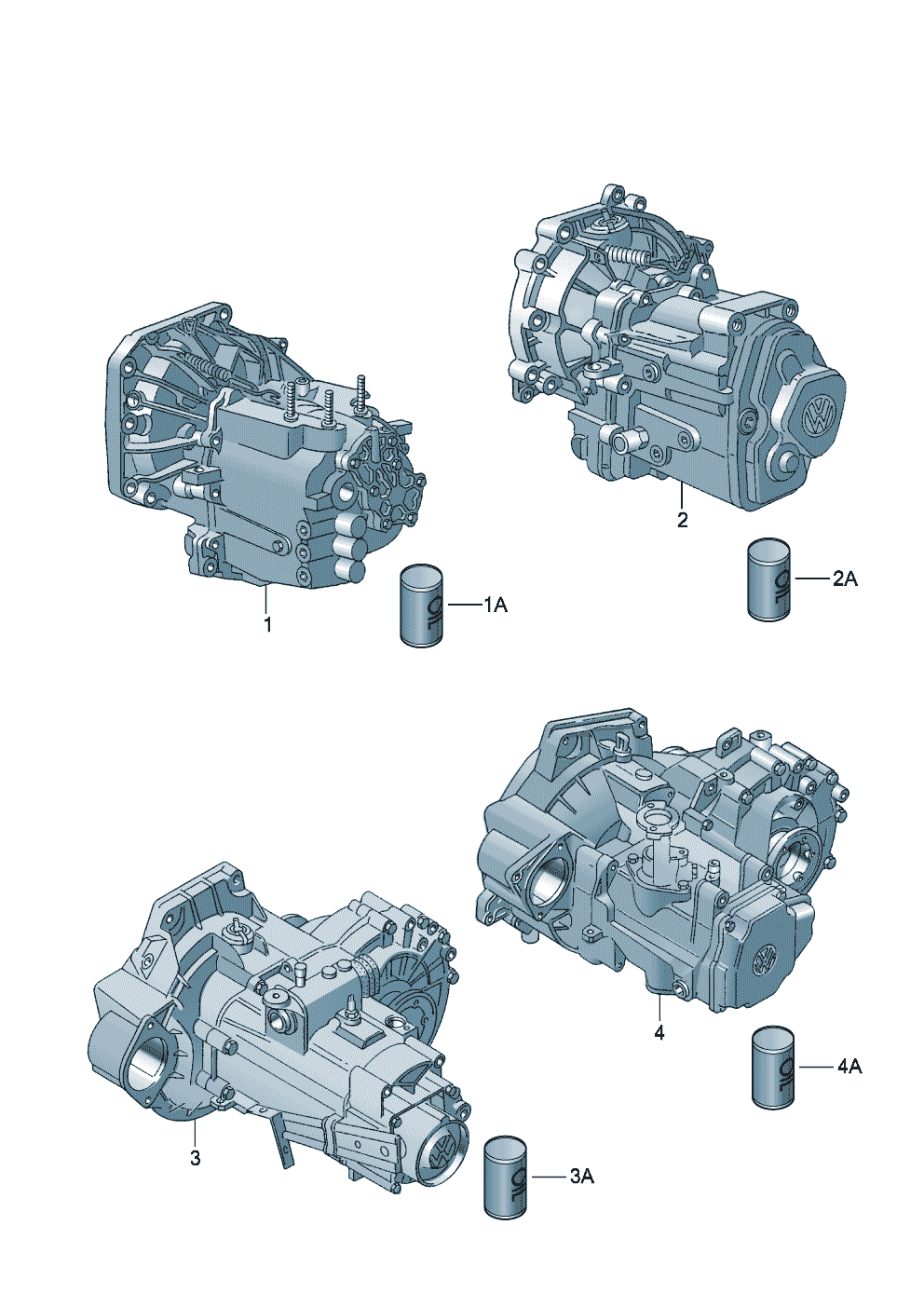

4 5 speed manual gearbox for the Volkswagen Golf Mk3 (1997): factory exploded diagram 300010 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 55 OEM part numbers including 1H0 919 149 A, 02K 300 045 B and 020 300 050 N. Parts on this plate carry the engine codes AMC, APW, ASD and ATH. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 55 OEM part numbers across 55 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | distance sensor CHC,CHD,CHE,CHB | 1H0 919 149 A |
| (3) | 4-speed manual transmission 66/18 DGM,CZK 66/18 | 02K 300 045 B |
| (3) | 4-speed manual transmission 66/18 CYY 66/18 | 020 300 050 N |
| (3) | 5-speed manual transmission 67/17 CYZ 67/17 | 02K 300 044 DX |
| (3) | 5-speed manual transmission 67/17 CZA 67/17 | 02K 300 044 EX |
| (3) | 5-speed manual transmission 66/18 DFW,CHC 66/18 | 020 300 051 R |
| (3) | 5-speed manual transmission 66/18 CHC 66/18 | 020 300 050 F |
| (3) | 5-speed manual transmission take from old part: 66/181 H 0 919 149 A 4 T,CHCCHC 66/181 H 0 919 149 A | 020 300 046 FX |
| (3) | 5-speed manual transmission 66/18 CQB 66/18 | 020 300 047 L |
| (3) | 5-speed manual transmission 66/18 DFX,CQB 66/18 | 020 300 051 D |
| (3) | 5-speed manual transmission 66/18 CHE 66/18 | 020 300 050 L |
| (3) | 5-speed manual transmission 66/18 DFX,CQB 66/18 | 020 300 051 DX |
| (3) | 5-speed manual transmission 66/18 CYW 66/18 | 020 300 047 M |
| (3) | 5-speed manual transmission 66/18 "GUS" CRY 66/18 | 020 300 050 M |
| (3) | 5-speed manual transmission 66/18 CYW 66/18 | 020 300 047 MX |
| (3) | 5-speed manual transmission 66/18 "GUS":DGE,CRY 66/18 | 020 300 051 L |
| (3) | 5-speed manual transmission 66/18 DFN,CHB 66/18 | 020 300 050 Q |
| (3) | 5-speed manual transmission 66/18 DFN,CHB 66/18 | 020 300 050 QX |
| (3) | 5-speed manual transmission 66/18 DFP,CHD 66/18 | 020 300 050 R |
| (3) | 5-speed manual transmission also use: 66/18068 103 648 K 038 103 645 A 028 905 256068 103 621 E DFP,CHD 66/18068 103 648 K 038 103 645 A 028 905 256068 103 621 E | 020 300 050 RX |
| (3) | 5-speed manual transmission 66/18 DFQ,CHE 66/18 | 020 300 050 S |
| (3) | 5-speed manual transmission 66/18 DFQ 66/18 | 020 300 050 SX |
| (3) | 5-speed manual transmission 66/18 AMC,CHE 66/18 AMC | 020 300 050 BX |
| (3) | 5-speed manual transmission 66/18 ATH,CHD 66/18 ATH | 020 300 048 RX |
| (3) | 5-speed manual transmission 66/18 APW,CHB 66/18 APW | 020 300 050 CX |
| (3) | 5-speed manual transmission 67/17 CJF 67/17 | 02K 300 044 B |
| (3) | 4-speed manual transmission 66/18 DMM,CYY 66/18 | 020 300 041 HX |
| (3) | 5-speed manual transmission 67/17 DGG,CJF 67/17 | 02K 300 044 R |
| (3) | 5-speed manual transmission 67/17 DGH,CYZ 67/17 | 02K 300 044 S |
| (3) | 5-speed manual transmission 67/17 CYZ 67/17 | 02K 300 044 D |
| (3) | 5-speed manual transmission 67/17 DGH,CYZ 67/17 | 02K 300 044 SX |
| (3) | 5-speed manual transmission 67/17 DGL,CZA 67/17 | 02K 300 045 A |
| (3) | 5-speed manual transmission 67/17 CZA 67/17 | 02K 300 044 E |
| (3) | 5-speed manual transmission 67/17 DGL,CZA 67/17 | 02K 300 045 AX |
| (3A) | Transmission fluid | G 052 726 A2 |
| (3A) | Transmission fluid | G 052 726 A2 |
| (4) | 5-speed manual transmission use if required: 70/19 G 005 100 A 1 DPA 70/19 G 005 100 A 1 | 02A 300 043 JX |
| (4) | 5-speed manual transmission 60/19 CTN 60/19 | 02A 300 048 P |
| (4) | 5-speed manual transmission take from old part: 60/1902 A 301 231 H CTN 60/1902 A 301 231 H | 02A 300 048 PX |
| (4) | 5-speed manual transmission 60/19 CYP 60/19 | 02A 300 043 H |
| (4) | 5-speed manual transmission take from old part: 61/1802 A 301 231 H CHN,CCM 61/1802 A 301 231 H | 02A 300 048 DX |
| (4) | 5-speed manual transmission 70/19 DPA 70/19 | 02A 300 043 J |
| (4) | 5-speed manual transmission 60/19 CYP 60/19 | 02A 300 043 HX |
| (4) | 5-speed manual transmission 62/17 CDM "CN." 62/17 | 02A 300 046 MX |
| (4) | 5-speed manual transmission 62/17 CDM "CN." 62/17 | 02A 300 046 M |
| (4) | 5-speed manual transmission 61/18 CHN,CCM 61/18 | 02A 300 048 D |
| (4) | 5-speed manual transmission 61/18 CCM 61/18 | 02A 300 046 K |
| 3 | 4-speed manual transmission 66/18 DGM,CZK 66/18 | 02K 300 045 BX |
| 3 | 4-speed manual transmission 66/18 DMM,CYY 66/18 | 020 300 041 H |
| 3 | 5-speed manual transmission 67/17 DGG,CJF 67/17 | 02K 300 044 RX |
| 3 | 4-speed manual transmission 66/18 CZK 66/18 | 02K 300 044 L |
| 3 | 5-speed manual transmission 66/18 DFW,CHC 66/18 | 020 300 051 RX |
| 4 | 5-speed manual transmission 60/19 ASD 60/19 ASD | 02A 300 044 L |
| 4 | 5-speed manual transmission take from old part: 60/1902 A 301 231 H ASD 60/1902 A 301 231 H ASD | 02A 300 044 LX |
| 4A | Transmission fluid | G 052 726 A2 |
