4 speed automatic gearbox — Mk3 Golf Gearbox (1995)

Factory title: Volkswagen Golf (1995) - 4-speed manual transmission. 5-speed manual transmission

Generation: Mk3 1995 (RDW) Group: Gearbox Rebuild step 9 Parts: 31 Primary OEM: N 103 378 03, 01M 300 035 E, 01M 300 035 EX

4 speed automatic gearbox for the Volkswagen Golf Mk3 (1995): factory exploded diagram 300050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 30 OEM part numbers across 31 catalogued positions including N 103 378 03, 01M 300 035 E and 01M 300 035 EX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 30 OEM part numbers across 31 numbered positions.

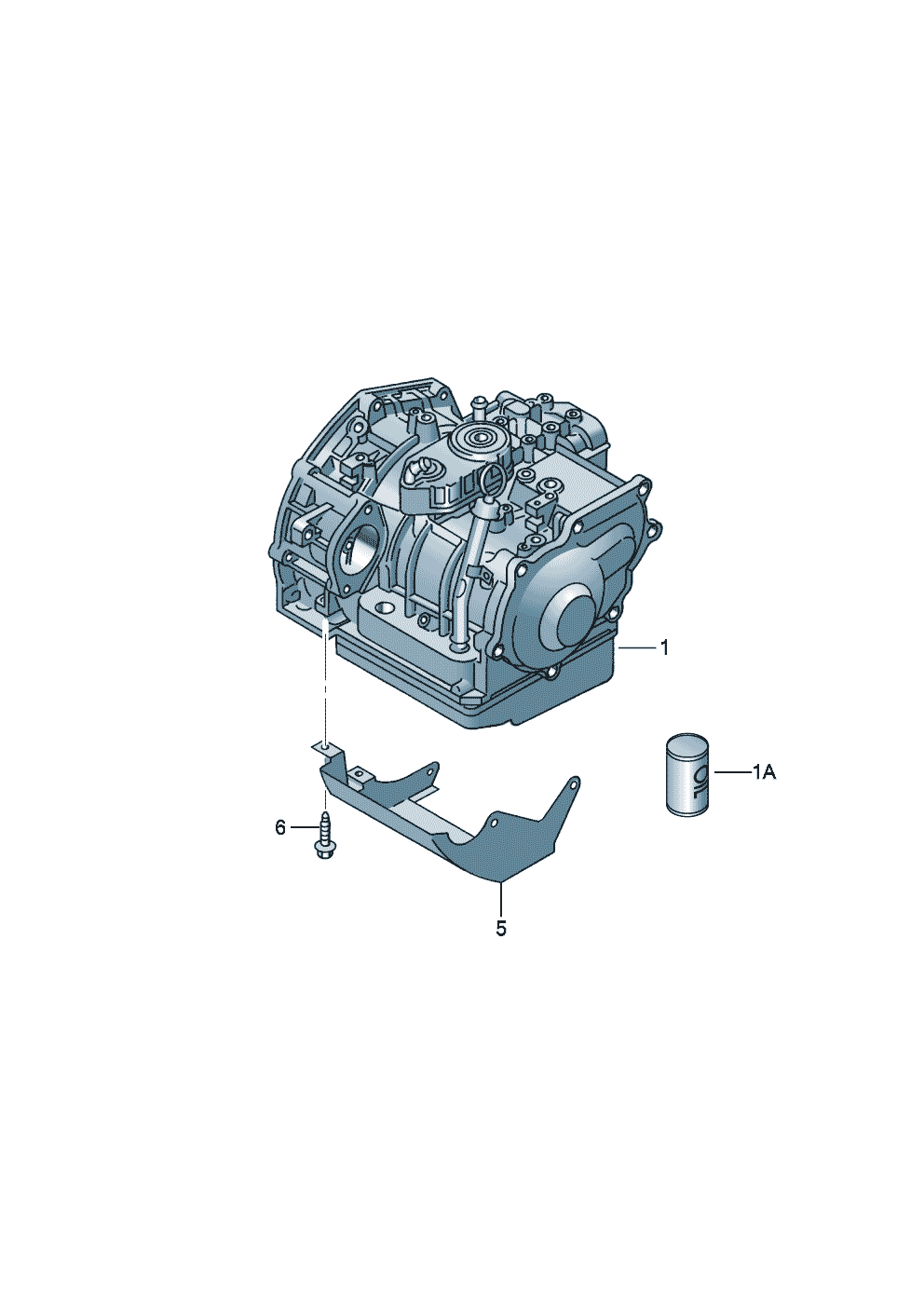

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	4-speed automatic gearbox Protective plate CFH,CFK,CFF,CRR,CNK,CKX,CKZ,CLK,CLB,CSK,CNP	—
-	Hex collared bolt M 12 X 55 M 12 X 55	N 103 378 03
(1)	4-speed automatic gearbox 74/20 CLB 74/20	01M 300 035 E
(1)	4-speed automatic gearbox also use: 74/20 N 103 378 03 CLB 74/20 N 103 378 03	01M 300 035 EX
(1)	4-speed automatic gearbox 77/17 CFK 77/17	096 300 036 CX
(1)	4-speed automatic gearbox 77/17 CRR 77/17	096 300 036 M
(1)	4-speed automatic gearbox 77/17 CRR 77/17	096 300 036 MX
(1)	4-speed automatic gearbox 77/17 "J..":CSK 77/17	096 300 036 R
(1)	4-speed automatic gearbox 77/17 "J..":CSK 77/17	096 300 036 R
(1)	4-speed automatic gearbox 76/18 CNK 76/18	096 300 036 K
(1)	4-speed automatic gearbox 76/18 CNK 76/18	096 300 036 KX
(1)	4-speed automatic gearbox 76/18 "J..":CNP 76/18	096 300 036 L
(1)	4-speed automatic gearbox 74/20 CFF 74/20	096 300 036
(1)	4-speed automatic gearbox 74/20 CFF 74/20	096 300 036 X
(1)	4-speed automatic gearbox 77/17 CKX 77/17	01M 300 035
(1)	4-speed automatic gearbox 77/17 CFK 77/17	096 300 036 C
(1)	4-speed automatic gearbox 77/17 CKX 77/17	01M 300 035 X
(1)	4-speed automatic gearbox 77/22 CKZ 77/22	01M 300 035 B
(1)	4-speed automatic gearbox 76/18 CLK 76/18	01M 300 035 D
(1)	4-speed automatic gearbox 77/22 CKZ 77/22	01M 300 035 BX
(1)	4-speed automatic gearbox 76/18 CLK 76/18	01M 300 035 DX
(1A)	atf (automatic transm. fluid)for final drive	G 052 162 A2
(1A)	atf (automatic transm. fluid)	G 052 162 A6
(1A)	atf (automatic transm. fluid)	G 052 162 A6
(1A)	axle oilfor final drive	G 052 145 S2
1	4-speed automatic gearbox 76/18 CFH 76/18	096 300 036 BX
1	4-speed automatic gearbox 76/18 CFH 76/18	096 300 036 B
1A	atf (automatic transm. fluid)	G 052 162 A2
1A	atf (automatic transm. fluid)	G 052 162 A2
5	Protective plate	357 399 291
6	Hex collared bolt M 10 X 24 M 10 X 24	N 102 575 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Factory group: 02 Gearbox
Factory subgroup: 300050
