Output shaft drive wheelfor 4 speed automatic gearbox cfc — Mk3 Golf Gearbox (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Oil pump. for 4-speed automatic gearbox

Generation: Mk3 1993 - 1996 (MEX) Group: Gearbox Rebuild step 9 Parts: 206 Primary OEM: 096 323 857 P, 096 323 857 N, 096 323 857 Q

Output shaft drive wheelfor 4 speed automatic gearbox cfc for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 323070 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 204 OEM part numbers across 206 catalogued positions including 096 323 857 P, 096 323 857 N and 096 323 857 Q. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 204 OEM part numbers across 206 numbered positions.

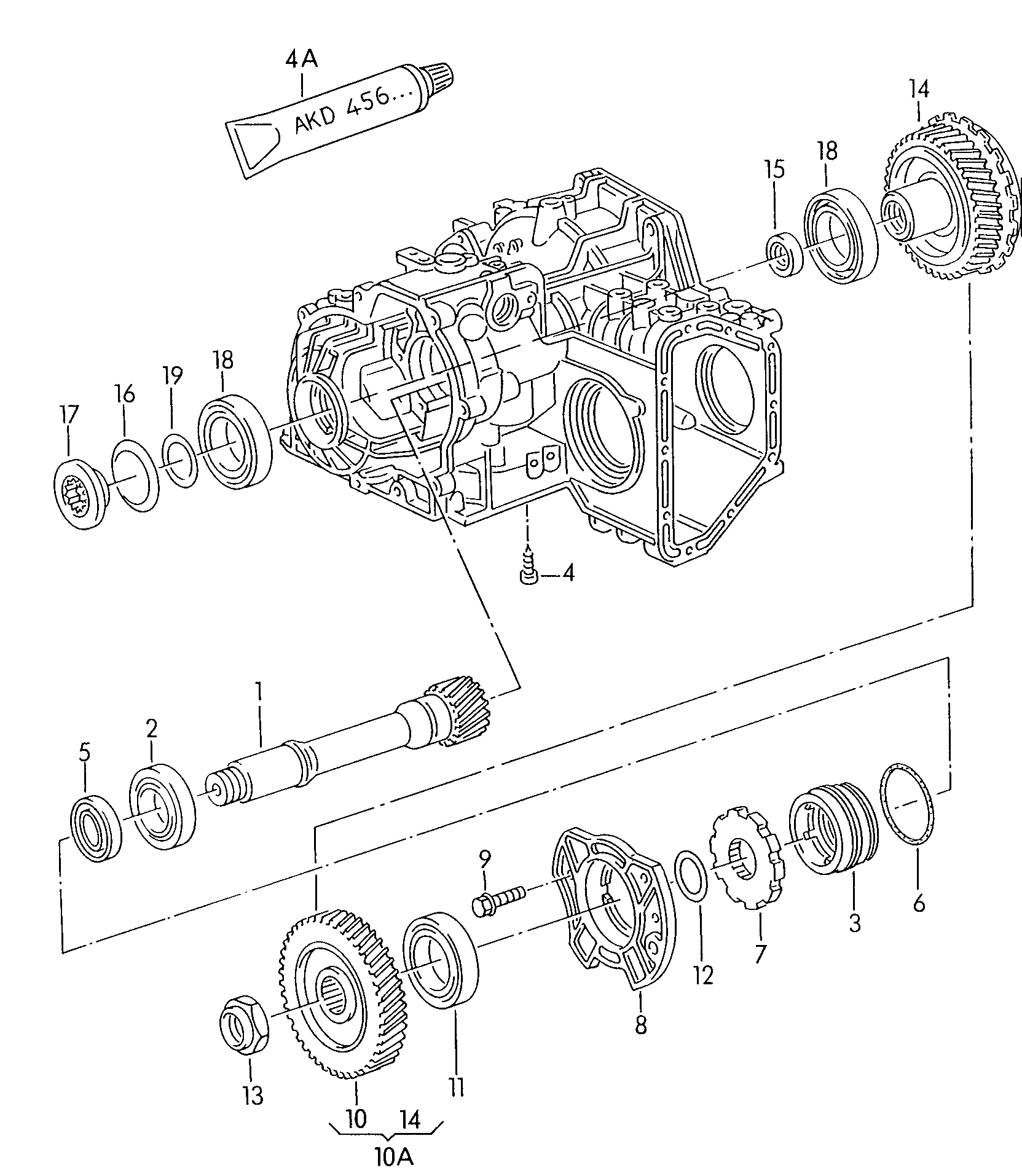

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Output shaft Drive wheelfor 4-speed automatic gearbox CFC,CFD,CFH,CFK,CFF,CNK,CLA,CLB,CKY,CKZ,CLK,DKS
 —
Output shaft Drive wheelfor 4-speed automatic gearbox CFC,CFD,CFH,CFK,CFF,CNK,CLA,CLB,CKY,CKZ,CLK,DKS
 —
(1)
Output shaft 77/17 CFD,CFK,CKY
77/17
 096 323 857 P
(1)
Output shaft 74/20 CFF,CLB
74/20
 096 323 857 N
(1)
Output shaft 72/22 CKZ
72/22
 096 323 857 Q
(10)
output gear Z=61 CFH,CFK,CFF,CNK
Z=61
 096 323 883 L
(10)
output gear Z=44 CLA,CLB,CKY
Z=44
 096 323 887 R
(12)
adjusting washer 1,375
1,375
 096 323 875 GB
(12)
adjusting washer 1,925
1,925
 096 323 875 HF
(12)
adjusting washer 1,95
1,95
 01M 323 875 BF
(12)
adjusting washer 1,95
1,95
 096 323 875 HG
(12)
adjusting washer 1,975
1,975
 01M 323 875 BG
(12)
adjusting washer 1,975
1,975
 096 323 875 HH
(12)
adjusting washer 2
2
 01M 323 875 BH
(12)
adjusting washer 2
2
 096 323 875 HJ
(12)
adjusting washer 2,025
2,025
 01M 323 875 BJ
(12)
adjusting washer 2,025
2,025
 096 323 875 HK
(12)
adjusting washer 2,05
2,05
 01M 323 875 BK
(12)
adjusting washer 2,05
2,05
 096 323 875 HL
(12)
adjusting washer 2,075
2,075
 01M 323 875 BL
(12)
adjusting washer 2,075
2,075
 096 323 875 HM
(12)
adjusting washer 2,1
2,1
 01M 323 875 BM
(12)
adjusting washer 2,1
2,1
 096 323 875 HN
(12)
adjusting washer 2,125
2,125
 01M 323 875 BN
(12)
adjusting washer 2,125
2,125
 096 323 875 HP
(12)
adjusting washer 2,15
2,15
 01M 323 875 BP
(12)
adjusting washer 2,15
2,15
 096 323 875 HQ
(12)
adjusting washer 2,175
2,175
 01M 323 875 BQ
(12)
adjusting washer 2,175
2,175
 096 323 875 HR
(12)
adjusting washer 2,2
2,2
 01M 323 875 BR
(12)
adjusting washer 2,2
2,2
 096 323 875 HS
(12)
adjusting washer 2,225
2,225
 01M 323 875 BS
(12)
adjusting washer 2,225
2,225
 096 323 875 HT
(12)
adjusting washer 2,25
2,25
 01M 323 875 BT
(12)
adjusting washer 2,25
2,25
 096 323 875 JA
(12)
adjusting washer 2,275
2,275
 01M 323 875 CA
(12)
adjusting washer 2,275
2,275
 096 323 875 JB
(12)
adjusting washer 2,3
2,3
 01M 323 875 CB
(12)
adjusting washer 2,3
2,3
 096 323 875 JC
(12)
adjusting washer 2,325
2,325
 01M 323 875 CC
(12)
adjusting washer 2,325
2,325
 096 323 875 JD
(12)
adjusting washer 2,35
2,35
 01M 323 875 CD
(12)
adjusting washer 2,35
2,35
 096 323 875 JE
(12)
adjusting washer 2,375
2,375
 01M 323 875 CE
(12)
adjusting washer 2,375
2,375
 096 323 875 JF
(12)
adjusting washer 2,4
2,4
 01M 323 875 CF
(12)
adjusting washer 2,4
2,4
 096 323 875 JG
(12)
adjusting washer 2,425
2,425
 01M 323 875 CG
(12)
adjusting washer 2,425
2,425
 096 323 875 JH
(12)
adjusting washer 2,45
2,45
 01M 323 875 CH
(12)
adjusting washer 2,45
2,45
 096 323 875 JJ
(12)
adjusting washer 2,475
2,475
 01M 323 875 CJ
(12)
adjusting washer 2,475
2,475
 096 323 875 JK
(12)
adjusting washer 2,5
2,5
 01M 323 875 CK
(12)
adjusting washer 2,5
2,5
 096 323 875 JL
(12)
adjusting washer 2,525
2,525
 01M 323 875 CL
(12)
adjusting washer 2,525
2,525
 096 323 875 JM
(12)
adjusting washer 2,55
2,55
 01M 323 875 CM
(12)
adjusting washer 2,55
2,55
 096 323 875 JN
(12)
adjusting washer 2,575
2,575
 01M 323 875 CN
(12)
adjusting washer 2,575
2,575
 096 323 875 JP
(12)
adjusting washer 2,6
2,6
 01M 323 875 CP
(12)
adjusting washer 2,6
2,6
 096 323 875 JQ
(12)
adjusting washer 2,625
2,625
 01M 323 875 CQ
(12)
adjusting washer 2,625
2,625
 096 323 875 JR
(12)
adjusting washer 2,65
2,65
 01M 323 875 CR
(12)
adjusting washer 2,65
2,65
 096 323 875 JS
(12)
adjusting washer 2,675
2,675
 01M 323 875 CS
(12)
adjusting washer 2,675
2,675
 096 323 875 JT
(12)
adjusting washer 2,7
2,7
 01M 323 875 CT
(12)
adjusting washer 2,7
2,7
 096 323 875 KA
(12)
adjusting washer 1,025
1,025
 01M 323 875 E
(12)
adjusting washer 1,025
1,025
 096 323 875 FF
(12)
adjusting washer 1,05
1,05
 01M 323 875 F
(12)
adjusting washer 1,05
1,05
 096 323 875 FG
(12)
adjusting washer 1,075
1,075
 01M 323 875 G
(12)
adjusting washer 1,075
1,075
 096 323 875 FH
(12)
adjusting washer 1,1
1,1
 01M 323 875 H
(12)
adjusting washer 1,1
1,1
 096 323 875 FJ
(12)
adjusting washer 1,125
1,125
 01M 323 875 J
(12)
adjusting washer 1,125
1,125
 096 323 875 FK
(12)
adjusting washer 1,15
1,15
 01M 323 875 K
(12)
adjusting washer 1,15
1,15
 096 323 875 FL
(12)
adjusting washer 1,175
1,175
 01M 323 875 L
(12)
adjusting washer 1,175
1,175
 096 323 875 FM
(12)
adjusting washer 1,2
1,2
 01M 323 875 M
(12)
adjusting washer 1,2
1,2
 096 323 875 FN
(12)
adjusting washer 1,225
1,225
 01M 323 875 N
(12)
adjusting washer 1,225
1,225
 096 323 875 FP
(12)
adjusting washer 1,25
1,25
 01M 323 875 P
(12)
adjusting washer 1,25
1,25
 096 323 875 FQ
(12)
adjusting washer 1,275
1,275
 01M 323 875 Q
(12)
adjusting washer 1,275
1,275
 096 323 875 FR
(12)
adjusting washer 1,3
1,3
 01M 323 875 R
(12)
adjusting washer 1,3
1,3
 096 323 875 FS
(12)
adjusting washer 1,325
1,325
 01M 323 875 S
(12)
adjusting washer 1,325
1,325
 096 323 875 FT
(12)
adjusting washer 1,35
1,35
 01M 323 875 T
(12)
adjusting washer 1,35
1,35
 096 323 875 GA
(12)
adjusting washer 1,375
1,375
 01M 323 875 AA
(12)
adjusting washer 1,4
1,4
 01M 323 875 AB
(12)
adjusting washer 1,4
1,4
 096 323 875 GC
(12)
adjusting washer 1,425
1,425
 01M 323 875 AC
(12)
adjusting washer 1,425
1,425
 096 323 875 GD
(12)
adjusting washer 1,45
1,45
 01M 323 875 AD
(12)
adjusting washer 1,45
1,45
 096 323 875 GE
(12)
adjusting washer 1,475
1,475
 01M 323 875 AE
(12)
adjusting washer 1,475
1,475
 096 323 875 GF
(12)
adjusting washer 1,5
1,5
 01M 323 875 AF
(12)
adjusting washer 1,5
1,5
 096 323 875 GG
(12)
adjusting washer 1,525
1,525
 01M 323 875 AG
(12)
adjusting washer 1,525
1,525
 096 323 875 GH
(12)
adjusting washer 1,55
1,55
 01M 323 875 AH
(12)
adjusting washer 1,55
1,55
 096 323 875 GJ
(12)
adjusting washer 1,575
1,575
 01M 323 875 AJ
(12)
adjusting washer 1,575
1,575
 096 323 875 GK
(12)
adjusting washer 1,6
1,6
 01M 323 875 AK
(12)
adjusting washer 1,6
1,6
 096 323 875 GL
(12)
adjusting washer 1,625
1,625
 01M 323 875 AL
(12)
adjusting washer 1,625
1,625
 096 323 875 GM
(12)
adjusting washer 1,65
1,65
 01M 323 875 AM
(12)
adjusting washer 1,65
1,65
 096 323 875 GN
(12)
adjusting washer 1,675
1,675
 01M 323 875 AN
(12)
adjusting washer 1,675
1,675
 096 323 875 GP
(12)
adjusting washer 1,7
1,7
 01M 323 875 AP
(12)
adjusting washer 1,7
1,7
 096 323 875 GQ
(12)
adjusting washer 1,725
1,725
 01M 323 875 AQ
(12)
adjusting washer 1,725
1,725
 096 323 875 GR
(12)
adjusting washer 1,75
1,75
 01M 323 875 AR
(12)
adjusting washer 1,75
1,75
 096 323 875 GS
(12)
adjusting washer 1,775
1,775
 01M 323 875 AS
(12)
adjusting washer 1,775
1,775
 096 323 875 GT
(12)
adjusting washer 1,8
1,8
 01M 323 875 AT
(12)
adjusting washer 1,8
1,8
 096 323 875 HA
(12)
adjusting washer 1,825
1,825
 01M 323 875 BA
(12)
adjusting washer 1,825
1,825
 096 323 875 HB
(12)
adjusting washer 1,85
1,85
 01M 323 875 BB
(12)
adjusting washer 1,85
1,85
 096 323 875 HC
(12)
adjusting washer 1,875
1,875
 01M 323 875 BC
(12)
adjusting washer 1,875
1,875
 096 323 875 HD
(12)
adjusting washer 1,9
1,9
 01M 323 875 BD
(12)
adjusting washer 1,9
1,9
 096 323 875 HE
(12)
adjusting washer 1,925
1,925
 01M 323 875 BE
(14)
Drive wheel Z=62 CFH,CFK,CFF,CNK
Z=62
 096 323 891 L
(14)
Drive wheel Z=45 CLA,CLB,CKY
Z=45
 096 323 891
(14)
gear set for intermed. drive also use: Z=44/4501 M 323 877 A CLA,CLB,CKY,CKZ,CLK,DKS
Z=44/4501 M 323 877 A
 01M 323 880
(19)
adjusting washer 1,625
1,625
 096 323 839 AF
(19)
adjusting washer 2,025
2,025
 096 323 839 BD
(19)
adjusting washer 2,05
2,05
 096 323 839 BE
(19)
adjusting washer 2,075
2,075
 096 323 839 BF
(19)
adjusting washer 2,1
2,1
 096 323 839 BG
(19)
adjusting washer 2,125
2,125
 096 323 839 BH
(19)
adjusting washer 2,15
2,15
 096 323 839 BJ
(19)
adjusting washer 2,175
2,175
 096 323 839 BK
(19)
adjusting washer 2,2
2,2
 096 323 839 BL
(19)
adjusting washer 2,225
2,225
 096 323 839 BM
(19)
adjusting washer 2,25
2,25
 096 323 839 BN
(19)
adjusting washer 2,275
2,275
 096 323 839 BP
(19)
adjusting washer 2,3
2,3
 096 323 839 BQ
(19)
adjusting washer 2,325
2,325
 096 323 839 BR
(19)
adjusting washer 2,35
2,35
 096 323 839 BS
(19)
adjusting washer 2,375
2,375
 096 323 839 BT
(19)
adjusting washer 2,4
2,4
 096 323 839 CA
(19)
adjusting washer 2,425
2,425
 096 323 839 CB
(19)
adjusting washer 2,45
2,45
 096 323 839 CC
(19)
adjusting washer 2,475
2,475
 096 323 839 CD
(19)
adjusting washer 2,5
2,5
 096 323 839 CE
(19)
adjusting washer 2,525
2,525
 096 323 839 CF
(19)
adjusting washer 2,55
2,55
 096 323 839 CG
(19)
adjusting washer 1,65
1,65
 096 323 839 AG
(19)
adjusting washer 1,675
1,675
 096 323 839 AH
(19)
adjusting washer 1,7
1,7
 096 323 839 AJ
(19)
adjusting washer 1,725
1,725
 096 323 839 AK
(19)
adjusting washer 1,75
1,75
 096 323 839 AL
(19)
adjusting washer 1,775
1,775
 096 323 839 AM
(19)
adjusting washer 1,8
1,8
 096 323 839 AN
(19)
adjusting washer 1,825
1,825
 096 323 839 AP
(19)
adjusting washer 1,85
1,85
 096 323 839 AQ
(19)
adjusting washer 1,875
1,875
 096 323 839 AR
(19)
adjusting washer 1,9
1,9
 096 323 839 AS
(19)
adjusting washer 1,925
1,925
 096 323 839 AT
(19)
adjusting washer 1,95
1,95
 096 323 839 BA
(19)
adjusting washer 1,975
1,975
 096 323 839 BB
(19)
adjusting washer 2
2
 096 323 839 BC
1
Output shaft 76/18 CFC,CFH,CNK,CLA,CLK,DKS
76/18
 096 323 857 M
10
output gear Z=63 CFC,CFD
Z=63
 096 323 883 M
11
Taper roller bearing
 003 519 185
12
adjusting washer 1
1
 096 323 875 FE
12
adjusting washer 1
1
 01M 323 875 D
13
Hexagon nut M 27 X 1.5
M 27 X 1.5
 097 409 379
14
Drive wheel Z=61 CFC,CFD
Z=61
 096 323 891 M
14
gear set for intermed. drive Z=61 CFC,CFD
Z=61
 01M 323 880 C
15
axial bearing
 095 323 710
16
Belleville spring
 095 323 898
17
bolt M 36 X 1,5
M 36 X 1,5
 095 323 899
18
Taper roller bearing 41 X 68 X 17,6
41 X 68 X 17,6
 113 517 185 C
19
adjusting washer 1,6
1,6
 096 323 839 AE
2
Taper roller bearing 34 X 64 X 23
34 X 64 X 23
 096 323 851
3
Thrust ring
 096 323 861
4
Socket head bolt M 6 X 20
M 6 X 20
 N 903 694 02
4A
sealant 14 G
14 G
 AKD 456 000 02
5
Shaft oil seal 34 X 52 X 7
34 X 52 X 7
 096 323 862
6
O-ring 59 X 3
59 X 3
 098 323 863
7
wheel-parking lock Z=36
Z=36
 096 323 867 A
8
Bearing cover
 096 323 873 B
9
Hexagon bolt M 8 X 22
M 8 X 22
 N 102 314 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Factory group
02 Gearbox
Factory subgroup
323070

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the output shaft drive wheelfor 4 speed automatic gearbox cfc diagram for the Mk3 Golf?
This diagram lists 204 OEM part numbers for the Mk3 Golf. The first three are 096 323 857 P, 096 323 857 N and 096 323 857 Q.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
Volkswagen Golf (1993 - 1996) - Oil pump. for 4-speed automatic gearbox

Volkswagen Golf (1993 - 1996) - Oil pump. for 4-speed automatic gearbox
