Mounting parts engine transmission 5 speed manual — Mk3 Golf Gearbox (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - 5-speed manual transmission

Generation: Mk3 1993 - 1996 (MEX) Group: Gearbox Rebuild step 9 Parts: 9 Primary OEM: N 103 378 03, 191 971 248, N 907 016 04

Mounting parts engine transmission 5 speed manual for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 300072 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 5 OEM part numbers across 9 catalogued positions including N 103 378 03, 191 971 248 and N 907 016 04. Parts on this plate carry the engine codes AMC, APW and ATH. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 5 OEM part numbers across 9 numbered positions.

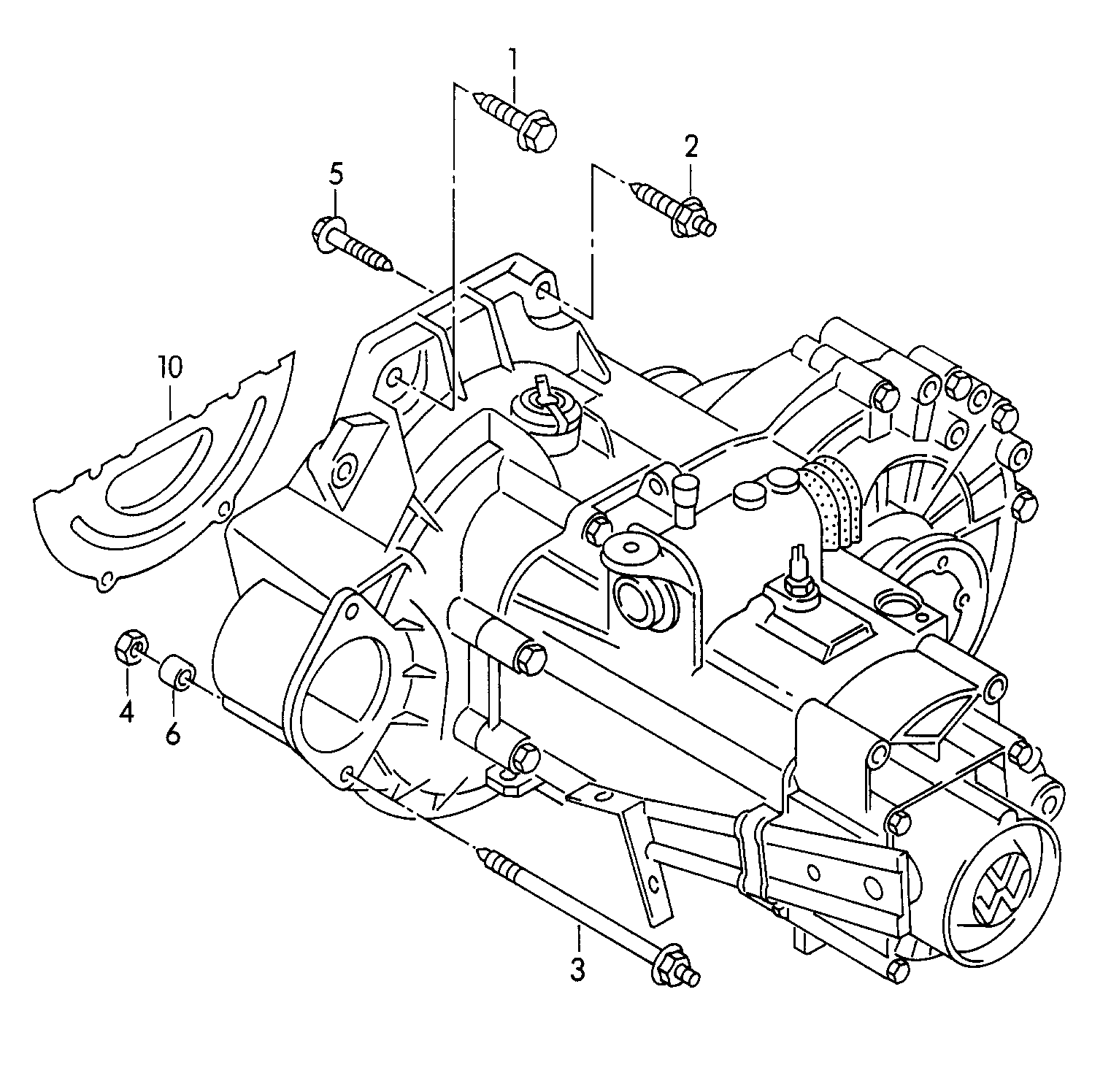

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mounting parts for engine andtransmission 5-speed manual transmission 1.8-2.0 Ltr. ATH,APW,AMC,CHD.CHB,CHE,DFN,DFQ,DFP,DGD 1.8-2.0 Ltr. AMCAPWATH	—
1	Hex collared bolt M 12 X 55 M 12 X 55	N 103 378 03
10	Cover plate see illustration: 103-020 103-020	—
2	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	191 971 248
2	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	N 907 016 04
3	see illustration: 911-010 911-010	—
4	see illustration: 911-010 911-010	—
5	Hexagon bolt M 12 X 62 X 48 M 12 X 62 X 48	N 902 992 01
6	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
