Coupling — Mk3 Golf Gearbox (1995)

Factory title: Volkswagen Golf (1995) - Coupling

Generation: Mk3 1995 (RDW) Group: Gearbox Rebuild step 9 Parts: 43 Primary OEM: G 000 100, N 905 955 01, N 905 954 01

Coupling for the Volkswagen Golf Mk3 (1995): factory exploded diagram 141010 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 40 OEM part numbers across 43 catalogued positions including G 000 100, N 905 955 01 and N 905 954 01. Parts on this plate carry the engine codes ABD, ABU and AEA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 40 OEM part numbers across 43 numbered positions.

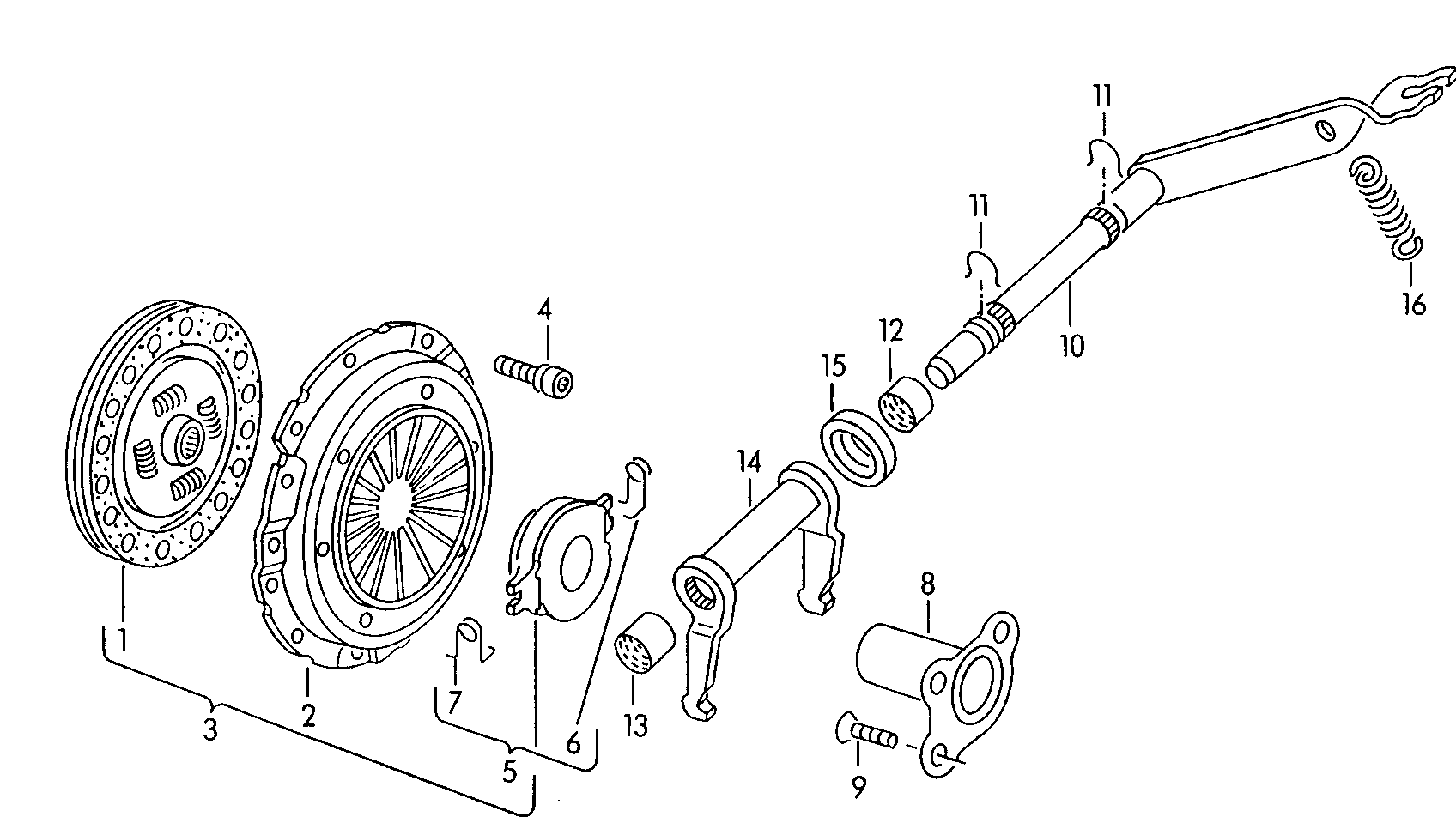

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coupling 1.4 ltr.1.6 ltr. ABD;ABU,AEA 1.4 ltr.1.6 ltr. AEA	—
-	Grease for clutchplate splines 80 G 80 G	G 000 100
-	seal ring 15 X 1 15 X 1	N 905 955 01
-	seal ring 13 X 1 13 X 1	N 905 954 01
(1)	Clutch plate 200 MM ABU 200 MM ABU	032 141 031 QX
(1)	Clutch platefor manual gearbox Code: 200 MMCNU AEA 200 MMCNU AEA	032 141 031 QX
(1)	Clutch platefor manual gearbox Code: 200 MMCNU AEA 200 MMCNU AEA	032 141 032 A
(1)	Clutch plate 190 MM ABD 190 MM ABD	030 141 032 BX
(1)	Clutch plate 200 MM ABU 200 MM ABU	032 141 031 KX
(1)	Clutch plate 190 MM ABD 190 MM ABD	030 141 032 FX
(1)	Clutch plate 200 MM ABU 200 MM ABU	032 141 032 A
(1)	Clutch platefor manual gearbox Code: see illustration: CHV 141-020 AEA CHV 141-020 AEA	—
(1)	Clutch plate 200 MM ABU 200 MM ABU	032 141 031 K
(2)	clutch pressure plate 190 MM ABD 190 MM ABD	052 141 025 P
(2)	clutch pressure platefor manual gearbox Code: see illustration: CHV 141-020 AEA CHV 141-020 AEA	—
(2)	clutch pressure plate 200 MM ABU 200 MM ABU	030 141 025 FX
(2)	clutch pressure plate 190 MM ABD 190 MM ABD	052 141 025 MX
(2)	clutch pressure platefor manual gearbox Code: 200 MMCNU AEA 200 MMCNU AEA	030 141 025 R
(2)	clutch pressure platefor manual gearbox Code: 190/200 MMCNU AEA 190/200 MMCNU AEA	030 141 025 F
(2)	clutch pressure platefor manual gearbox Code: 200 MMCNU AEA 200 MMCNU AEA	030 141 025 FX
(2)	clutch pressure plate 190 MM ABD 190 MM ABD	052 141 025 M
(2)	clutch pressure plate 190 MM ABD 190 MM ABD	052 141 025 PX
(2)	clutch pressure plate 190 MM ABD 190 MM ABD	052 141 025 Q
(3)	1 set clutch parts FUER SCHALTGETRIEBE Code: 200 MMCNU AEA 200 MMCNU AEA	030 198 140 X
(3)	1 set clutch parts 200 MM ABU 200 MM ABU	030 198 140 X
1	Clutch plate 190 MM ABD 190 MM ABD	030 141 032 A
1	Clutch plate 190 MM ABD 190 MM ABD	030 141 033 F
10	release shaft	085 141 702 B
11	Securing ring	020 141 710
12	bush	085 141 711 A
13	Bearing bush 15 MM 15 MM	085 141 715
14	clutch lever	085 141 713
15	Shaft oil seal 18 X 25 X 3,2 18 X 25 X 3,2	085 141 733 B
16	tension spring	084 141 741 A
2	clutch pressure plate 190/200 MM ABU 190/200 MM ABU	030 141 025 F
2	clutch pressure plate 200 MM ABU 200 MM ABU	030 141 025 R
4	12-point head bolt M 7 X 14 M 7 X 14	N 903 207 01
5	release bearing	085 141 165 H
5	release bearing	085 141 165 E
6	retaining spring	085 141 177 A
7	retaining spring	085 141 178 A
8	guide sleeve	085 141 181
9	oval head countersunk bolt,self-locking M 7 X 13 M 7 X 13	N 903 014 03

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: ABD, ABU, AEA
Factory group: 02 Gearbox
Factory subgroup: 141010
