Forward reverse gear clutchplanet pinion carrier — Mk3 Golf Gearbox (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Oil pump. for 4-speed automatic gearbox

Generation: Mk3 1993 - 1996 (MEX) Group: Gearbox Rebuild step 9 Parts: 88 Primary OEM: 095 323 329 N, 095 323 329 P, 095 323 739 M

Forward reverse gear clutchplanet pinion carrier for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 323057 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 85 OEM part numbers across 88 catalogued positions including 095 323 329 N, 095 323 329 P and 095 323 739 M. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 85 OEM part numbers across 88 numbered positions.

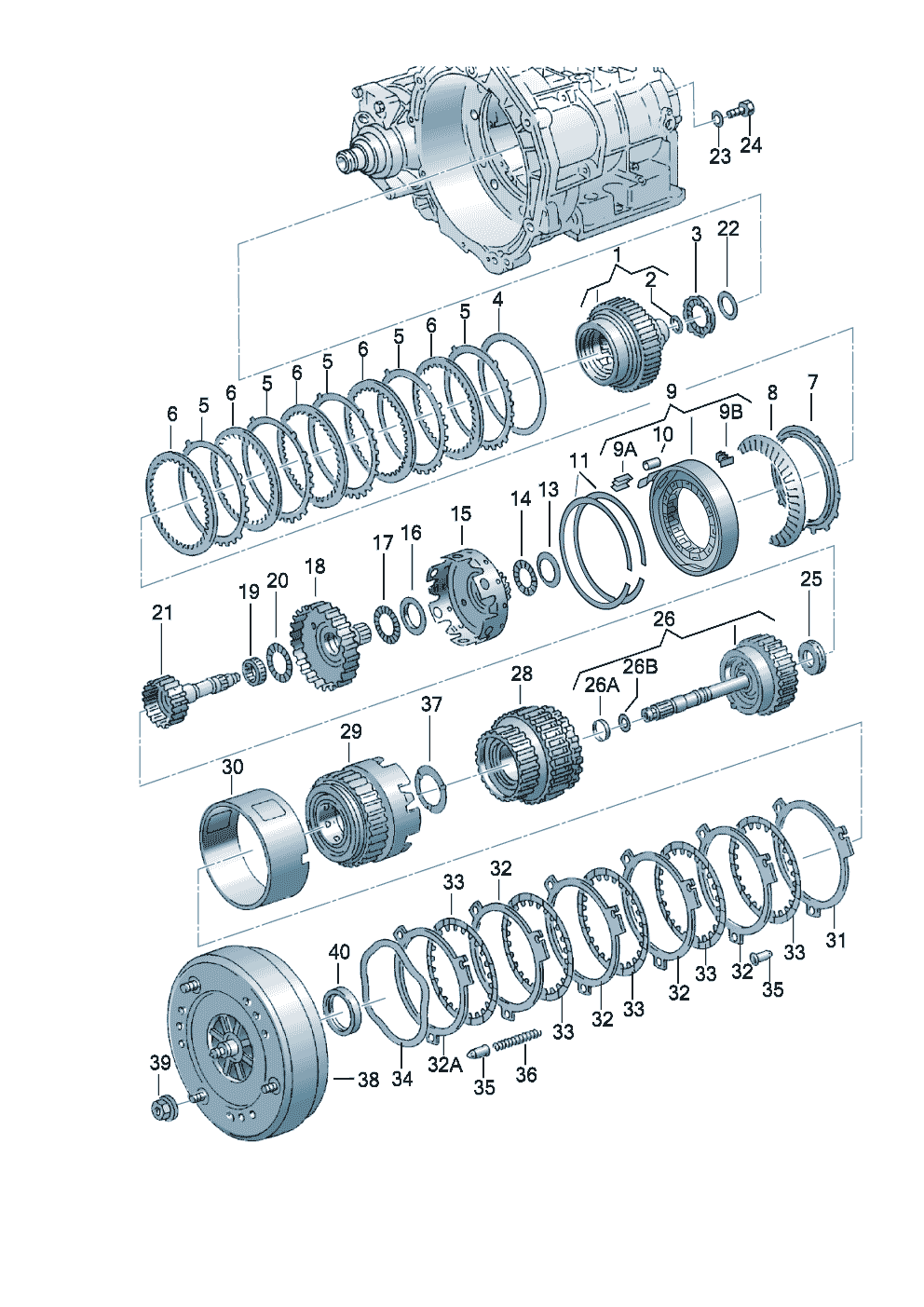

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
forward,reverse gear clutchplanet pinion carrier Converterfor 4-speed automatic gearbox CLA,CLB,CLK,CKY,CKZ,DKS
 —
forward,reverse gear clutchplanet pinion carrier Converterfor 4-speed automatic gearbox CLA,CLB,CLK,CKY,CKZ,DKS
 —
(15)
driving shell G 01 02 6>>
 095 323 329 N
(15)
driving shell G 01 02 6>>
 095 323 329 P
(22)
adjusting washer 1,6
1,6
 095 323 739 M
(22)
adjusting washer 1,7
1,7
 095 323 739 N
(22)
adjusting washer 1,8
1,8
 095 323 739 P
(22)
adjusting washer 1,9
1,9
 095 323 739 Q
(22)
adjusting washer 1,2
1,2
 095 323 739 J
(22)
adjusting washer 1,3
1,3
 095 323 739 K
(22)
adjusting washer 1,4
1,4
 095 323 739 L
(22)
adjusting washer 1,5
1,5
 095 323 739 B
(22)
adjusting washer 1,1
1,1
 095 323 739 H
(25)
axial bearing G 16 06 6>>
 095 323 919 B
(26)
Coupling also use: 01 M 323 205 CX CKZ,CLB
01 M 323 205 CX
 01M 323 921 DX
(26)
Coupling also use: 01 M 323 205 CX CLB
01 M 323 205 CX
 01M 323 921 D
(29)
reverse gear clutch
 095 323 106 AX
(32A)
external disc 2,5
2,5
 097 323 463 B
(32A)
external disc 2
2
 097 323 463
(32A)
external disc 3,5
3,5
 097 323 463 E
(32A)
external disc 3,25
3,25
 097 323 463 D
(32A)
external disc 3
3
 097 323 463 C
(32A)
external disc 2,25
2,25
 097 323 463 A
(32A)
external disc 2,75
2,75
 097 323 463 G
(32A)
external disc 3,75
3,75
 097 323 463 F
(37)
adjusting washer 1,4
1,4
 095 323 345 B
(37)
adjusting washer 1,2
1,2
 095 323 345 A
(37)
adjusting washer 1,8
1,8
 095 323 345 D
(37)
adjusting washer 1,6
1,6
 095 323 345 C
(38)
Converter Code: QCDT/QCDR CLB
QCDT/QCDR
 099 323 571 G
(38)
Converter Code: QCDT/QCDR CLB
QCDT/QCDR
 099 323 571 GX
(38)
Converter CKZ
 099 323 571 F
(38)
Converter Code: QADB/QADC CAL,CKY,CLK,DKS
QADB/QADC
 01M 323 571 J
(38)
Converter Code: QCDT/QCDR CLB
QCDT/QCDR
 01M 323 571 H
(38)
Converter Code: QADB/QADC CAL,CKY,CLK,DKS
QADB/QADC
 099 323 571 H
(4)
adjusting washer 1,5
1,5
 095 323 433 E
(4)
adjusting washer 1,1
1,1
 095 323 433 A
(4)
adjusting washer 1,2
1,2
 095 323 433 B
(4)
adjusting washer 1,3
1,3
 095 323 433 C
(4)
adjusting washer 1,4
1,4
 095 323 433 D
(4)
adjusting washer 1,6
1,6
 095 323 433 F
(4)
adjusting washer 1,7
1,7
 095 323 433 G
(4)
adjusting washer 1,8
1,8
 095 323 433 H
(4)
adjusting washer 1,9
1,9
 095 323 433 J
1
planet pinion carrier G >> 31 01 6
 095 323 301 Q
1
planet pinion carrier G >> 31 01 6
 095 323 301 H
10
Cylinder roller 8 X 12
8 X 12
 N 903 511 01
11
Securing ring
 095 323 653
13
thrust washer
 095 323 715
14
axial roller bearing 39
39
 095 323 727 B
16
thrust washer
 095 323 714 A
17
axial roller bearing
 095 323 708
18
Input shaft
 095 323 901 B
19
Needle cage
 095 323 907
2
O-ring 19 X 2,5
19 X 2,5
 095 323 737
20
axial roller bearing
 095 323 909
21
Input shaft
 095 323 911 F
22
adjusting washer 1
1
 095 323 739
23
Washer 8,2 X 18 X 2
8,2 X 18 X 2
 N 901 076 04
24
Hexagon bolt M 8 X 22
M 8 X 22
 N 010 241 23
25
axial bearing G >> 15 06 6
 095 323 919 B
25
axial bearing G >> 15 06 6
 095 323 919
26
Coupling also use: 01 M 323 205 CX CLA,CKY
01 M 323 205 CX
 01M 323 921 C
26
Coupling also use: 01 M 323 205 CX CLA,CKY,CLK,DKS
01 M 323 205 CX
 01M 323 921 CX
26A
piston ring 30 MM
30 MM
 095 323 557 B
26B
O-ring 30 X 2,5
30 X 2,5
 01M 323 255
28
Coupling
 01M 323 205 DX
28
Coupling
 01M 323 205 D
29
reverse gear clutch
 095 323 105 AD
3
axial bearing
 095 323 743 A
30
Support tube 64,9
64,9
 097 323 455 B
31
external disc 3
3
 097 323 463 C
32
external disc 2
2
 097 323 463
33
Internal disc
 095 323 465 E
34
Wave spring washer
 095 323 471
35
Pot
 097 323 515
36
Pressure spring 65 MM
65 MM
 097 323 505 A
36
Pressure spring 65 MM
65 MM
 01M 323 505 B
37
adjusting washer 1
1
 095 323 345
38
Converter CKZ
 01M 323 571 G
39
Hexagon nut M 10 X 1
M 10 X 1
 N 101 692 01
4
adjusting washer 1
1
 095 323 433
40
see illustration: 321-055
321-055
 —
5
external disc
 095 323 227 A
6
Internal disc
 095 323 231 A
7
Pressure plate 10,5
10,5
 095 323 297 B
8
Belleville spring(internal gears)
 095 323 295 A
9
1.gear-freewheel
 095 323 383
