Gears shaftsfor 5 speed manual transmiss — Mk3 Golf Gearbox (1992)

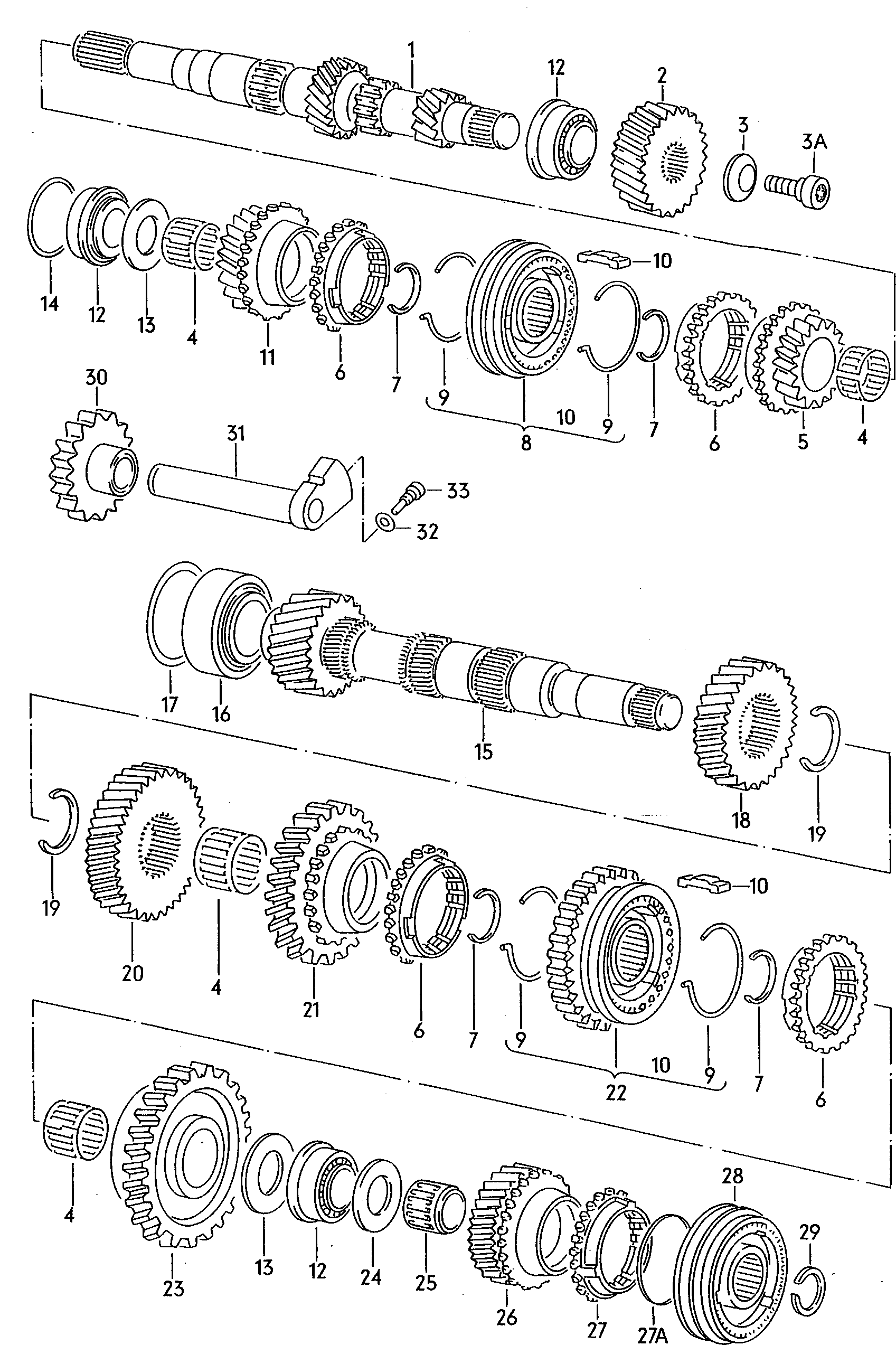

Factory title: Volkswagen Golf (1992 - 1994) - For 4-speed manual gearbox. gears and shafts
Gears shaftsfor 5 speed manual transmiss for the Volkswagen Golf Mk3 (1992): factory exploded diagram 311030 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 87 OEM part numbers across 91 catalogued positions including 085 311 277, 085 311 279 and D 000 600 A2. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 87 OEM part numbers across 91 numbered positions.
| № | Description | Part number |
|---|---|---|
| gears and shaftsfor 5 speed manual transmiss. 1.4/1.6 ltr. CCK,CHL,CHXCEC,CKR,CNU 1.4/1.6 ltr. | — | |
| - | synchronizer ringinner CRK,CNU | 085 311 277 |
| - | outer ring CKR,CNU | 085 311 279 |
| - | Locking fluid | D 000 600 A2 |
| (1) | Input shaft Z=11+22 CKR,CNU Z=11+22 | 085 311 105 T |
| (1) | Input shaft Z=11+22 CKR,CNU Z=11+22 | 085 311 105 Q |
| (11) | change gear Z=41/46 CKR,CNU Z=41/46 | 085 311 145 G |
| (14) | adjusting washer 0,8 0,8 | 085 311 391 AR |
| (14) | adjusting washer 0,875 0,875 | 085 311 391 S |
| (14) | adjusting washer 0,85 0,85 | 085 311 391 AS |
| (14) | adjusting washer 0,675 0,675 | 085 311 391 N |
| (14) | adjusting washer 0,7 0,7 | 085 311 391 AP |
| (14) | adjusting washer 0,725 0,725 | 085 311 391 P |
| (14) | adjusting washer 0,75 0,75 | 085 311 391 AQ |
| (14) | adjusting washer 0,775 0,775 | 085 311 391 Q |
| (14) | adjusting washer 0,825 0,825 | 085 311 391 R |
| (14) | adjusting washer 1,25 1,25 | 085 311 391 BG |
| (14) | adjusting washer 1,225 1,225 | 085 311 391 AF |
| (14) | adjusting washer 1,2 1,2 | 085 311 391 BF |
| (14) | adjusting washer 1,175 1,175 | 085 311 391 AE |
| (14) | adjusting washer 1,15 1,15 | 085 311 391 BE |
| (14) | adjusting washer 1,125 1,125 | 085 311 391 AD |
| (14) | adjusting washer 1,1 1,1 | 085 311 391 BD |
| (14) | adjusting washer 1,075 1,075 | 085 311 391 AC |
| (14) | adjusting washer 1,05 1,05 | 085 311 391 BC |
| (14) | adjusting washer 1,025 1,025 | 085 311 391 AB |
| (14) | adjusting washer 1 1 | 085 311 391 BB |
| (14) | adjusting washer 0,975 0,975 | 085 311 391 AA |
| (14) | adjusting washer 0,95 0,95 | 085 311 391 BA |
| (14) | adjusting washer 0,925 0,925 | 085 311 391 T |
| (14) | adjusting washer 0,9 0,9 | 085 311 391 AT |
| (17) | 1 set shims 0,65-1,4 0,65-1,4 | 020 398 391 |
| (20) | gear Z=40/32 CKR,CNU Z=40/32 | 085 311 285 H |
| (21) | change gear Z=43/22 CKR,CNU Z=43/22 | 085 311 261 C |
| (22) | synchronizing hub withlocking collar CKR,CNU | 085 311 239 B |
| (22) | synchronizing hub withlocking collar Z=44 CKR,CNU Z=44 | 085 311 239 C |
| (23) | change gear Z=38/11 CKR,CNU Z=38/11 | 085 311 251 |
| (26) | change gear Z=37/50 CKR,CNU Z=37/50 | 085 311 158 J |
| (26) | change gear Discont. / replace: 085 300 047 MX 085 300 047 QX CKR,CNUCWN,CKRCWR,CNU 085 300 047 MX 085 300 047 QX | — |
| (27) | synchronizer ring CKR,CNU | 085 311 295 E |
| (28) | synchronizing hub withlocking collar CKR,CNU | 085 311 303 C |
| (29) | 1 set circlips 2-2,6 2-2,6 | 085 398 008 |
| (3) | Belleville spring also use: 15,5 X 34 X 2,1 N 905 747 01 15,5 X 34 X 2,1 N 905 747 01 | 085 311 324 A |
| (3A) | Locating bolt also use: M 8 X 15 X 19085 311 324 A M 8 X 15 X 19085 311 324 A | N 905 747 01 |
| (5) | change gear Discont. / replace: 085 300 047 MX 085 300 047 QX CWN,CKRCWR,CNU 085 300 047 MX 085 300 047 QX | — |
| (5) | change gear Z=40/32 CKR,CNU Z=40/32 | 085 311 129 H |
| (6) | synchronizer ring CKR,CNU | 085 311 247 B |
| (6) | synchronizer ring CKR,CNU | 085 311 295 C |
| (8) | synchronizing hub withlocking collar CKR,CNU | 085 311 301 A |
| (9) | Spring CKR,CNU | 014 311 311 C |
| (9) | Spring CKR,CNU | 084 311 311 C |
| 1 | Input shaft Z=11+24 CCK,CHL,CHX,CEC Z=11+24 | 085 311 105 K |
| 10 | locking piece | 084 311 313 |
| 11 | change gear Z=41/46 CCK,CHL,CHX,CEC Z=41/46 | 085 311 145 B |
| 12 | Taper roller bearing 22 X 45 X 16,6 22 X 45 X 16,6 | 085 311 123 D |
| 12 | Taper roller bearing G >> 21 11 1 22 X 45 X 16,6 22 X 45 X 16,6 | 085 311 123 |
| 13 | thrust washer 22 X 40 X 2,5 22 X 40 X 2,5 | 085 311 221 |
| 14 | adjusting washer 0,65 0,65 | 085 311 391 AN |
| 15 | No longer available see illustration: 409-015 409-015 | — |
| 16 | Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73 | 311 405 625 F |
| 16 | Taper roller bearing G >> 21 11 1 29 X 50,29 X 14,73 29 X 50,29 X 14,73 | 311 405 625 E |
| 18 | gear Z=41/46 Z=41/46 | 085 311 351 |
| 19 | Securing ring 29,8 X 2,5 29,8 X 2,5 | 085 311 152 A |
| 2 | gear Z=37/50 Z=37/50 | 085 311 361 |
| 20 | gear Z=45/36 CCK,CHL,CHX,CEC Z=45/36 | 085 311 285 |
| 21 | change gear Z=47/24 CCK,CHL,CHX,CEC Z=47/24 | 085 311 271 |
| 22 | synchronizing hub withlocking collar CCK,CHL,CHX,CEC | 085 311 239 |
| 23 | change gear Z=38/11 CCK,CHL,CHX,CEC Z=38/11 | 085 311 257 |
| 24 | thrust washer 22 X 40 X 3 22 X 40 X 3 | 085 311 155 |
| 25 | needle bearing - | 085 311 431 C |
| 26 | change gear also use: Z=37/50085 311 303 A CCK,CHL,CHX,CEC Z=37/50085 311 303 A | 085 311 158 D |
| 27 | synchronizer ring CCK,CHL,CHX,CEC | 085 311 295 |
| 27 | synchronizer ring CCK,CHL,CHX,CEC, | 085 311 295 A |
| 27A | Spring | 085 311 311 |
| 28 | synchronizing hub withlocking collar also use: 085 311 158 D CCK,CHL,CHX,CEC 085 311 158 D | 085 311 303 A |
| 3 | Belleville spring also use: 15,5 X 34 X 2,1 N 905 747 02 15,5 X 34 X 2,1 N 905 747 02 | 085 311 324 A |
| 30 | reverse gear | 084 311 529 |
| 30 | reverse gear Z=28 Z=28 | 085 311 529 |
| 31 | reverse gear idler spindle | 085 311 503 C |
| 31 | reverse gear idler spindle | 085 311 503 A |
| 32 | Spring washer 10 10 | N 012 231 4 |
| 32 | Spring washer B 10 X 18 B 10 X 18 | N 012 242 2 |
| 33 | fillister hd. bolt M 10 HX 16,5 X 34 M 10 HX 16,5 X 34 | 085 311 589 B |
| 3A | Locating bolt also use: M 8 X 15 X 19085 311 324 A M 8 X 15 X 19085 311 324 A | N 905 747 02 |
| 4 | needle bearing - 27 X 32 X 24,8 27 X 32 X 24,8 | 085 311 115 |
| 5 | change gear Z=45/36 CCK,CHL,CHX,CEC Z=45/36 | 085 311 129 |
| 6 | synchronizer ring CCK,CHL,CHX,CEC, | 084 311 295 C |
| 6 | synchronizer ring CCK,CHL,CHX,CEC | 084 311 295 B |
| 7 | Securing ring 24,9 X 2,5 24,9 X 2,5 | 085 311 317 |
| 8 | synchronizing hub withlocking collar CCK,CHL,CHX,CEC | 085 311 301 |
| 9 | Spring CCK,CHL,CHX,CEC | 084 311 311 C |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1992
- Generation region
- RDW
- Generation code
- 121
- Variant tags
- petrol_8v_base
- Factory group
- 02 Gearbox
- Factory subgroup
- 311030
