Oil pumpfor 4 speed automatic gearbox cfh cfk cff crr cnk — Mk3 Golf Gearbox (1995)

Factory title: Volkswagen Golf (1995) - Gear housing. for 4-speed automatic gearbox

Generation: Mk3 1995 (RDW) Group: Gearbox Rebuild step 9 Parts: 17 Primary OEM: 095 321 241 BX, 095 321 241 B, 095 321 262

Oil pumpfor 4 speed automatic gearbox cfh cfk cff crr cnk for the Volkswagen Golf Mk3 (1995): factory exploded diagram 321055 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 14 OEM part numbers across 17 catalogued positions including 095 321 241 BX, 095 321 241 B and 095 321 262. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 14 OEM part numbers across 17 numbered positions.

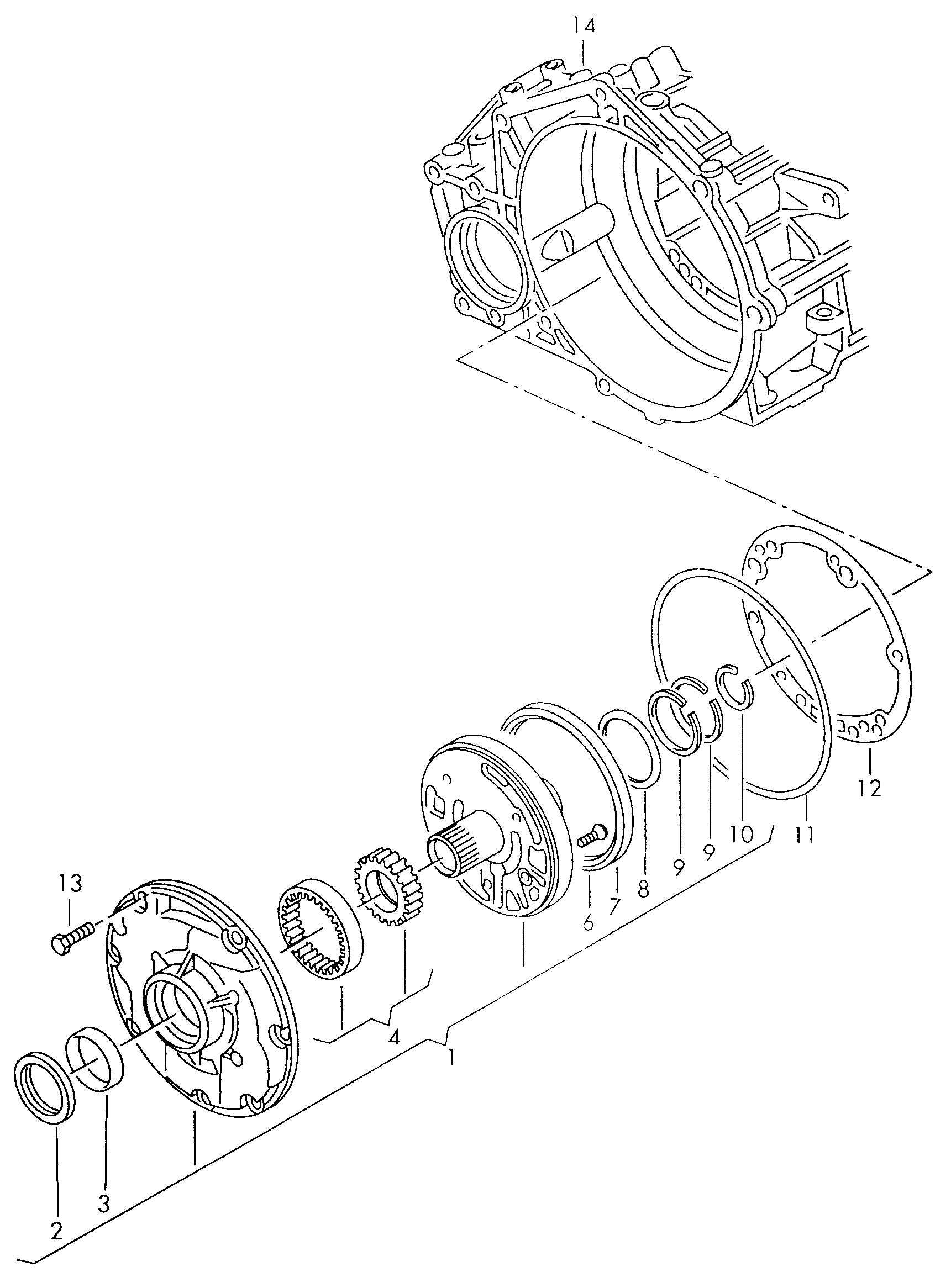

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	oil pumpfor 4-speed automatic gearbox CFH,CFK,CFF,CRR,CNK,CSK,	—
(1)	oil pump	095 321 241 BX
1	oil pump	095 321 241 B
10	piston ring	095 321 262
11	O-ring 188 X 3 188 X 3	095 321 386
12	Seal	095 321 385 A
13	Socket head bolt with innermultipoint head M 6 X 27 M 6 X 27	N 905 829 02
14	Gear housing see illustration: 321-050 321-050	—
2	radial shaft seal 51 X 65 X 7 51 X 65 X 7	095 321 243
2	radial shaft seal 51 X 65 X 7 51 X 65 X 7	095 321 243 A
3	No replacement part	—
4	gear set	095 321 263
6	Hex socket countersunk bolt M 6 X 14 M 6 X 14	N 101 193 01
7	piston	095 321 531 B
7	piston	095 321 531 C
8	thrust washer	095 321 285
9	piston ring	095 321 261 A
