4 speed automatic gearbox protective plate — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - 4 & 5-speed manual gearbox

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 29 Primary OEM: 01M 300 037 DX, 01M 300 033 E, 01M 300 037 E

4 speed automatic gearbox protective plate for the Volkswagen Golf Mk3 (1997): factory exploded diagram 300050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 28 OEM part numbers across 29 catalogued positions including 01M 300 037 DX, 01M 300 033 E and 01M 300 037 E. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 28 OEM part numbers across 29 numbered positions.

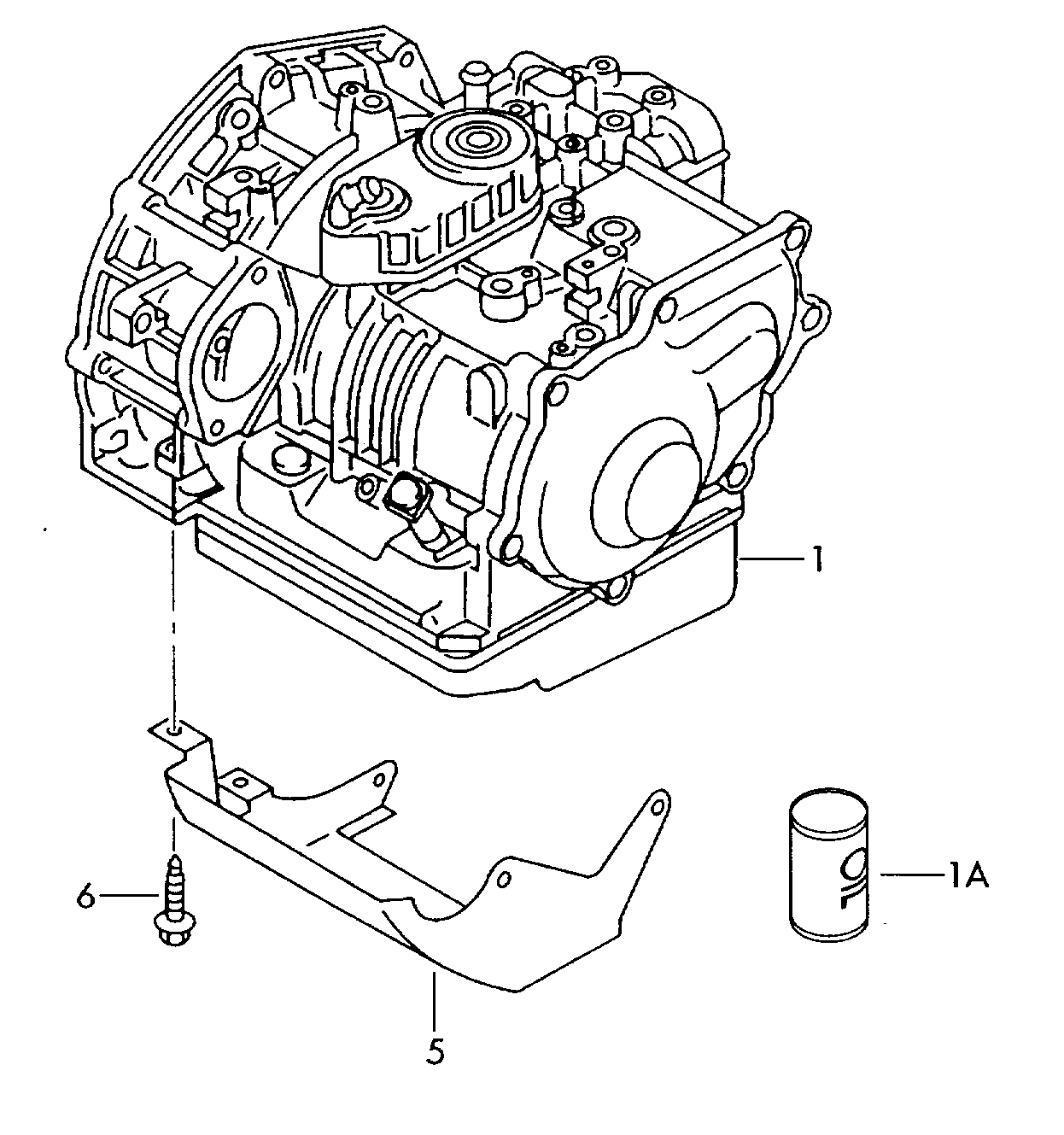

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	4-speed automatic gearbox CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL,DLV,DNR,DLX,DLZ,DNS,DMA,DNT,DMB,EPK,EPN,EPP	—
(1)	4-speed automatic gearbox 72/22 DLX 72/22	01M 300 037 DX
(1)	4-speed automatic gearbox 76/18 DLZ,DNS 76/18	01M 300 033 E
(1)	4-speed automatic gearbox 76/18 DLZ,DNS 76/18	01M 300 037 E
(1)	4-speed automatic gearbox 76/18 DLZ,DNS 76/18	01M 300 037 EX
(1)	4-speed automatic gearbox 74/20 DMA,DNT 74/20	01M 300 037 H
(1)	4-speed automatic gearbox also use: 74/20 N 103 378 03 DMA,DNT 74/20 N 103 378 03	01M 300 037 HX
(1)	4-speed automatic gearbox 72/22 DMB 72/22	01M 300 037 CX
(1)	4-speed automatic gearbox 72/22 DMB 72/22	01M 300 037 C
(1)	4-speed automatic gearbox 72/22 CKZ 72/22	01M 300 035 BX
(1)	4-speed automatic gearbox 77/22 CKZ 77/22	01M 300 035 B
(1)	4-speed automatic gearbox 76/18 CLK,DKS 76/18	01M 300 035 D
(1)	4-speed automatic gearbox 76/18 CLK,DKS 76/18	01M 300 035 DX
(1)	4-speed automatic gearbox 74/20 CLB,DLL 74/20	01M 300 035 E
(1)	4-speed automatic gearbox also use: 74/20 N 103 378 03 CLB,DLL 74/20 N 103 378 03	01M 300 035 EX
(1)	4-speed automatic gearbox 77/22 DAB 77/22	01M 300 035 FX
(1)	4-speed automatic gearbox 77/22 DAB 77/22	01M 300 035 F
(1)	4-speed automatic gearbox 77/17 DLV,DNR 77/17	01M 300 033
(1)	4-speed automatic gearbox 77/17 DLV,DNR 77/17	01M 300 037
(1)	4-speed automatic gearbox 77/17 DLV,DNR 77/17	01M 300 037 X
(1)	4-speed automatic gearbox 72/22 DLX 72/22	01M 300 037 D
(1)	4-speed automatic gearbox 72/22 EPP 72/22	01M 300 033 DX
(1A)	atf (automatic transm. fluid)	G 052 162 A6
(1A)	axle oilfor final drive	G 052 145 S2
1	4-speed automatic gearbox 77/17 CKX,DKR 77/17	01M 300 035
1	4-speed automatic gearbox 77/17 CKX,DKR 77/17	01M 300 035 X
1A	atf (automatic transm. fluid)	G 052 162 A2
5	Protective plate	357 399 291
6	Hex collared bolt M 10 X 24 M 10 X 24	N 102 575 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 02 Gearbox
Factory subgroup: 300050
