Coupling — Mk3 Golf Gearbox (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Coupling

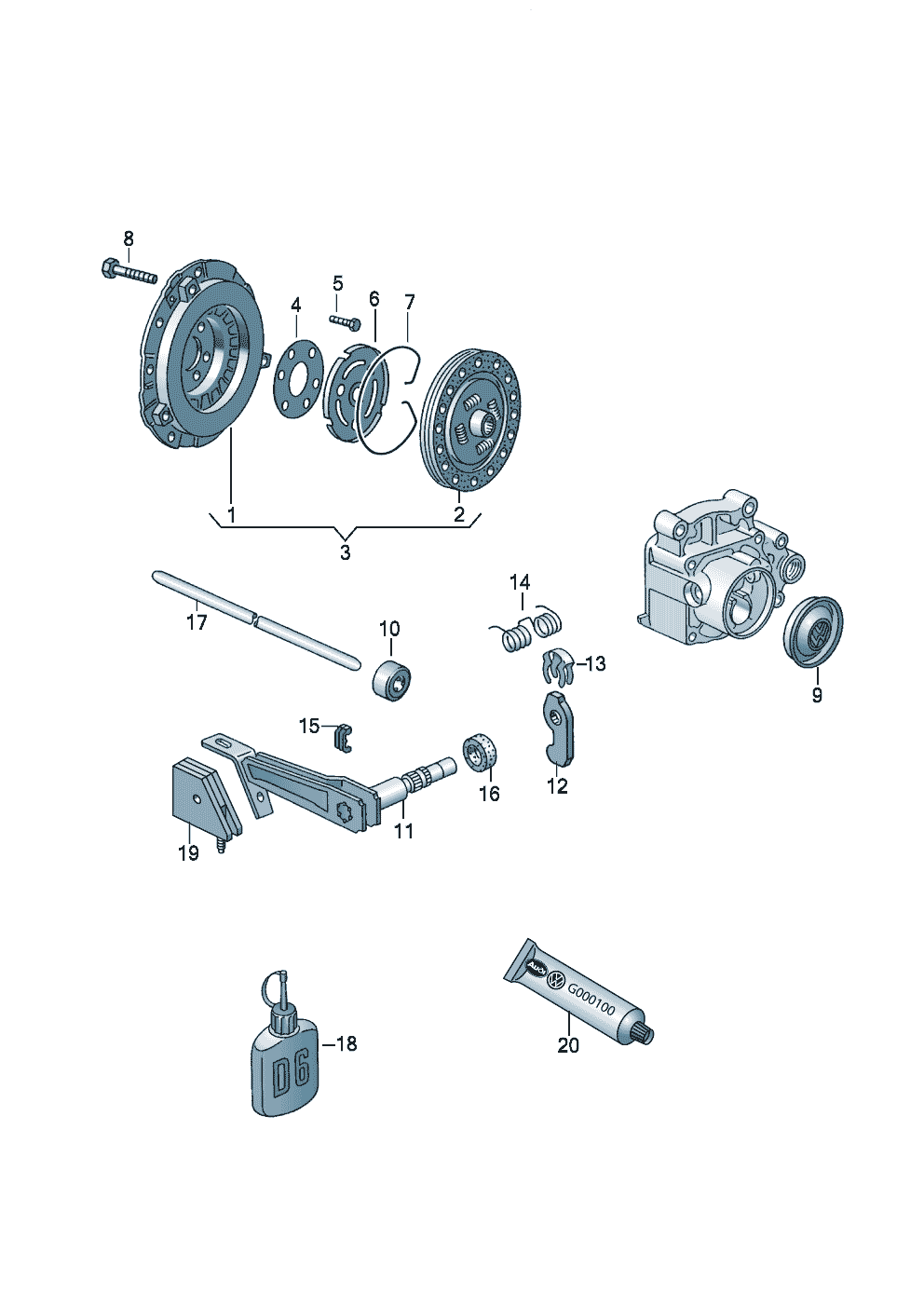

Coupling for the Volkswagen Golf Mk3 (1997): factory exploded diagram 141020 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 54 OEM part numbers across 55 catalogued positions including N 011 134 5, 533 798 105 and N 012 230 7. Parts on this plate carry the engine codes 1Y, 2E, AAM, AAZ, ABS, ACC, ADY and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 54 OEM part numbers across 55 numbered positions.
| № | Description | Part number |
|---|---|---|
| Coupling 1.4 ltr.1.6 ltr.1.8 ltr.2.0 Ltr.1.9 ltr.1.9 ltr. AEX,APQAEE,AFT,AKSAAM,ADZ,ACCAGG,AKR"J..":ADY;"CN." "GUS":AEP;Diesel eng.+1 Y,AAZ,AEY,diesel eng./ecomatic:1 Y,AEY; 1.4 ltr.1.6 ltr.1.8 ltr.2.0 Ltr.1.9 ltr.1.9 ltr. AAZADZAEXAEYAFT | — | |
| - | Hexagon nut M 10 1 Y,AAZ,AEY M 10 1YAAZAEY | N 011 134 5 |
| - | 1 set fixing parts forclutch cable AAM,ABS,AEA,AEP,ADY,ADZ,2 E 2EAAMABSADYADZAEAAEP | 533 798 105 |
| - | Spring washer 10 1 Y,AAZ,AEY 10 1YAAZAEY | N 012 230 7 |
| (1) | clutch pressure plate 210 MM AAM,AAZ,ACC,ADZ;ecomatic:AEY 210 MM AAMAAZACC | 027 141 026 |
| (1) | clutch pressure plate 210 MM AAM,AAZ,ACC,ADZ,ADY,AEP,AGG,AKRecomatic:AEY 210 MM AAMAAZACCADYADZAEPAEYAGG | 027 141 025 T |
| (1) | clutch pressure plate 200 MM AFT,AKS 200 MM AFTAKS | 067 141 026 H |
| (1) | clutch pressure plate 190/200 MM AEE,AEX,APQ 190/200 MM AEEAEXAPQ | 032 141 025 CX |
| (1) | clutch pressure plate 200 MM AFT,AKS 200 MM AFTAKS | 067 141 026 HX |
| (1) | clutch pressure plate 210 MM ADY,AEP,AGG 210 MM ADYAEPAGG | 027 141 026 C |
| (1) | clutch pressure plate 200 MM 1 Y,AEY;ecomatic:1 Y 200 MM 1Y | 067 141 026 B |
| (1) | clutch pressure plate 210 MM AAM,AAZ,ACC,ADZ,ADY,AEP,AGG,AKRecomatic:AEY 210 MM AAMAAZACCADYADZAEPAEYAGG | 027 141 025 TX |
| (1) | clutch pressure plate 200 MM 1 Y,AEY;ecomatic:1 Y 200 MM 1Y | 067 141 026 BX |
| (1) | clutch pressure plate 210 MM ADY,AEP,AGG 210 MM ADYAEPAGG | 027 141 026 CX |
| (11) | release shaftfor hydraulic clutchoperation AEY,1 Y 1YAEY | 028 141 701 |
| (19) | Balance weight also use:remove 400 GN 012 230 7 N 011 134 5533 798 1051 H 1 721 761 AAM,ACC,ADZ,ADY,AEE,AEP,AEX,AFT 400 GN 012 230 7 N 011 134 5533 798 1051 H 1 721 761 AAMACCADYADZAEEAEPAEXAFT | 020 141 781 C |
| (2) | Clutch plate 200 MM 1 Y,AEY;ecomatic:1 Y 200 MM 1Y | 068 141 037 F |
| (2) | Clutch plate 200 MM 1 Y,AEY;ecomatic:1 Y 200 MM 1Y | 068 141 037 FX |
| (2) | Clutch plate 200 MM AEE,AFT,AKS 200 MM AEEAFTAKS | 032 141 031 S |
| (2) | Clutch plate 190 MM AEX,APQ 190 MM AEXAPQ | 030 141 032 KX |
| (2) | Clutch plate 190 MM AEX,APQ 190 MM AEXAPQ | 030 141 032 K |
| (2) | Clutch plate 210 MM AAM,ACC,ADZ 210 MM AAMACCADZ | 027 141 033 S |
| (2) | Clutch plate 200 MM AEE,AFT,AKS 200 MM AEEAFTAKS | 032 141 031 SX |
| (2) | Clutch plate 210 MM ADY,AEP,AGGAKR 210 MM ADYAEP | 027 141 033 TX |
| (2) | Clutch plate 210 MM AAM,ACC,ADZ 210 MM AAMACCADZ | 027 141 033 SX |
| (2) | Clutch plate 210 MM ADY,AEP,AGGAKR 210 MM ADYAEP | 027 141 033 T |
| (2) | Clutch plate 210 MM AAZ;ecomatic:AEY 210 MM | 068 141 037 M |
| (2) | Clutch plate 210 MM AAZ;ecomatic:AEY 210 MM | 068 141 037 MX |
| (3) | 1 set clutch parts 200 MM AEE 200 MM AEE | 032 198 141 AX |
| (3) | 1 set clutch parts 210 MM AAZecomatic:AEY 210 MM AEY | 028 198 141 FX |
| (3) | 1 set clutch parts 210 MM ADY,AEP,AGG,AKR 210 MM ADYAEPAGGAKR | 037 198 141 AX |
| (3) | 1 set clutch parts 210 MM AAM,ACC,ADZ 210 MM AAMACCADZ | 051 198 141 X |
| (3) | 1 set clutch parts 200 MM AFT,AKS 200 MM AFTAKS | 037 198 141 X |
| 1 | clutch pressure plate 190/200 MM AEE,AEX,APQ 190/200 MM AEEAEXAPQ | 032 141 025 C |
| 10 | release bearing | 020 141 165 G |
| 10 | release bearing | 020 141 165 H |
| 11 | release shaftfor mechanical clutchoperation AAM,ACC,ADZ,AEP,AEE,AEX,AFT,AAZ,AGG,ADY,AKR,AKS AAMAAZACCADYADZAEEAEPAEXAFTAGGAKRAKS | 020 141 701 N |
| 12 | clutch lever | 020 141 709 B |
| 12 | clutch lever | 02K 141 709 A |
| 13 | securing clip | 020 141 710 A |
| 14 | torsion spring | 020 141 723 C |
| 15 | Stop buffer | 020 141 726 A |
| 16 | radial shaft seal 27 X 8,7 27 X 8,7 | 020 141 733 |
| 17 | push rod | 020 141 741 B |
| 18 | Locking fluid | D 000 600 A2 |
| 19 | Balance weight see illustration: 190 G 721-025 AAM,ACC,ADZ,ADY,AEE,AEP,AEX, 190 G 721-025 AAMACCADYADZAEEAEPAEX | 1H1 721 761 |
| 20 | Grease for clutchplate splines 80 G 80 G | G 000 100 |
| 3 | 1 set clutch parts 190 MM/200 MM AEX,APQ 190 MM/200 MM AEXAPQ | 030 198 141 CX |
| 4 | Intermediate plate | 055 141 069 C |
| 5 | Hexagon bolt M 10 X 1 X 19,5 M 10 X 1 X 19,5 | N 902 061 03 |
| 6 | thrust plate | 055 141 124 F |
| 6 | thrust plate | 055 141 124 H |
| 7 | Retaining ring | 055 141 130 F |
| 8 | 12-point head bolt M 7 X 40 X 20 M 7 X 40 X 20 | N 100 134 01 |
| 9 | End cap | 020 141 073 A |
