Coupling — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Coupling

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 40 Primary OEM: 038 141 025 PX, 044 141 025, 038 141 025 P

Coupling for the Volkswagen Golf Mk3 (1997): factory exploded diagram 141030 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 39 OEM part numbers across 40 catalogued positions including 038 141 025 PX, 044 141 025 and 038 141 025 P. Parts on this plate carry the engine codes 1Z, AAA, ABF, AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 39 OEM part numbers across 40 numbered positions.

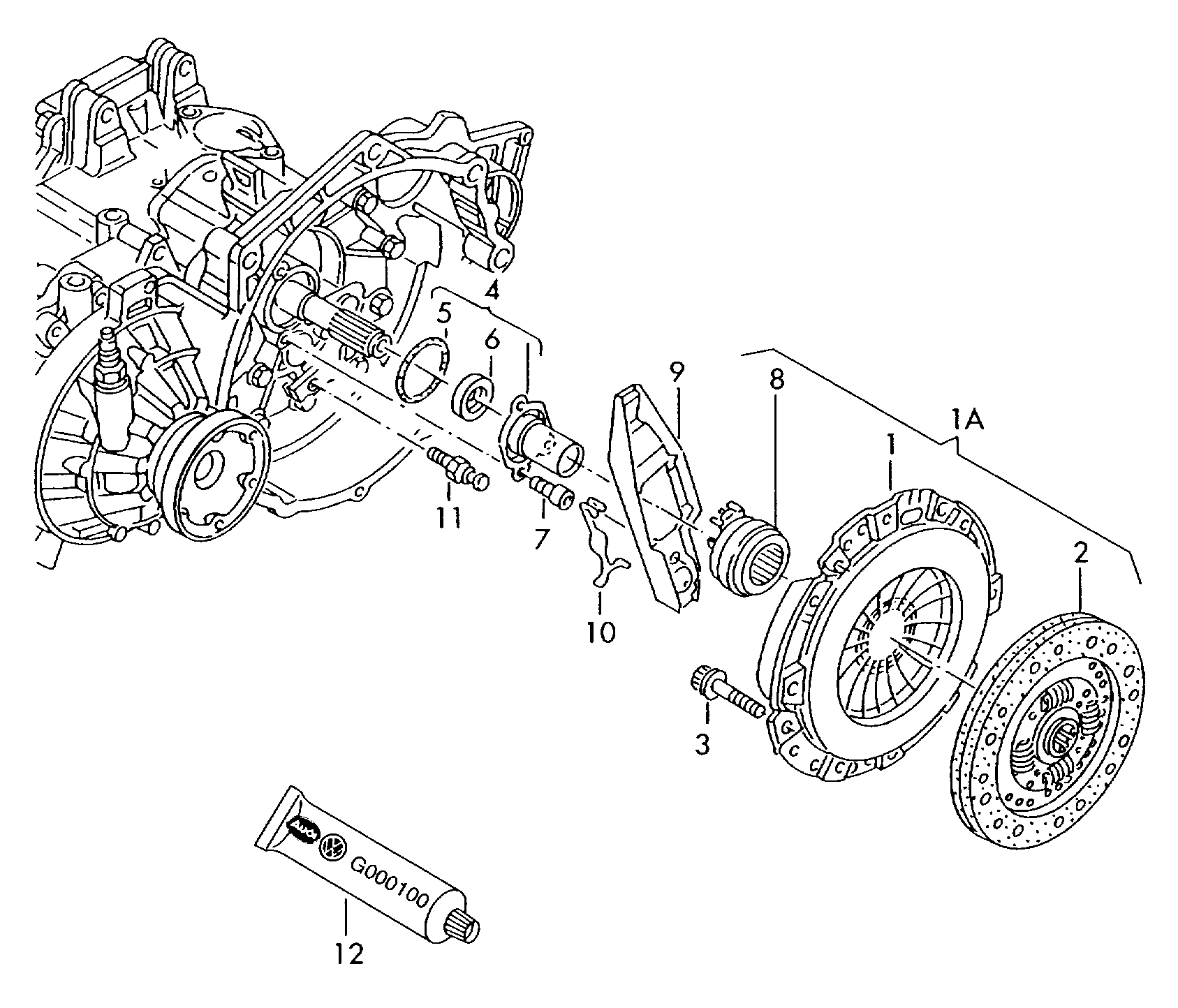

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coupling 2.8 Ltr.2.0 Ltr.1.9 ltr. 6-cylinder+AAA;4-cylinder+ABF;Diesel eng.+1 Z,AHU,AFNALE 2.8 Ltr.2.0 Ltr.1.9 ltr. AHU	—
(1)	clutch pressure plate only to be used for: 225 MM 038 105 264 E AFN 225 MM 038 105 264 E AFN	038 141 025 PX
(1)	clutch pressure plate 228 MM ABF,1 Z,AHU 228 MM 1ZABFAHU	044 141 025
(1)	clutch pressure plate only to be used for: 225 MM 038 105 264 E AFN 225 MM 038 105 264 E AFN	038 141 025 P
(1)	clutch pressure plate 220 MM LUK AFN 220 MM LUK AFN	028 141 025 PX
(1)	clutch pressure plate 228 MM ABF,1 Z,AHU,ALE 228 MM 1ZABFAHUALE	074 141 025 B
(1)	clutch pressure plate 228 MM AAA 228 MM AAA	021 141 025 FX
(1)	clutch pressure plate 228 MM AAA 228 MM AAA	021 141 025 F
(1)	clutch pressure plate 228 MM ABF,1 Z,AHU,ALE 228 MM 1ZABFAHUALE	044 141 025 X
(12)	Grease for clutchplate splines 80 G 80 G	G 000 100
(1A)	1 set clutch parts 220 MM AFN 220 MM AFN	038 198 141 X
(1A)	1 set clutch parts 228 MM AAA 228 MM AAA	021 198 141 AX
(1A)	1 set clutch parts 228 MM ABF 228 MM ABF	037 198 141 BX
(2)	Clutch plate 228 MM AAA 228 MM AAA	021 141 031 CX
(2)	Clutch plate 228 MM 1 Z,AHU,ALE 228 MM 1ZAHUALE	028 141 035 C
(2)	Clutch plate 228 MM ABF 228 MM ABF	037 141 032 L
(2)	Clutch plate 228 MM ABF 228 MM ABF	037 141 032 LX
(2)	Clutch plate only to be used for: 225 MM 038 105 264 E AFN 225 MM 038 105 264 E AFN	038 141 032 EX
(2)	Clutch plate 228 MM 1 Z,AHU 228 MM 1ZAHU	028 141 035 B
(2)	Clutch plate 219 MM AFN 219 MM AFN	028 141 035 LX
(2)	Clutch plate 228 MM 1 Z,AHU,ALE 228 MM 1ZAHUALE	028 141 035 BX
(2)	Clutch plate 228 MM AAA 228 MM AAA	021 141 031 C
(2)	Clutch plate only to be used for: 225 MM 038 105 264 E AFN 225 MM 038 105 264 E AFN	038 141 032 E
(3)	Socket head bolt with innermultipoint head M 6 X 13 AFN M 6 X 13 AFN	N 907 253 01
(4)	guide sleeve	02A 141 180 A
1	clutch pressure plate 220 MM LUK AFN 220 MM LUK AFN	028 141 025 P
10	retaining spring	012 141 741
11	Ball stud	02A 141 777
1A	1 set clutch parts 228 MM 1 Z,AHU,ALE 228 MM 1ZAHUALE	038 198 141 AX
2	Clutch plate 219 MM LUK AFN 219 MM LUK AFN	028 141 036 LX
2	Clutch plate 219 MM LUK AFN 219 MM LUK AFN	028 141 036 L
2	Clutch plate 219 MM AFN 219 MM AFN	028 141 035 L
3	12-point head bolt M 7 X 26 X 15 1 Z,AHU,ALE,ABF,AAA M 7 X 26 X 15 1ZAAAABFAHUALE	N 101 010 01
5	Shaft oil seal 21,8 X 35 X 7 21,8 X 35 X 7	085 311 113
7	Socket head bolt with innermultipoint head M 7 X 14 M 7 X 14	N 903 554 04
8	release bearing	02A 141 165 A
8	release bearing	02A 141 165 G
9	clutch lever	02A 141 709 A
9	clutch operating lever	02J 141 719 B
9	clutch operating lever	02J 141 719
