Differentialfinal drive oil coolerfor 4 speed automatic — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Pinion gear set. Differential. 4 & 5-speed manual gearbox

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 59 Primary OEM: 096 409 285 B, 01M 409 285 A, 01M 409 253

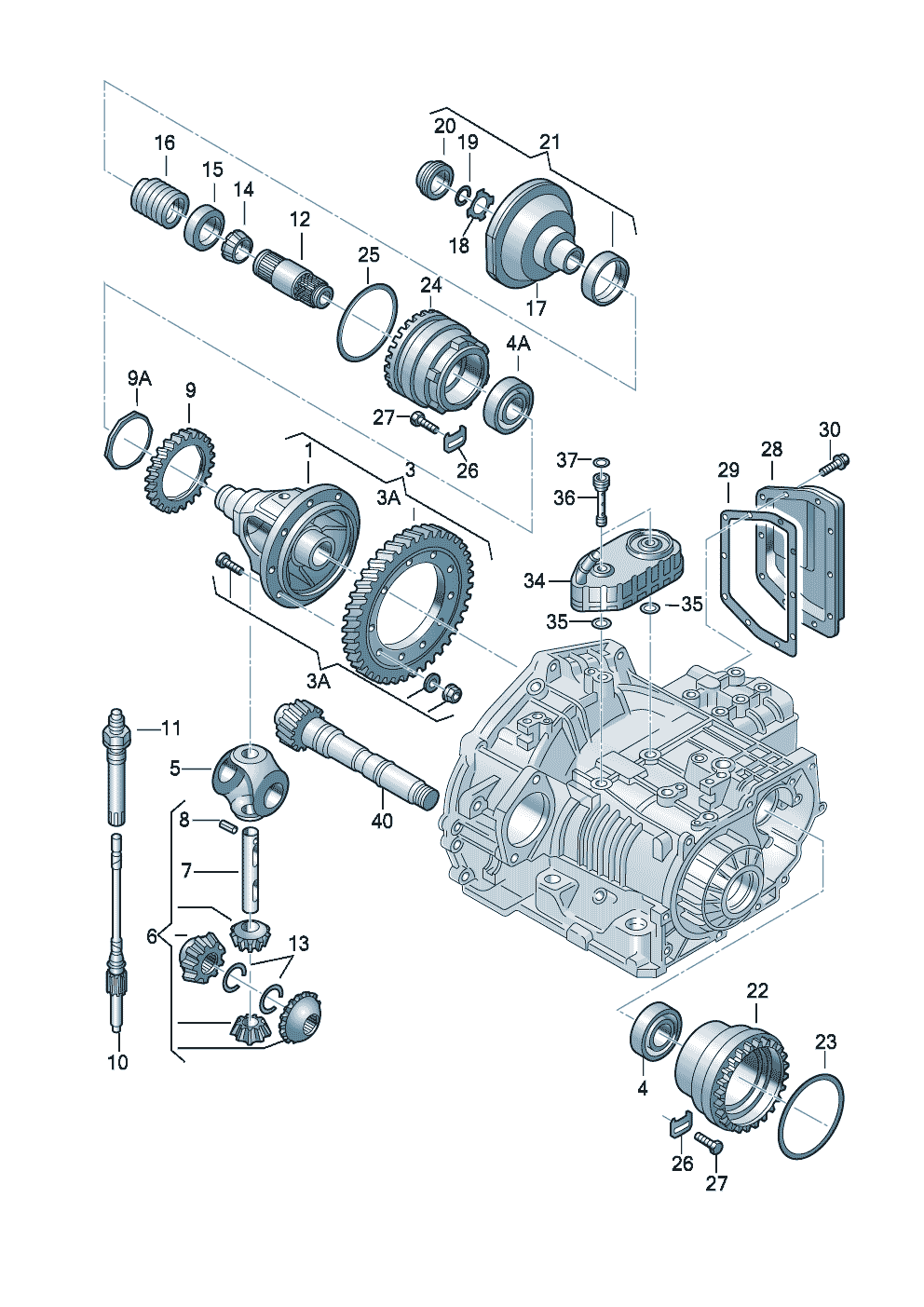

Differentialfinal drive oil coolerfor 4 speed automatic for the Volkswagen Golf Mk3 (1997): factory exploded diagram 409050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 56 OEM part numbers across 59 catalogued positions including 096 409 285 B, 01M 409 285 A and 01M 409 253. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 56 OEM part numbers across 59 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Differentialfinal drive Oil coolerfor 4-speed automatic gearbox CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL,DLV,DNR,DLX,DLZ,DNS,DMA,DNT,DMB	—
(17)	Drive flange 122 MM CKX,CKZ,CLK,DAB,DKR,DKS 122 MM	096 409 285 B
(17)	Drive flange 122 MM CKX,CKZ,CLK,DAB,DKR,DKS,DLV,DNR,DLX,DLZ,DNS,DMB 122 MM	01M 409 285 A
(24)	bearing ring G 07 07 7>>	01M 409 253
(3)	Balancer housing withoutput gear Z=77 CKX,DKR Z=77	096 409 111 R
(3)	Balancer housing withoutput gear G >> 06 07 7 also use: Z=77002 517 18501 M 409 117 A 01 M 409 25301 M 409 28501 M 409 285 A CKX,DKR,DLV,DNR Z=77002 517 18501 M 409 117 A 01 M 409 25301 M 409 28501 M 409 285 A	096 409 111 AL
(3)	Balancer housing withoutput gear G 07 07 7>> Z=77 CKX,DKR,DLV,DNR Z=77	096 409 111 AL
(3)	Balancer housing withoutput gear G >> 06 07 7 also use: Z=74002 517 18501 M 409 117 A 01 M 409 285 A CLB,DLL,DMA,DNT Z=74002 517 18501 M 409 117 A 01 M 409 285 A	096 409 111 AH
(3)	Balancer housing withoutput gear G 07 07 7>> Z=74 CLB,DLL,DMA,DNT Z=74	096 409 111 AH
(3)	Balancer housing withoutput gear G >> 06 07 7 also use: Z=72002 517 18501 M 409 117 A 01 M 409 285 A CKZ,DAB,DLX,DMB Z=72002 517 18501 M 409 117 A 01 M 409 285 A	096 409 111 AK
(3)	Balancer housing withoutput gear Z=72 CKZ,DAB,DLX,DMB Z=72	096 409 111 AA
(3)	Balancer housing withoutput gear G 07 07 7>> Z=72 CKZ,DAB,DLX,DMB Z=72	096 409 111 AK
(3)	Balancer housing withoutput gear Z=74 CLB,DLL,DMA,DNT Z=74	096 409 111 T
1	Differential housing	096 409 121 A
10	speedometer pinion Z=13 Z=13	095 409 197 A
11	Pinion bearing	095 409 193 B
12	Output shaft	020 409 291 B
13	Securing ring 22 X 2 22 X 2	020 409 299
14	tapered ring	020 409 374
15	thrust washer	020 409 378
16	Pressure spring	020 409 379 B
17	Drive flange 100 MM CLB,DLL,DMA,DNT 100 MM	01M 409 285
17	Drive flange 100 MM CLB,DLL 100 MM	096 409 285 A
18	Belleville spring	020 409 295
19	snap ring	020 409 297
20	End cap	020 409 289 B
21	repair kit forjoint flange	020 498 085 G
22	Bearing housing also use: 002 517 18501 M 409 25301 M 409 28501 M 409 285 A 096 409 111 AF 096 409 111 AL 096 409 111 AH 096 409 111 AK CLK,DKS,DLZ,DNSCKX,DKR,DLV,DNRCLB,DLL,DMA,DNTCKZ,DAB,DLX,DMB 002 517 18501 M 409 25301 M 409 28501 M 409 285 A 096 409 111 AF 096 409 111 AL 096 409 111 AH 096 409 111 AK	01M 409 117 A
22	Bearing housing	096 409 117 C
23	O-ring 98 X 3 98 X 3	095 409 528
24	bearing ring	096 409 253 B
24	bearing ring G >> 06 07 7 also use: 01 M 409 285 01 M 409 285	01M 409 253
25	O-ring 92 X 3 92 X 3	095 409 259
26	Retaining plate	095 409 669 A
27	Hexagon bolt M 6 X 15 M 6 X 15	N 904 407 01
28	Cover	095 409 581 A
29	Seal	095 409 597 A
3	Balancer housing withoutput gear Z=76 CLK,DKS Z=76	096 409 111 S
3	Balancer housing withoutput gear also use: Z=76002 517 18501 M 409 117 A 01 M 409 285 A CLK,DKS,DLZ,DNS Z=76002 517 18501 M 409 117 A 01 M 409 285 A	096 409 111 AF
30	Hex collared bolt M 8 X 16 M 8 X 16	N 903 285 02
34	Oil cooler	096 409 061 C
34	Oil cooler	096 409 061 E
35	O-ring 13 X 2,5 13 X 2,5	089 409 069
36	Banjo bolt	096 409 067 A
36	Banjo bolt	01M 409 067 C
37	O-ring 12,5 X 3,5 12,5 X 3,5	096 409 069 A
3A	1 set fixing parts foroutput wheel on differentialcasing No longer available	—
4	Taper roller bearing G >> 06 07 7 41 X 68 X 17,6 41 X 68 X 17,6	113 517 185 C
4	Taper roller bearing G 07 07 7>> 46 X 75 X 18 46 X 75 X 18	002 517 185
40	Output shaft see illustration: 323-070 323-070	—
4A	Taper roller bearing 41 X 68 X 17,6 41 X 68 X 17,6	113 517 185 C
5	Thrust washer assembly	02A 409 170
5	Thrust washer assembly	02J 409 170
6	1 set: differential pinions	096 498 081 A
6	1 set: differential pinions	096 498 081 B
7	shaft - differential pinion	095 409 177 A
8	Spring pin 5,4 X 28,5 5,4 X 28,5	N 905 387 01
9	Drive wheel speedometer Z=22 Z=22	095 409 187 B
9A	Tappet bushing	095 409 190

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 02 Gearbox
Factory subgroup: 409050
