Differentialpinion gear setfor 5 speed manual transmiss asd — Mk3 Golf Gearbox (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Pinion gear set. Differential. 4 & 5-speed manual gearbox

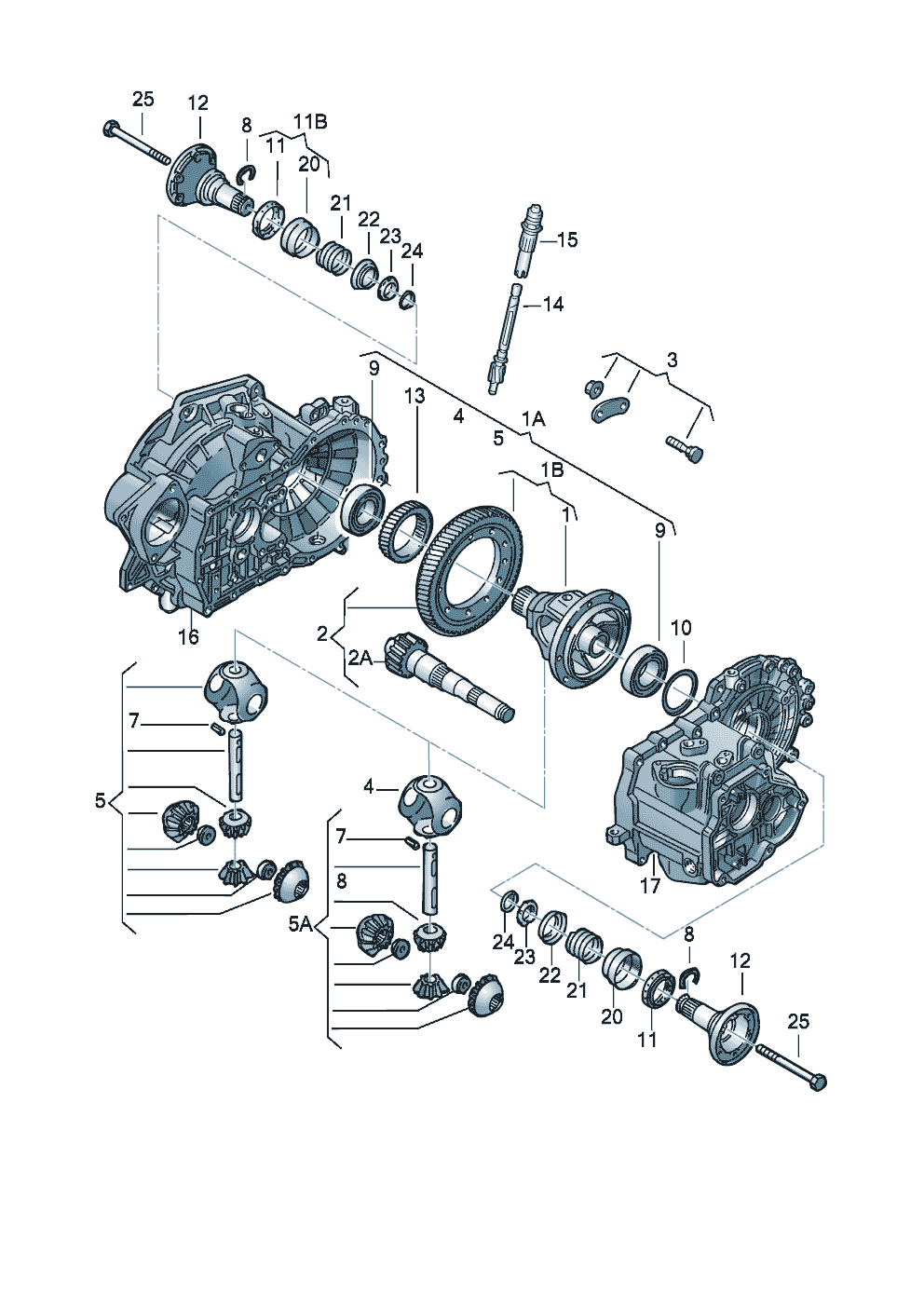

Differentialpinion gear setfor 5 speed manual transmiss asd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 409025 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 35 OEM part numbers across 38 catalogued positions including 02A 409 121 D, 02A 498 210 and 020 301 189 T. Parts on this plate carry the engine code ASD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 35 OEM part numbers across 38 numbered positions.
| № | Description | Part number |
|---|---|---|
| Differentialpinion gear setfor 5 speed manual transmiss. ASD,CTN,DPA,CCM,CDM,CYP ASD | — | |
| (1) | Differential housing also use: 020 409 37402 J 409 378 DPA,ASD,CTN,CYP 020 409 37402 J 409 378 ASD | 02A 409 121 D |
| (10) | 1 set shims 0,65-1,4 0,65-1,4 | 02A 498 210 |
| (11) | Shaft oil seal 50 X 65 X 10 DFQ 50 X 65 X 10 | 020 301 189 T |
| (11) | Shaft oil seal 48 X 62 X 7 DPA,ASD,CTN,CYP 48 X 62 X 7 ASD | 084 409 189 B |
| (12) | Flanged shaft 100 MM DPA,ASD,CTN,CYP 100 MM ASD | 02A 409 355 B |
| (2) | pinion gear set 62/17 CDM 62/17 | 02A 409 143 Q |
| (2) | pinion gear set 70/19 DPA 70/19 | 02A 409 143 L |
| (2) | pinion gear set 60/19 ASD 60/19 ASD | 02A 409 143 S |
| (2) | pinion gear set 60/19 CTN,CYP 60/19 | 02A 409 143 AB |
| (2) | pinion gear set 60/19 CTN,CYP 60/19 | 02A 409 143 S |
| (5) | 1 set: differential pinions DPA,ASD,CTN,CYP ASD | 02A 498 081 B |
| 1 | Differential housing CCM,CDM | 02A 409 121 A |
| 1 | Differential housing DPA,ASD,CTN,CYP ASD | 02A 409 121 B |
| 11 | Shaft oil seal 40 X 60 X 12 CCM 40 X 60 X 12 | 02A 301 189 |
| 12 | Flanged shaft 100 MM CCM,CDM 100 MM | 02A 409 355 A |
| 13 | Drive wheel speedometer Z=22 Z=22 | 02A 409 187 B |
| 14 | speedometer pinion Z=13 Z=13 | 02A 409 197 |
| 15 | guide for pinion | 02A 409 193 |
| 16 | clutch housing see illustration: 301-040 301-040 | — |
| 17 | Gear housing see illustration: 301-040 301-040 | — |
| 2 | pinion gear set 61/18 CCM 61/18 | 02A 409 143 P |
| 20 | Sleeve DPA,ASD,CTN,CYP ASD | 02A 301 192 |
| 21 | Pressure spring DPA,ASD,CTN,CYP ASD | 084 409 379 |
| 22 | thrust washer DPA,ASD,CTN,CYP ASD | 02A 409 378 |
| 23 | tapered ring DPA,ASD,CTN,CYP ASD | 02A 409 374 |
| 24 | snap ring 28,5 DPA,ASD,CTN,CYP 28,5 ASD | N 905 645 01 |
| 25 | Socket head bolt withhexagon socket head M 8 X 84,2 DPA,ASD,CTN,CYP M 8 X 84,2 ASD | 097 409 359 |
| 26 | flange shaft nut DPA,ASD,CTN,CYP ASD | 02A 409 373 |
| 3 | 1 set fixing parts foroutput wheel on differentialcasing | 02A 498 088 A |
| 4 | Thrust washer assembly CCM,CDM | 02J 409 170 |
| 4 | Thrust washer assembly | 02A 409 170 |
| 5 | 1 set: differential pinions DPA,ASD,CTN,CYP ASD | 02A 498 081 A |
| 5A | 1 set: differential pinions CCM,CDM | 02A 498 081 |
| 6 | shaft - differential pinion | 02A 409 177 C |
| 7 | Spring pin 5,4 X 28,5 5,4 X 28,5 | N 905 387 01 |
| 8 | snap ring CCM,CDM | 012 409 413 A |
| 9 | Taper roller bearing 41 X 68 X 17,6 41 X 68 X 17,6 | 113 517 185 C |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- ASD
- Factory group
- 02 Gearbox
- Factory subgroup
- 409025
