Forward reverse gear clutchplanet pinion carrier — Mk3 Golf Gearbox (1995)

Factory title: Volkswagen Golf (1995) - Planet pinion carrier. Converter. for 4-speed automatic gearbox. forward, reverse gear clutch

Generation: Mk3 1995 (RDW) Group: Gearbox Rebuild step 9 Parts: 103 Primary OEM: 095 398 391, 095 323 921 AD, 01M 323 921 D

Forward reverse gear clutchplanet pinion carrier for the Volkswagen Golf Mk3 (1995): factory exploded diagram 323050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 101 OEM part numbers across 103 catalogued positions including 095 398 391, 095 323 921 AD and 01M 323 921 D. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 101 OEM part numbers across 103 numbered positions.

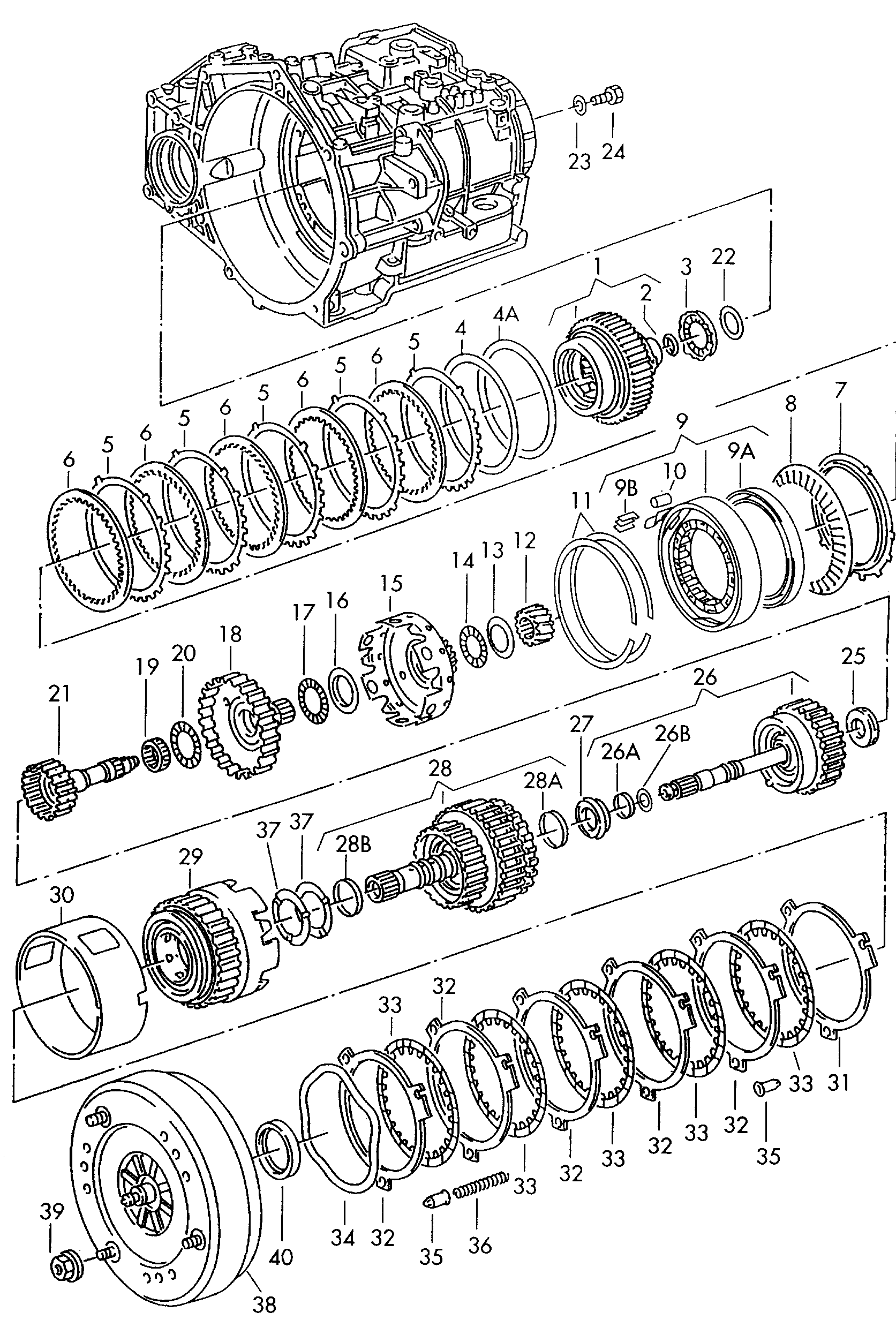

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	forward,reverse gear clutchplanet pinion carrier Converterfor 4-speed automatic gearbox CFH,CFK,CFF,CRR,CNK,CSK,CNP,CKX,CKZ,CLK,CLB	—
(22)	1 set shims 1-1,9 1-1,9	095 398 391
(26)	Coupling CFH,CNK,CNP	095 323 921 AD
(26)	Coupling CKZ,CLB	01M 323 921 D
(26)	Coupling also use: 01 M 323 205 CX CKZ,CLB 01 M 323 205 CX	01M 323 921 DX
(26)	Coupling also use: 01 M 323 205 CX CKX,CLK 01 M 323 205 CX	01M 323 921 CX
(26)	Coupling CKZ,CLB	01M 323 921 BX
(26)	Coupling CKZ,CLB	01M 323 921 B
(26)	Coupling CKX,CLK	01M 323 921 AX
(26)	Coupling CKX,CLK	01M 323 921 A
(26)	Coupling CFF	095 323 922 BX
(26)	Coupling CFF	095 323 921 AE
(26)	Coupling CFH,CNK,CNP	095 323 922 AX
(26A)	piston ring 30 MM CKX,CLK,CKZ,CLB 30 MM	095 323 557 B
(28)	Coupling CFH,CFF,CNK,CNP	095 323 205 JX
(28)	Coupling CFH,CFF,CNK,CNP	095 323 205 J
(28)	Coupling CKX,CLK,CKZ,CLB	01M 323 205 AX
(28)	Coupling CKX,CLK,CKZ,CLB	01M 323 205 A
(28)	Coupling CKX,CLK,CKZ,CLB	01M 323 205 DX
(28)	Coupling CKX,CLK,CKZ,CLB	01M 323 205 D
(29)	reverse gear clutch CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB	095 323 106 AX
(29)	reverse gear clutch CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB	095 323 105 AD
(30)	Support tube 64,9 CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB 64,9	097 323 455 B
(32)	external disc 2 CFK,CRR,CSK 2	097 323 463
(32)	external disc 2,5 2,5	097 323 463 B
(32)	external disc 2,25 2,25	097 323 463 A
(32)	external disc 2 2	097 323 463
(32)	external disc 2,75 2,75	097 323 463 G
(32)	external disc 3,75 3,75	097 323 463 F
(32)	external disc 3,5 3,5	097 323 463 E
(32)	external disc 3,25 3,25	097 323 463 D
(32)	external disc 3 3	097 323 463 C
(33)	Internal disc CFK,CRR,CSK	095 323 465 E
(36)	Pressure spring 65 MM CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB 65 MM	01M 323 505 B
(36)	Pressure spring 65 MM CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB 65 MM	097 323 505 A
(37)	1 set shims 1-1,8 1-1,8	095 398 140
(38)	Converter Code: QCDC,QCDB CKZ QCDC,QCDB	099 323 571 FX
(38)	Converter Code: QCCR CFF QCCR	095 323 571 L
(38)	Converter CLB	01M 323 571 D
(38)	Converter CKX,CLK	099 323 571 H
(38)	Converter Code: QADD,QADC,QADB CKX,CLK QADD,QADC,QADB	099 323 571 HX
(38)	Converter Code: QCDD,QCDC,QCDB CKZ QCDD,QCDC,QCDB	099 323 571 FX
(38)	Converter Code: QCDJ CLB QCDJ	099 323 571 JX
(38)	Converter CKZ	01M 323 571 G
(38)	Converter CKZ	099 323 571 F
(4)	1 set shims 1-1,9 1-1,9	095 398 208
(6)	Internal disc CFK,CRR,CSK	095 323 231 A
(7)	Pressure plate 13,5 CFK,CRR,CSK 13,5	095 323 297 D
1	planet pinion carrier	095 323 301 H
1	planet pinion carrier	095 323 301 Q
10	Cylinder roller 8 X 12 8 X 12	N 903 511 01
11	Securing ring	095 323 653
13	thrust washer	095 323 715
14	axial roller bearing 39 39	095 323 727 B
15	driving shell	095 323 329 P
15	driving shell	095 323 329 N
15	driving shell	095 323 329 K
16	thrust washer	095 323 714 A
17	axial roller bearing	095 323 708
18	Input shaftsun gear	095 323 901 B
19	Needle cage	095 323 907
2	O-ring 19 X 2,5 19 X 2,5	095 323 737
20	axial roller bearing	095 323 909
21	Input shaftplanet pinion carrier	095 323 911 F
23	Washer 8,2 X 18 X 2 8,2 X 18 X 2	N 901 076 04
24	Hexagon bolt M 8 X 22 M 8 X 22	N 010 241 18
24	Hexagon bolt M 8 X 22 M 8 X 22	N 010 241 15
25	axial bearing	095 323 919
25	axial bearing	095 323 919 B
26	Coupling CFK,CRR,CSK	095 323 921 AC
26	Coupling CFK,CRR,CSK	095 323 922 X
26A	piston ring 30 MM CKX,CLK,CKZ,CLB 30 MM	095 323 557 C
26A	piston ring 21 MM CFK,CRR,CSK,CFH,CNK,CNP,CFF 21 MM	095 323 570 A
26B	O-ring 30 X 2,5 CKX,CLK,CKZ,CLB 30 X 2,5	01M 323 255
27	axial bearing CFK,CRR,CSK,CFH,CNK,CNP,CFF	095 323 165
28	Coupling CFK,CRR,CSK	095 323 205 HX
28	Coupling CFK,CRR,CSK	095 323 205 H
28A	piston ring 28 MM CFK,CRR,CSK,CFH,CNK,CNP,CFF 28 MM	095 323 560
28B	piston ring 30 MM CFK,CRR,CSK,CFH,CNK,CNP,CFF 30 MM	095 323 557 B
29	reverse gear clutch CFK,CRR,CSK	095 323 105 AC
29	reverse gear clutch CFK,CRR,CSK	095 323 106 X
3	axial bearing	095 323 743 A
30	Support tube 72,3 CFK,CRR,CSK 72,3	097 323 455
31	external disc 3 3	097 323 463 C
32	external disc 2 CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB 2	097 323 463
33	Internal disc CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB	095 323 465 E
33	Internal disc CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB	095 323 465 D
34	Wave spring washer	095 323 471
35	Pot	097 323 515
36	Pressure spring 55,5 MM CFK,CRR,CSK 55,5 MM	095 323 505
36	Pressure spring 55,5 MM CFK,CRR,CSK 55,5 MM	01M 323 505
38	Converter CKX,CLK	01M 323 571
38	Converter Code: QACA CFH,CFK,CRR,CNK,CNP,CSK QACA	095 323 571 A
39	Hexagon nut M 10 X 1 M 10 X 1	N 101 692 01
40	radial shaft seal see illustration: 321-050 321-050	—
5	external disc CFH,CNK,CFF,CNP,CKX,CKZ,CLK,CLB;CFK,CRR,CSK	095 323 227 A
6	Internal disc CFH,CNK,CFF,CNP,CKX,CKZ,CLK,CLB	095 323 231 A
7	Pressure plate 10,5 CFH,CFF,CNK,CNP,CKX,CKZ,CLK,CLB 10,5	095 323 297 B
8	Belleville spring(internal gears)	095 323 295 A
9	1.gear-freewheel	095 323 383
9A	piston	095 323 479
9A	piston	095 323 479 B
9B	Spring	095 323 643
