Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Gear change components valve chestfor 4 speed automatic — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Gear housing. for 4-speed automatic gearbox

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 10 Primary OEM: 096 321 488, 096 321 370, 01M 321 025 EX

Gear change components valve chestfor 4 speed automatic for the Volkswagen Golf Mk3 (1997): factory exploded diagram 321075 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 9 OEM part numbers across 10 catalogued positions including 096 321 488, 096 321 370 and 01M 321 025 EX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 9 OEM part numbers across 10 numbered positions.

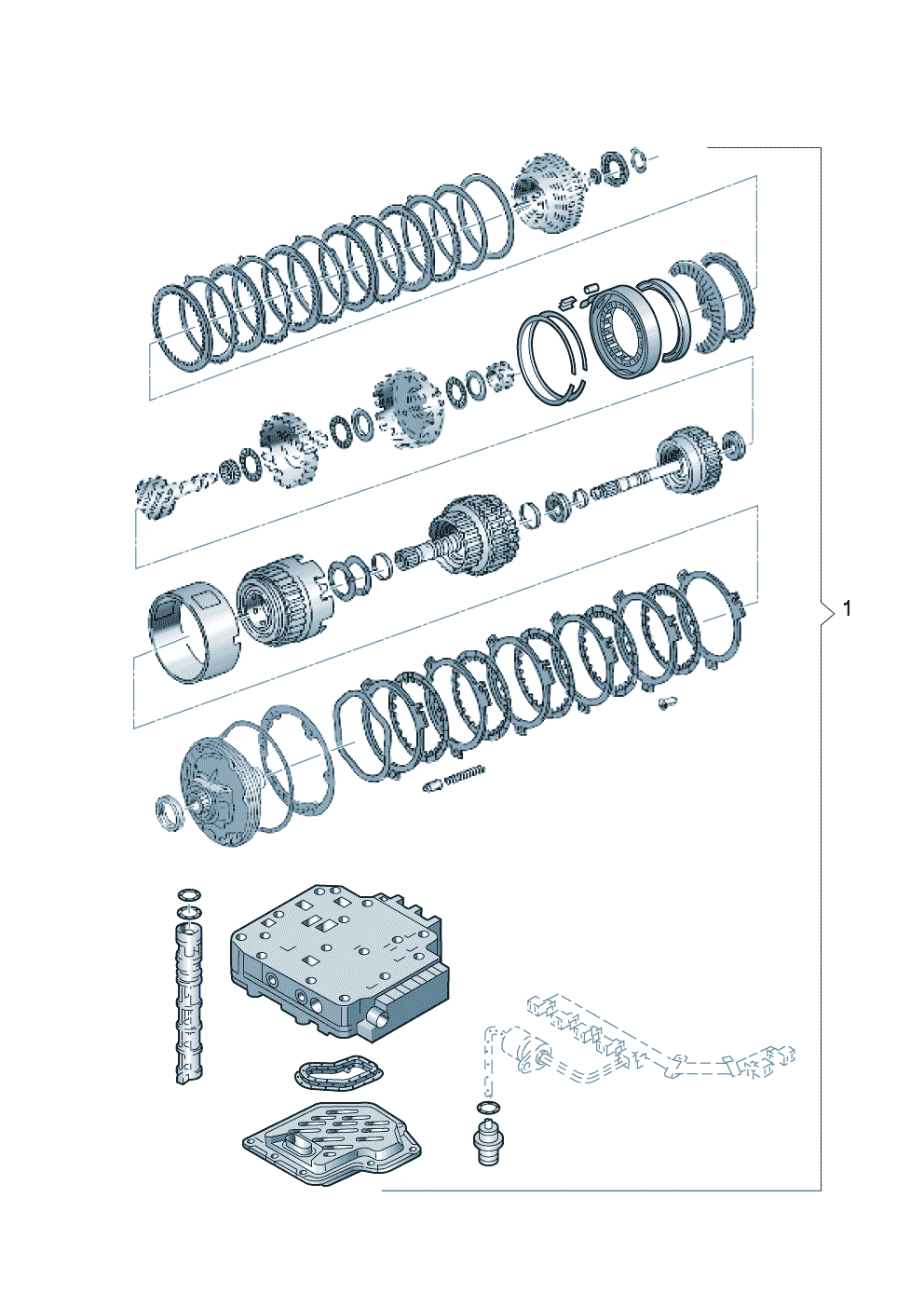

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	gear change componentswith valve chestfor 4-speed automatic gearbox CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL,DLV,DNR,DLX,DLZ,DNS,DMA,DNT,DMB	—
-	Seal	096 321 488
-	Seal	096 321 370
(1)	gear change componentswith valve chest also use: also use: 096 321 370096 321 488 >>D 13.12.1999 DLX,DMA,DNT 096 321 370096 321 488 >>D 13.12.1999	01M 321 025 EX
(1)	gear change componentswith valve chest also use: also use: 096 321 370096 321 488 >>D 13.12.1999 DLV,DNR 096 321 370096 321 488 >>D 13.12.1999	01M 321 025 CX
(1)	gear change componentswith valve chest also use: also use: 096 321 370096 321 488 >>D 13.12.1999 DLZ,DNS 096 321 370096 321 488 >>D 13.12.1999	01M 321 025 DX
(1)	gear change componentswith valve chest also use: also use: 096 321 370096 321 488 >>D 13.12.1999 DAB 096 321 370096 321 488 >>D 13.12.1999	01M 321 025 BX
(1)	gear change componentswith valve chestfor 4-speed automatic gearbox also use: also use: 096 321 370096 321 488 >>D 13.12.1999 DMB 096 321 370096 321 488 >>D 13.12.1999	01M 321 025 FX
(1)	gear change componentswith valve chest also use: also use: 096 321 370096 321 488 >>D 13.12.1999 CKZ,CLB,DLL 096 321 370096 321 488 >>D 13.12.1999	01M 321 025 AX
1	gear change componentswith valve chest also use: also use: 096 321 370096 321 488 >>D 13.12.1999 CKX,DKR,CLK,DKS 096 321 370096 321 488 >>D 13.12.1999	01M 321 025 X

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 02 Gearbox
Factory subgroup: 321075

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

Shift rodselector shaft selector forkfor 5 speed manual 1992 · subgroup 311082
Gears shaftsfor 5 speed manual transmiss 1992 · subgroup 311030
Mounting parts engine transmission 5 speed manual 1993 - 1996 · subgroup 300072
Forward reverse gear clutchplanet pinion carrier 1993 - 1996 · subgroup 323057
Output shaft drive wheelfor 4 speed automatic gearbox cfc 1993 - 1996 · subgroup 323070
4 speed automatic gearbox 1995 · subgroup 300050
Coupling 1995 · subgroup 141010
Gear housingfor 4 speed automatic gearbox cfh cfk cff crr 1995 · subgroup 321050

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gear change components valve chestfor 4 speed automatic diagram for the Mk3 Golf?: This diagram lists 9 OEM part numbers for the Mk3 Golf. The first three are 096 321 488, 096 321 370 and 01M 321 025 EX.
Which Mk3 Golf years and engines does this diagram cover?: This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?: The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
