Gear housing — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Gear housing

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 51 Primary OEM: 020 398 001 K, 020 398 001 L, 02K 301 555 A

Gear housing for the Volkswagen Golf Mk3 (1997): factory exploded diagram 301035 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 46 OEM part numbers across 51 catalogued positions including 020 398 001 K, 020 398 001 L and 02K 301 555 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 46 OEM part numbers across 51 numbered positions.

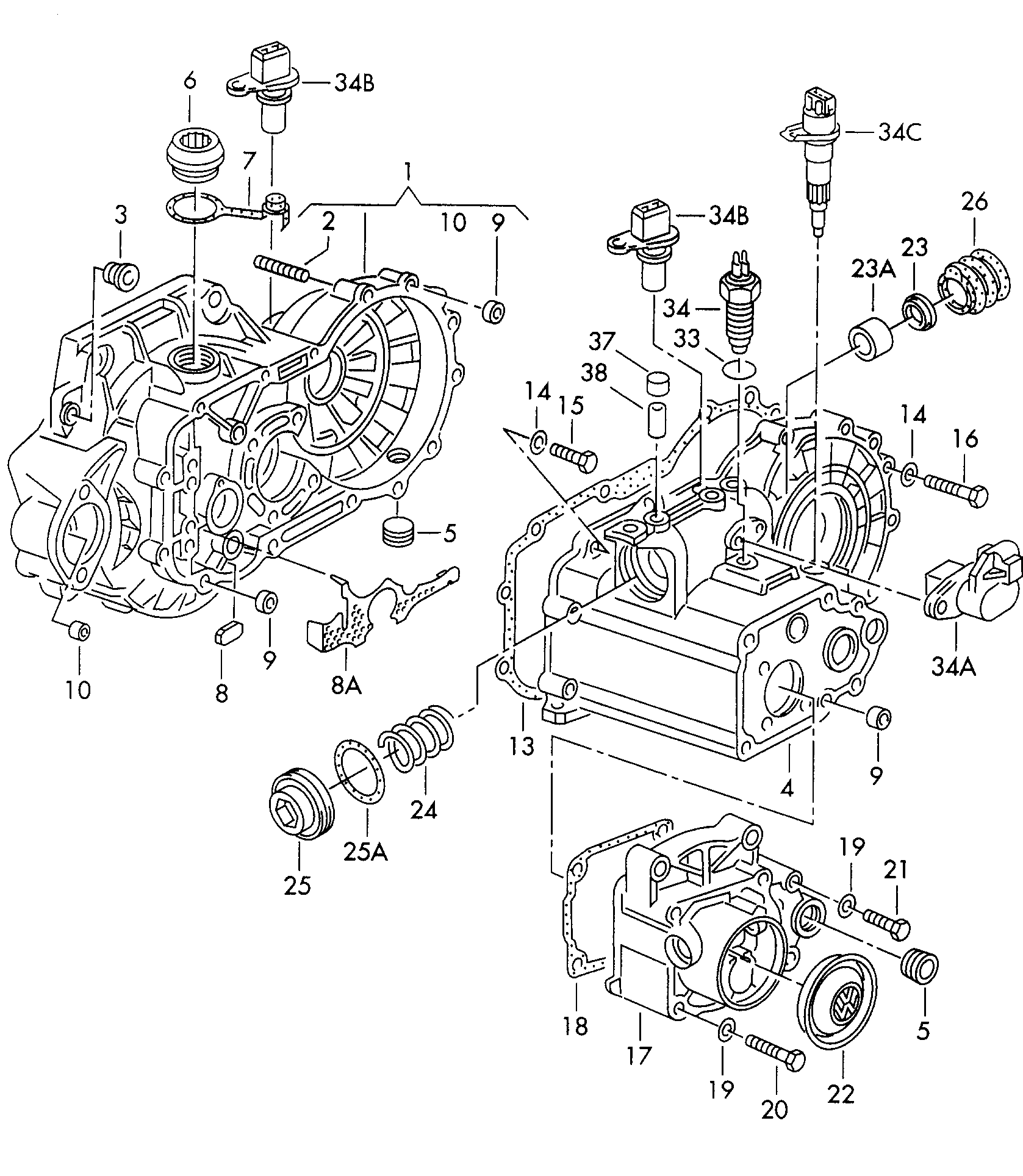

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
-
Gasket set for 5-speedmanual gearbox CHE,CRY,DFQ,DGE
 020 398 001 K
-
Gasket set for manualgearbox also use: 020 301 215 C 020 141 073 A CHD,CHB,CHC,DFP,DFN,CJF,CYZ,CQB,CYY,CZA,CZK,CYW,DFW,DGG,DGH,DFX,DMM,DGL,DGM,DFY
020 301 215 C 020 141 073 A
 020 398 001 L
-
oil strainer
 02K 301 555 A
-
oil strainer
 02K 301 555 A
-
oil strainer
 02K 301 555 A
-
oil strainer
 02K 301 555 A
(1)
clutch housing G 01 09 7>> also use: use if required: 068 103 648 K 028 905 256038 103 645 A 02 K 301 555 A CHE,CRY,DFQ,DGE
068 103 648 K 028 905 256038 103 645 A 02 K 301 555 A
 02K 301 071 C
(1)
clutch housing use if required: 02 K 301 555 A CZK,CJF,CYZ,CZA,DGM,DGG,DGH,DGL
02 K 301 555 A
 02K 301 071
(1)
clutch housing use if required: 02 K 301 555 A CYW,DFY
02 K 301 555 A
 020 301 071 P
(1)
clutch housing G >> 31 08 7 CHE,CRY,DFQ,DGE
 02K 301 071 C
(1)
clutch housing G >> 31 08 7 CHE,CRY,DFQ,DGE
 020 301 071 J
(4)
Gear housing CYW,DFY
 020 301 103 BE
(6)
sealing plug M 36 X 1,5
M 36 X 1,5
 020 301 129 D
1
clutch housing also use: use if required: >>G 13 093068 103 648 K 068 103 645 A 028 905 256068 103 621 E 02 K 301 555 A CHC,CHD,CHB,CQB,CYY,DFP,DFN,DFW,DFX,DMM
>>G 13 093068 103 648 K 068 103 645 A 028 905 256068 103 621 E 02 K 301 555 A
 02K 301 071
1
clutch housing CHC,CHD,CHB,CQB,CYY,DFP,DFN,DFW,DFX,DMM
 020 301 071 H
10
bush 11,06 X 13,63 X 14
11,06 X 13,63 X 14
 113 301 155
14
Washer 8,4 X 15 X 1,6
8,4 X 15 X 1,6
 N 011 558 11
15
Hexagon bolt M 8 X 35
M 8 X 35
 N 010 247 8
16
Hexagon bolt M 8 X 50
M 8 X 50
 N 040 262 2
17
Cover
 020 301 205 A
17
Cover
 020 301 211 C
19
Washer 8,4 X 15 X 1,6
8,4 X 15 X 1,6
 N 011 558 11
2
Threaded pin M 10 X 42
M 10 X 42
 N 014 503 4
20
Hexagon bolt M 8 X 85
M 8 X 85
 N 010 385 7
21
Hexagon bolt M 8 X 62
M 8 X 62
 N 010 377 1
22
End cap
 020 141 073 A
23
radial shaft seal 18 X 30 X 8
18 X 30 X 8
 020 301 227 F
23
radial shaft seal 18 X 30 X 8
18 X 30 X 8
 020 301 227 D
23A
Ball sleeve 18 X 24 X 22
18 X 24 X 22
 020 311 648
24
Pressure spring
 020 301 228 G
24
Pressure spring
 020 301 228 F
25
Cover M 60 X 1
M 60 X 1
 020 301 232 E
25A
O-ring 45,7 X 1,5
45,7 X 1,5
 N 903 543 01
26
Prot. sleeve for select. shaft
 020 301 261
33
seal ring see illustration: 919-060
919-060
 —
34
Switch see illustration: 919-060
919-060
 —
34A
Switch see illustration: 919-060 CYW,DFY
919-060
 —
34B
speed sender CYW,DFY
 —
34C
distance sensor see illustration: 919-000
919-000
 —
37
Cap for venting the gearbox
 014 301 485
38
Sleeve 12 X 30
12 X 30
 014 301 473
38
Sleeve 12 X 30
12 X 30
 012 301 474 A
4
Gear housing CHD,CHB,CHE,CHC,DFQ,CJF,CRY,CYZ,CZA,CZK,CQB,CYY,DFP,DFN,DFW,DFX,DGE,DGG,DGL,DGH,DMM,DGM
 020 301 103 AR
5
sealing plug M 24 X 1,5
M 24 X 1,5
 012 301 127 F
6
sealing plug M 36 X 1,5
M 36 X 1,5
 020 301 129 B
7
Cover cap
 020 301 132
8
Shaped magnet
 084 301 143 A
8A
oil strainer
 02K 301 555 A
8A
oil strainer
 02K 301 555
9
dowel sleeve 12 X 9,5
12 X 9,5
 02M 301 153
9
dowel sleeve 12 X 9,5
12 X 9,5
 020 301 153 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Factory group
02 Gearbox
Factory subgroup
301035

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gear housing diagram for the Mk3 Golf?
This diagram lists 46 OEM part numbers for the Mk3 Golf. The first three are 020 398 001 K, 020 398 001 L and 02K 301 555 A.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
