Gear housingfor 4 speed automatic gearbox ckx ckz clk clb — Mk3 Golf Gearbox (1995)

Factory title: Volkswagen Golf (1995) - Gear housing. for 4-speed automatic gearbox

Generation: Mk3 1995 (RDW) Group: Gearbox Rebuild step 9 Parts: 41 Primary OEM: 01M 398 001, N 013 811 5, N 103 378 03

Gear housingfor 4 speed automatic gearbox ckx ckz clk clb for the Volkswagen Golf Mk3 (1995): factory exploded diagram 321057 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 38 OEM part numbers across 41 catalogued positions including 01M 398 001, N 013 811 5 and N 103 378 03. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 38 OEM part numbers across 41 numbered positions.

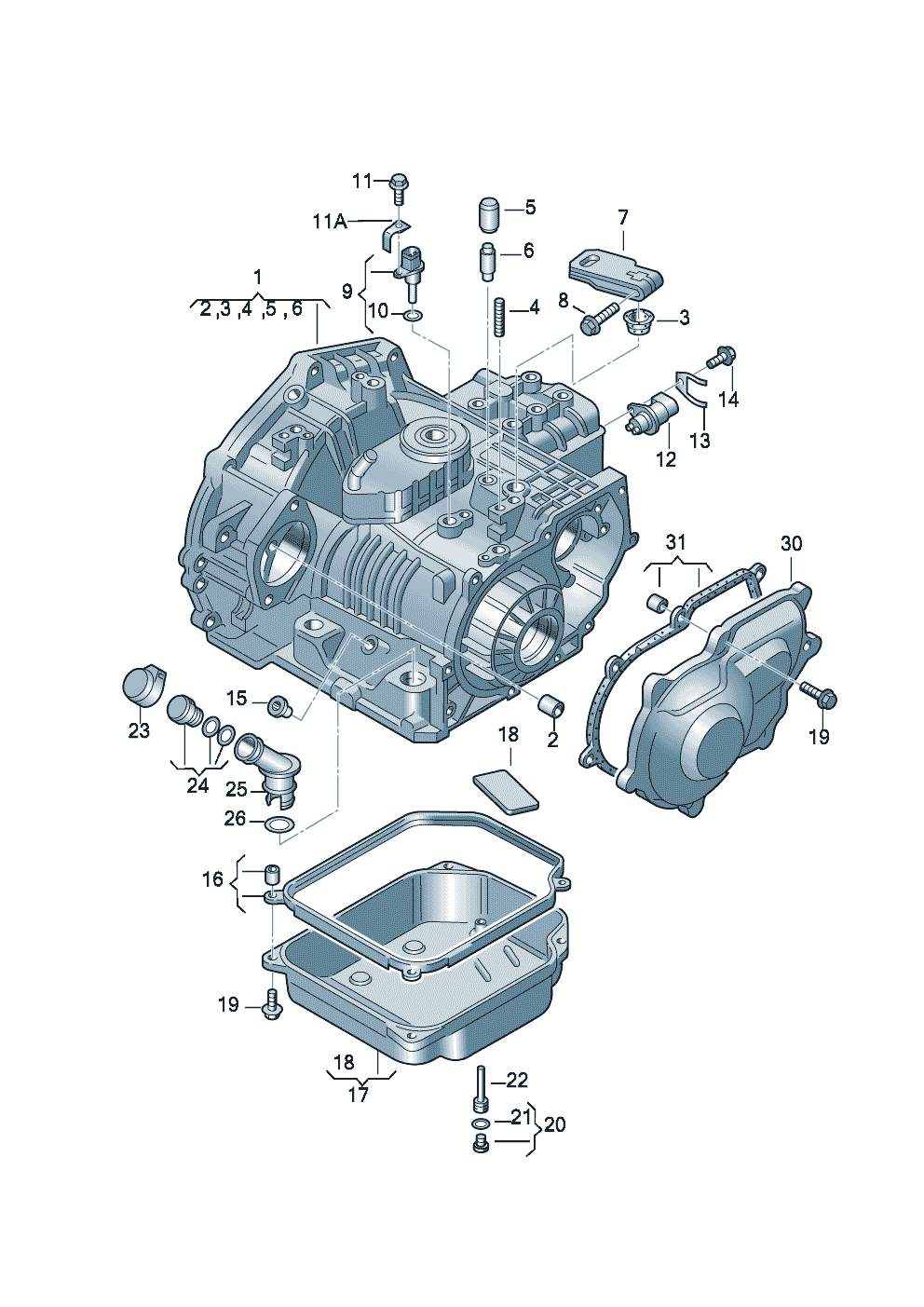

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Gear housingfor 4-speed automatic gearbox CKX,CKZ,CLK,CLB
 —
-
Gasket set for 4-speedautomatic gearbox
 01M 398 001
-
seal ring 10 X 13,5
10 X 13,5
 N 013 811 5
-
Hex collared bolt M 12 X 55
M 12 X 55
 N 103 378 03
-
Taper roller bearing 41 X 72 X 17,6
41 X 72 X 17,6
 01M 323 981 A
-
sealing grease for radialshaft oil seal 50 G
50 G
 G 052 128 A1
1
Gear housing CKX,CKZ,CLK
 01M 321 101
1
Gear housing also use: 01 M 323 981 AN 103 378 03 CLB
01 M 323 981 AN 103 378 03
 01M 321 101 J
1
Gear housing CLB
 01M 321 101 A
1
Gear housing also use: 01 M 323 981 A CKX,CKZ,CLK
01 M 323 981 A
 01M 321 101 H
10
O-ring 11 X 3
11 X 3
 095 321 559
11
Hexagon bolt M 6 X 15
M 6 X 15
 N 904 407 01
12
multi-function switch forautomatic gearbox see illustration: 927-050
927-050
 —
13
Bracket
 097 321 527
14
Hex collared bolt M 6 X 20
M 6 X 20
 N 902 803 02
14
hexagon head bolt (combi) M 6 X 20
M 6 X 20
 N 905 330 02
15
Seal bolt with sealingring M 10 X 1
M 10 X 1
 N 904 142 01
16
Seal
 096 321 370
17
Transmission oil sump
 01M 321 359
18
Magnet
 097 321 368
19
hexagon head bolt (combi) M 6 X 20
M 6 X 20
 N 905 330 02
2
bush 11,06 X 13,63 X 14
11,06 X 13,63 X 14
 113 301 155
20
Seal bolt with sealingring M 10 X 1
M 10 X 1
 N 904 142 01
21
seal ring 10 X 13,5
10 X 13,5
 N 013 811 5
21
seal ring A 10 X 14
A 10 X 14
 N 013 806 4
22
oil pipe 27 MM
27 MM
 096 321 363
23
Cap closure
 01M 321 435 B
24
Bungs
 01M 321 432 A
25
oil filler pipe
 01M 321 407
26
O-ring 17,5 X 3,5
17,5 X 3,5
 003 321 419 B
26
O-ring 17,5 X 3,5
17,5 X 3,5
 003 321 419 A
3
seal ring
 095 321 182 B
30
Cover
 096 321 491 B
30
Cover
 096 321 490
31
Seal
 096 321 488
4
Threaded pin M 8 X 35
M 8 X 35
 N 014 400 4
5
Cap for venting the gearbox
 095 409 841
6
Breather line 9,1 X 23 X 8,1
9,1 X 23 X 8,1
 010 409 847
7
lever
 095 321 171 A
8
Hexagon bolt M 6 X 32
M 6 X 32
 N 904 416 01
9
speed sender see illustration: 927-050
927-050
 —

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1995
Generation region
RDW
Generation code
159
Factory group
02 Gearbox
Factory subgroup
321057

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gear housingfor 4 speed automatic gearbox ckx ckz clk clb diagram for the Mk3 Golf?
This diagram lists 38 OEM part numbers for the Mk3 Golf. The first three are 01M 398 001, N 013 811 5 and N 103 378 03.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1995 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
