Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Gear housingfor 4 speed automatic gearbox cnk crr csk cnp — Mk3 Golf Gearbox (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Gear housing. for 4-speed automatic gearbox

Generation: Mk3 1994 - 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 56 Primary OEM: 097 321 368, 096 398 001 A, 096 321 101 AF

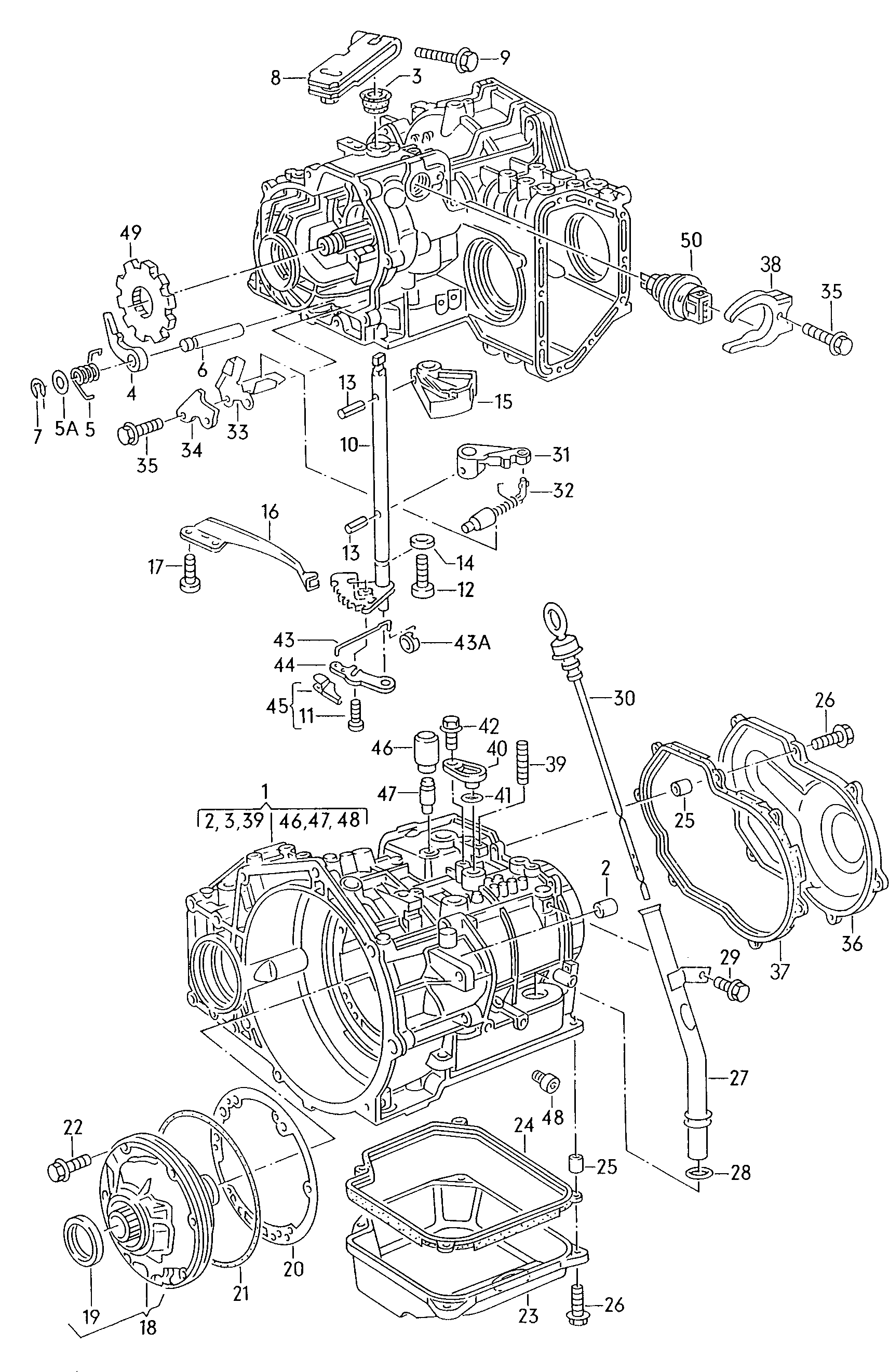

Gear housingfor 4 speed automatic gearbox cnk crr csk cnp for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 321050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 47 OEM part numbers across 56 catalogued positions including 097 321 368, 096 398 001 A and 096 321 101 AF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 47 OEM part numbers across 56 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Gear housingfor 4-speed automatic gearbox CNK,CRR,CSK,CNP	—
-	Magnet G 05 04 4>>	097 321 368
-	axle oilfor automatic gearboxsee workshop manual	—
-	Gasket set for 4-speedautomatic gearbox	096 398 001 A
1	Gear housing	096 321 101 AF
10	shift rod	096 321 173 C
12	fillister head bolt withallen key head M 6 X 15 M 6 X 15	N 100 292 01
13	Spring pin 5,15 X 24 5,15 X 24	N 905 487 01
14	Washer 6,5 X 21 X 2 6,5 X 21 X 2	N 011 550 1
15	shift segment	096 321 190
16	detent spring	096 321 221
17	Locating bolt M 6 X 6 X 15 M 6 X 6 X 15	N 904 800 01
18	oil pump see illustration: 321-055 321-055	—
19	radial shaft seal see illustration: 321-055 321-055	—
2	bush 11,06 X 13,63 X 14 11,06 X 13,63 X 14	113 301 155
20	Seal see illustration: 321-055 321-055	—
21	O-ring see illustration: 321-055 321-055	—
22	Hexagon bolt see illustration: 321-055 321-055	—
23	Transmission oil sump	096 321 359 C
24	Seal	096 321 370
25	Sleeve	095 321 495
26	Hex collared bolt M 6 X 20 M 6 X 20	N 902 803 02
26	hexagon head bolt (combi) M 6 X 20 M 6 X 20	N 905 330 02
27	oil filler pipe	096 321 405 E
28	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 A
28	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 B
29	Hexagon bolt M 6 X 15 M 6 X 15	N 904 407 01
3	seal ring	095 321 182 B
30	Oil dipstick	096 321 431 C
31	engaging lever	095 321 189 A
32	thrust piece	098 321 467 A
32	thrust piece	098 321 467
33	Guide plate	095 321 482 A
34	Support plate	095 321 485 B
35	hexagon head bolt (combi) M 6 X 20 M 6 X 20	N 905 330 02
36	Cover	096 321 491 B
36	Cover	096 321 490
37	Seal	096 321 488
38	Bracket	097 321 527
39	Threaded pin M 8 X 35 M 8 X 35	N 014 400 4
4	lever for parking lock	095 321 119 A
43	operating rod	095 325 279 C
44	lever	095 321 194 A
45	Retaining clip with screw	095 325 299
46	Cap for venting the gearbox	095 409 841
47	Breather line 9,1 X 23 X 8,1 9,1 X 23 X 8,1	010 409 847
48	Seal bolt with sealingring M 10 X 1 M 10 X 1	N 904 142 01
49	wheel-parking lock see illustration: 323-070 323-070	—
5	tension spring	095 321 121 D
5	tension spring	01M 321 121
50	multi-function switch forautomatic gearbox see illustration: 927-050 927-050	—
5A	thrust washer	095 323 313
6	pin - engagement lever	095 321 123 B
7	Retaining washer 10 10	N 012 441 2
8	lever	095 321 171 A
9	Hexagon bolt M 6 X 32 M 6 X 32	N 904 416 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 02 Gearbox
Factory subgroup: 321050
