Gear housingfor 4 speed manual gearbox ced — Mk3 Golf Gearbox (1996)

Factory title: Volkswagen Golf (1996) - Mounting parts for engine and transmission. for 4-speed automatic gearbox

Generation: Mk3 1996 (RDW) Group: Gearbox Rebuild step 9 Parts: 26 Primary OEM: N 011 696 1, N 040 338 1, 084 301 103 H

Gear housingfor 4 speed manual gearbox ced for the Volkswagen Golf Mk3 (1996): factory exploded diagram 301005 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 24 OEM part numbers across 26 catalogued positions including N 011 696 1, N 040 338 1 and 084 301 103 H. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 24 OEM part numbers across 26 numbered positions.

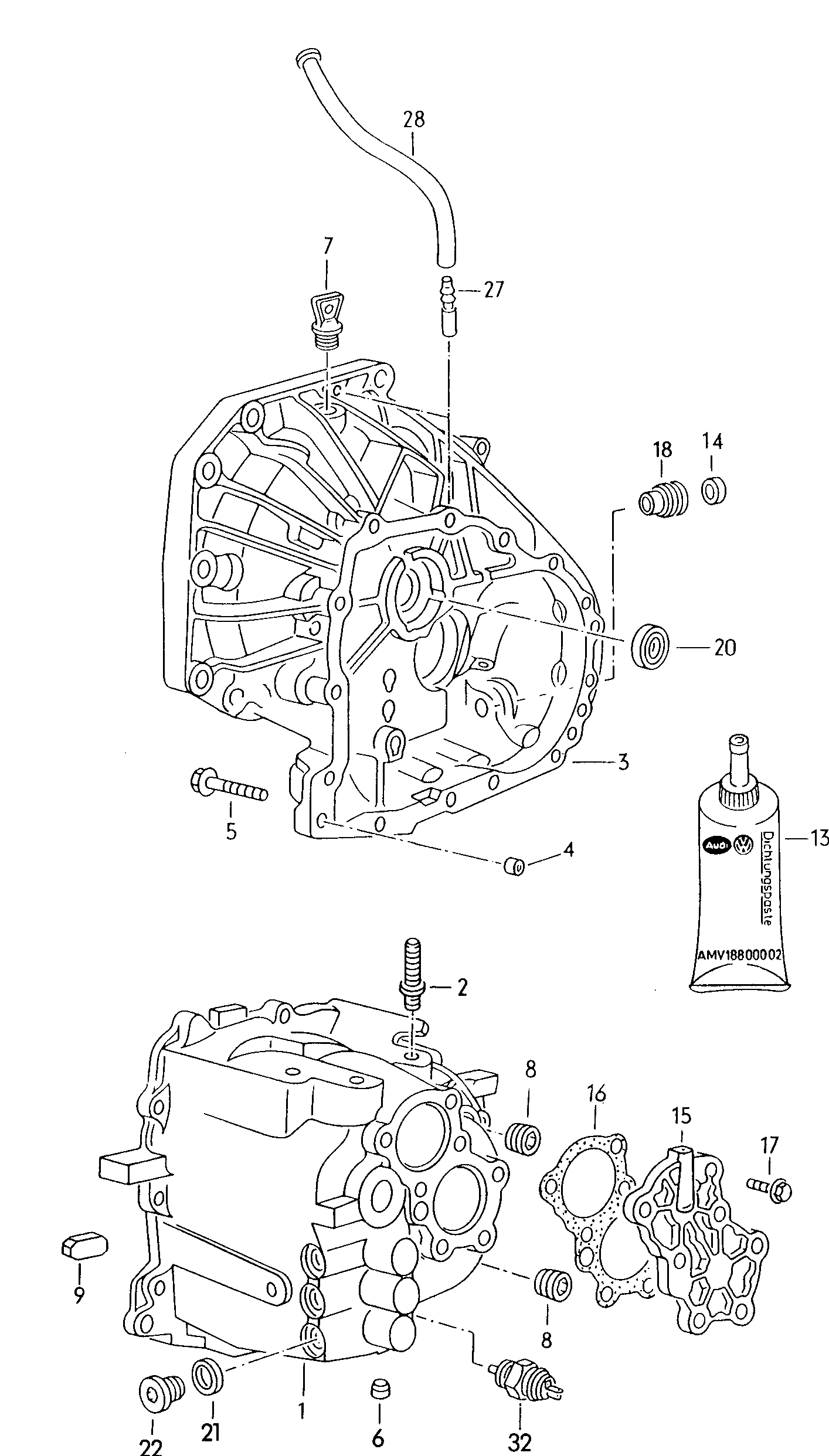

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Gear housingfor 4-speed manual gearbox CED
 —
-
Washer B 8,1 X 24 X 1,5
B 8,1 X 24 X 1,5
 N 011 696 1
-
Hexagon bolt M 12 X 58
M 12 X 58
 N 040 338 1
1
Gear housing
 084 301 103 H
13
Sealing compound paste 100 G
100 G
 AMV 188 200 03
14
radial shaft seal 24 X 7
24 X 7
 001 301 227
14
radial shaft seal 15 X 24 X 7
15 X 24 X 7
 085 301 227
15
Gearbox cover
 084 301 211 E
16
gasket for cover
 084 301 235 A
17
hexagon head bolt (combi)No longer available M 8 X 26
M 8 X 26
 —
18
guide bush
 001 301 209
20
Shaft oil seal 21,8 X 35 X 7
21,8 X 35 X 7
 085 311 113
21
seal ring
 084 311 719
22
sealing plug M 14 X 1,5
M 14 X 1,5
 N 016 027 5
27
ventilation union
 084 301 473 C
28
Breather line
 084 301 474
3
clutch housing
 084 301 107 R
3
clutch housing
 084 301 107 S
32
switch for reversing light
 084 941 521
4
dowel sleeve 12 X 9,5
12 X 9,5
 02M 301 153
4
dowel sleeve 12 X 9,5
12 X 9,5
 020 301 153 A
5
Hexagon bolt M 8 X 50
M 8 X 50
 N 040 262 2
6
Sealing cap
 019 301 115
7
Bungs
 084 301 115
8
sealing plug M 24 X 1,5
M 24 X 1,5
 012 301 127 F
9
Shaped magnet
 084 301 143 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1996
Generation region
RDW
Generation code
166
Factory group
02 Gearbox
Factory subgroup
301005

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gear housingfor 4 speed manual gearbox ced diagram for the Mk3 Golf?
This diagram lists 24 OEM part numbers for the Mk3 Golf. The first three are N 011 696 1, N 040 338 1 and 084 301 103 H.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1996 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
